Unlock the shaders - AMD Radeon RX 560D

[JonathanX64]

Hello!

I have MSI RX 460 OC 2gb. I want to unlock 1024 shaders and retain UEFI compatibility. What would be the best way to approach this?

I've tried to modify VBIOS using pattern provided by Pavle (thanks!) and then fix checksum using Polaris BIOS Editor. It unlocked GPU successfully (1024 in GPU-Z), but broke UEFI VBIOS.

I've been thinking about flashing VBIOS from a different card, but AMDflash on Windows does not allow that.

Is it possible to fix not only checksum, but also the cryptographic seal or whatever? Or should I try flashing firmware from a different card under Linux? Which card should I take firmware from?

Thanks.


Update from later today: I've flashed VBIOS from Sapphire's RX 560 2gb (for Hynix memory, from overclock.net's package), works like a charm; 1024 CUs @ 1300 MHz with properly working UEFI. I think card throttled under FurMark to 1100 MHz, either because of heat or because of 75W power limit. GeekBench 5 score went up significantly, to 25707! Glad I did that.



[pavle]

Sweet! A very good outcome!



[RJARRRPCGP]

I think card throttled under FurMark to 1100 MHz, either because of heat or because of 75W power limit. GeekBench 5 score went up significantly, to 25707! Glad I did that.

Does it not have an external power connector? If it doesn't, you'll be lucky to get 75 W. (like GeForce GT 640, where it's only slot-powered)



[JonathanX64]

Does it not have an external power connector? If it doesn't, you'll be lucky to get 75 W. (like GeForce GT 640, where it's only slot-powered)

No, mine does not. I think I saw up to 68-70W while running FurMark.

For me, higher CU count is more useful than higher clocks, so I'm fine with it.



[AlexTwP]

Olá,

Alguém aqui pode me ajudar a desbloqueá-lo para 1024 shaders completos

Anexei meu estoque de captura de tela do BIOS + GPUZ

Eu ficaria muito feliz se alguém desbloquear o BIOS.

Radeon™ RX 560 OC 4G (rev. 3.0) Key Features | Graphics Card - GIGABYTE India

Discover AORUS premium graphics cards, ft. WINDFORCE cooling, RGB lighting, PCB protection, and VR friendly features for the best gaming and VR experience!

www.gigabyte.com

Desde já, obrigado!



[Tatty_Two]

Olá,

Alguém aqui pode me ajudar a desbloqueá-lo para 1024 shaders completos

Anexei meu estoque de captura de tela do BIOS + GPUZ

Eu ficaria muito feliz se alguém desbloquear o BIOS.

Radeon™ RX 560 OC 4G (rev. 3.0) Key Features | Graphics Card - GIGABYTE India

Discover AORUS premium graphics cards, ft. WINDFORCE cooling, RGB lighting, PCB protection, and VR friendly features for the best gaming and VR experience!

www.gigabyte.com

View attachment 220740

Desde já, obrigado!

Welcome, this is an English speaking forum, if you struggle with English then you can use a translator, however I will start you off here with a translation of your request, but English please from now on ............



"Hello, Can anyone here help me unlock it for 1024 full shaders

I've summing up my BIOS + GPUZ screen capture stock

I would be very happy if someone unlock the BIOS."



[Final_Fighter]

Olá,

Alguém aqui pode me ajudar a desbloqueá-lo para 1024 shaders completos

Anexei meu estoque de captura de tela do BIOS + GPUZ

Eu ficaria muito feliz se alguém desbloquear o BIOS.

Radeon™ RX 560 OC 4G (rev. 3.0) Key Features | Graphics Card - GIGABYTE India

Discover AORUS premium graphics cards, ft. WINDFORCE cooling, RGB lighting, PCB protection, and VR friendly features for the best gaming and VR experience!

www.gigabyte.com

View attachment 220740

Desde já, obrigado!

this should do it.



[pavle]

this should do it.

Yes, I checked it, all is well. I hope the card unlocks.



[AlexTwP]

Isso deve servir.

It worked, thanks everyone!!!!

before / current



[Alisson]

Hello,

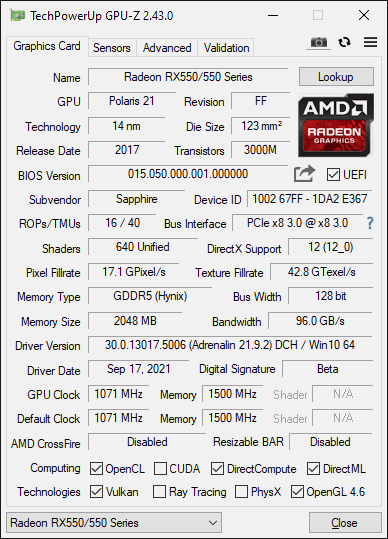

My card is a Sapphire rx550 2gb,
Can anyone here help me unlock it for 768 full shaders

I have attached my stock BIOS + GPUZ screenshot
I would be very happy if someone unlocks the BIOS.



[Final_Fighter]

Hello,

My card is a Sapphire rx550 2gb,
Can anyone here help me unlock it for 768 full shaders

I have attached my stock BIOS + GPUZ screenshot
I would be very happy if someone unlocks the BIOS.
View attachment 220770

here you go.



[pavle]

Interesting that it's the same pattern for RX550. Qapla'!



[frostalot]

Hi! Can someone help me unlock the full shaders on my XFX RX560D 4GB 14CU card?



[pavle]

Hi! Can someone help me unlock the full shaders on my XFX RX560D 4GB 14CU card?

Hey there!
Here's the unlocked BIOS, I hope successfully.



[frostalot]

Hey there!
Here's the unlocked BIOS, I hope successfully.

The flash worked successfully but now I get code 43 in device manager.



[eidairaman1]

The flash worked successfully but now I get code 43 in device manager.
View attachment 221190View attachment 221191

Calling @Final_Fighter



[Final_Fighter]

The flash worked successfully but now I get code 43 in device manager.
View attachment 221190View attachment 221191

You need to use AMD/ATI Pixel Clock Patcher. Here is a link:https://www.monitortests.com/forum/Thread-AMD-ATI-Pixel-Clock-Patcher
just run it and patch the drivers then restart.



[eidairaman1]

Here is the stock bios

XFX RX 560D VBIOS

4 GB GDDR5, 1196 MHz GPU, 1500 MHz Memory

www.techpowerup.com

You need to use AMD/ATI Pixel Clock Patcher. Her is a link:https://www.monitortests.com/forum/Thread-AMD-ATI-Pixel-Clock-Patcher
just run it and patch the drivers then restart.

His clock speeds are 0, 0



[pavle]

The flash worked successfully but now I get code 43 in device manager...

Well that can't be good - try uninstalling the driver and reinstall the latest one. See if it works then.



[frostalot]

@Final_Fighter @pavle @eidairaman1 - Running AMD pixel clock patcher resolved the issue! Thanks a lot!

3DMark graphics score went up about 100 points. Now time to try some games!



[pavle]

Mighty fine, mighty fine.



[Imperator]

Hello
I would love to ask you if it is possible, to unlock the shaders for HD7870
Attach you find all the details about my card :



[pavle]

Hello
I would love to ask you if it is possible, to unlock the shaders for HD7870...

I searched different files for different patterns, but found nothing at least as of yet.



[Tatty_Two]

I was under the impression that Tahiti's were locked at the hardware level.



[eidairaman1]

Hello
I would love to ask you if it is possible, to unlock the shaders for HD7870
Attach you find all the details about my card :

What would it unlock to? I know only of 7850s and 7950s unlocking into the their 70 counterparts

And we all know a R9 280X is a HD7970 GHz edition.

R9 380s were R9 285s...
