AMD Radeon HD 7950M
- Graphics Processor
- Wimbledon
- Cores
- 1280
- TMUs
- 80
- ROPs
- 32
- Memory Size
- 2 GB
- Memory Type
- GDDR5
- Bus Width
- 256 bit
GPU
Recommended Gaming Resolutions:
- 1600x900
- 1920x1080
- 2560x1440
The Radeon HD 7950M was a mobile graphics chip by AMD, launched on April 24th, 2012. Built on the 28 nm process, and based on the Wimbledon graphics processor, in its Wimbledon PRO variant, the chip supports DirectX 12. Even though it supports DirectX 12, the feature level is only 11_1, which can be problematic with newer DirectX 12 titles. The Wimbledon graphics processor is an average sized chip with a die area of 212 mm² and 2,800 million transistors. It features 1280 shading units, 80 texture mapping units, and 32 ROPs. AMD has paired 2,048 MB GDDR5 memory with the Radeon HD 7950M, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 700 MHz, memory is running at 1000 MHz (4 Gbps effective).

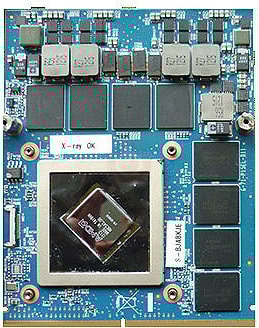

Being a mxm module card, its power draw is rated at 75 W maximum. This device has no display connectivity, as it is not designed to have monitors connected to it. Rather it is intended for use in laptop/notebooks and will use the output of the host mobile device.
Being a mxm module card, its power draw is rated at 75 W maximum. This device has no display connectivity, as it is not designed to have monitors connected to it. Rather it is intended for use in laptop/notebooks and will use the output of the host mobile device.
Graphics Processor
Mobile Graphics
- Release Date
- Apr 24th, 2012
- Generation
-
London
(HD 7900M)
- Predecessor
- Vancouver
- Successor
- Solar System
- Production
- End-of-life
- Bus Interface
- MXM-B (3.0)
Relative Performance
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for 2080 Ti and faster.
Performance estimated based on architecture, shader count and clocks.
Clock Speeds
- GPU Clock
- 700 MHz
- Memory Clock
-
1000 MHz
4 Gbps effective
Memory
- Memory Size
- 2 GB
- Memory Type
- GDDR5
- Memory Bus
- 256 bit
- Bandwidth
- 128.0 GB/s
Render Config
- Shading Units
- 1280
- TMUs
- 80
- ROPs
- 32
- Compute Units
- 20
- L1 Cache
- 16 KB (per CU)
- L2 Cache
- 512 KB
Theoretical Performance
- Pixel Rate
- 22.40 GPixel/s
- Texture Rate
- 56.00 GTexel/s
- FP32 (float)
- 1.792 TFLOPS
Board Design
- Slot Width
- MXM Module
- TDP
- 75 W
- Outputs
- Portable Device Dependent
Graphics Features
- DirectX
- 12 (11_1)
- OpenGL
- 4.6
- OpenCL
- 2.1 (1.2)
- Vulkan
- 1.2.170
- Shader Model
- 6.5 (5.1)
Card Notes
| - 512KB L2 read/write cache |
Wimbledon GPU Notes
| Generation: Southern Islands Desktop Variant: Pitcairn / Curacao / Trinidad Mobile Variant: Wimbledon Graphics/Compute: GFX6 (gfx601) Display Core Engine: 6.0 Unified Video Decoder: 4.0 Video Compression Engine: 1.0 CLRX: GCN 1.0 |
