ABIT AW9D-MAX Review
Fan Noise & Overclocking »Rightmark Audio Analyzer

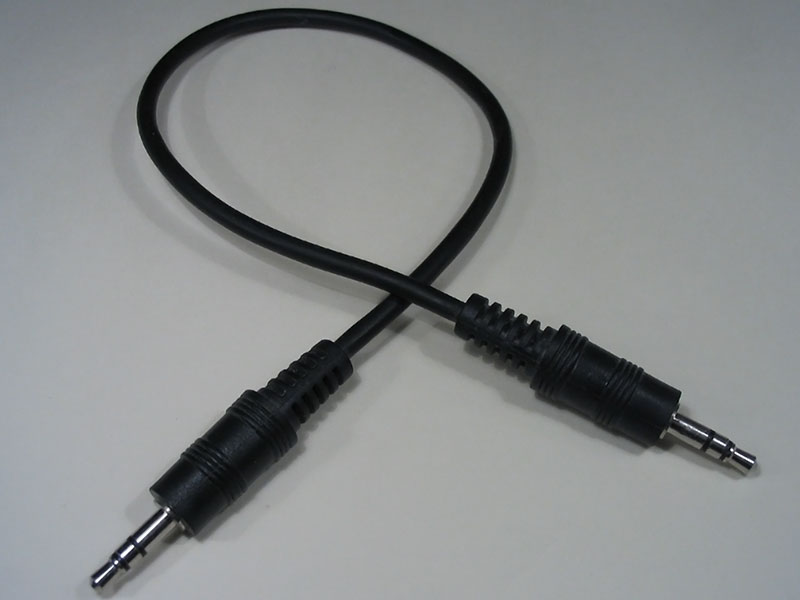

We used Rightmark Audio Analyzer together with a loop-back cable to analyze the quality of the on-board audio solution.
Summary
| Frequency response (from 40 Hz to 15 kHz), dB: | +0.25, -0.32 | Good |
| Noise level, dB (A): | -74.5 | Average |
| Dynamic range, dB (A): | 74.1 | Average |
| THD, %: | 0.0056 | Very good |
| IMD, %: | 0.061 | Good |
| Stereo crosstalk, dB: | -71.3 | Good |
| IMD at 10 kHz, %: | 0.119 | Average |
General performance: Good
Even though the quality is "good" I was expecting a better score from the motherboard. The extra PCB for the sound card seems to have no effect on audio quality.
