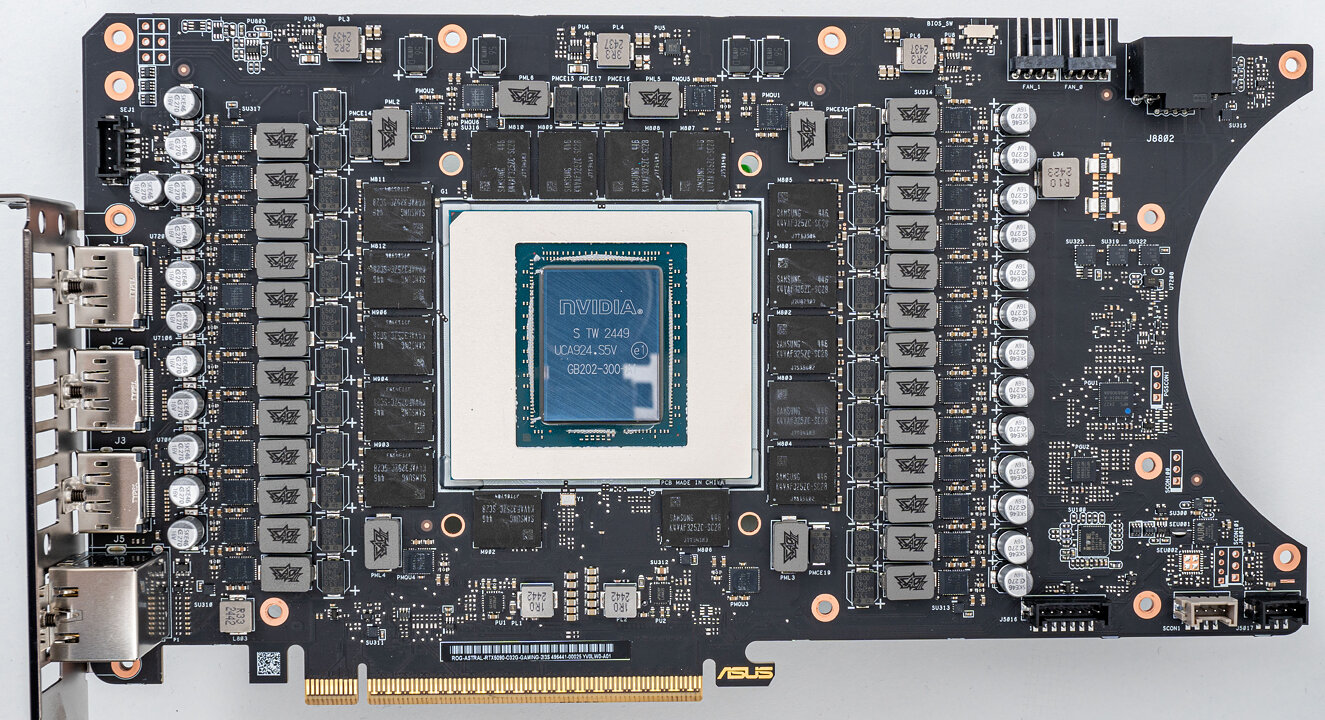

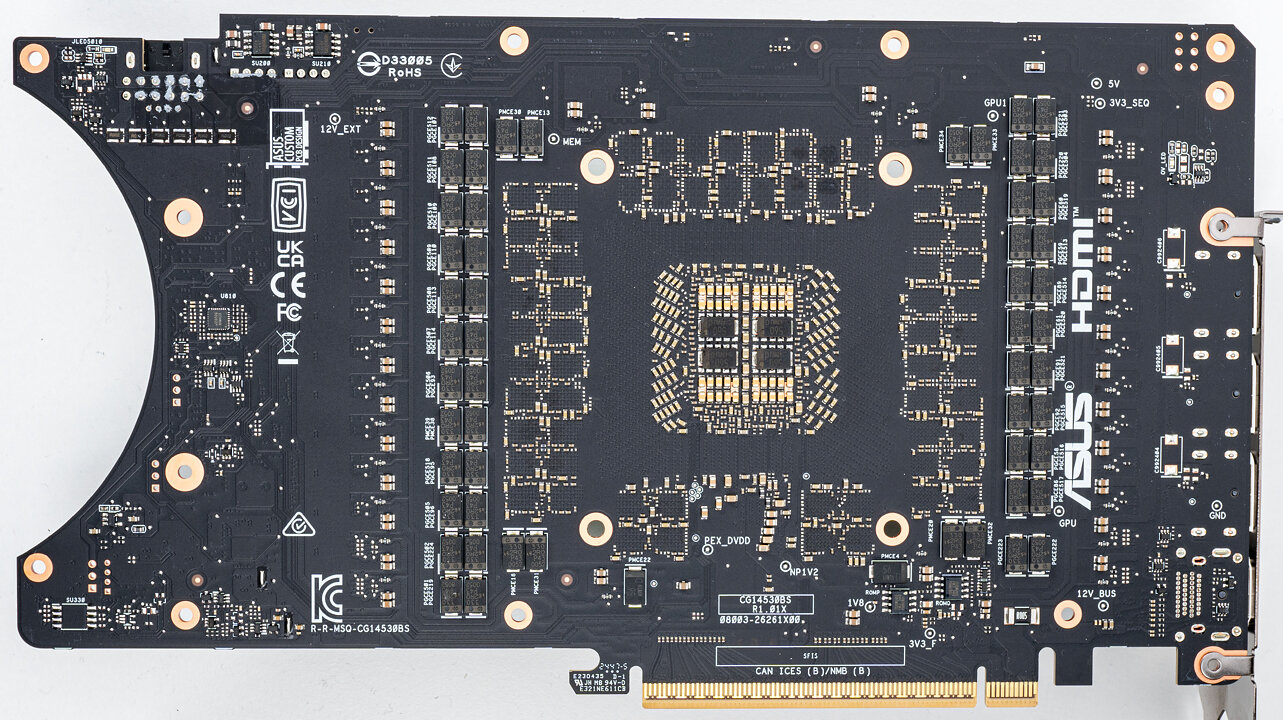

High-resolution PCB Pictures

These pictures are for the convenience of volt modders and people who would like to see all the finer details on the PCB. Feel free to link back to us and use these in your articles, videos or forum posts.


High-resolution versions are also available (front, back).

Circuit Board (PCB) Analysis

A massive 24-phase VRM powers the GPU, highlighted in the red rectangles above. These are controlled by a Monolithic Power Systems MP29816 controller

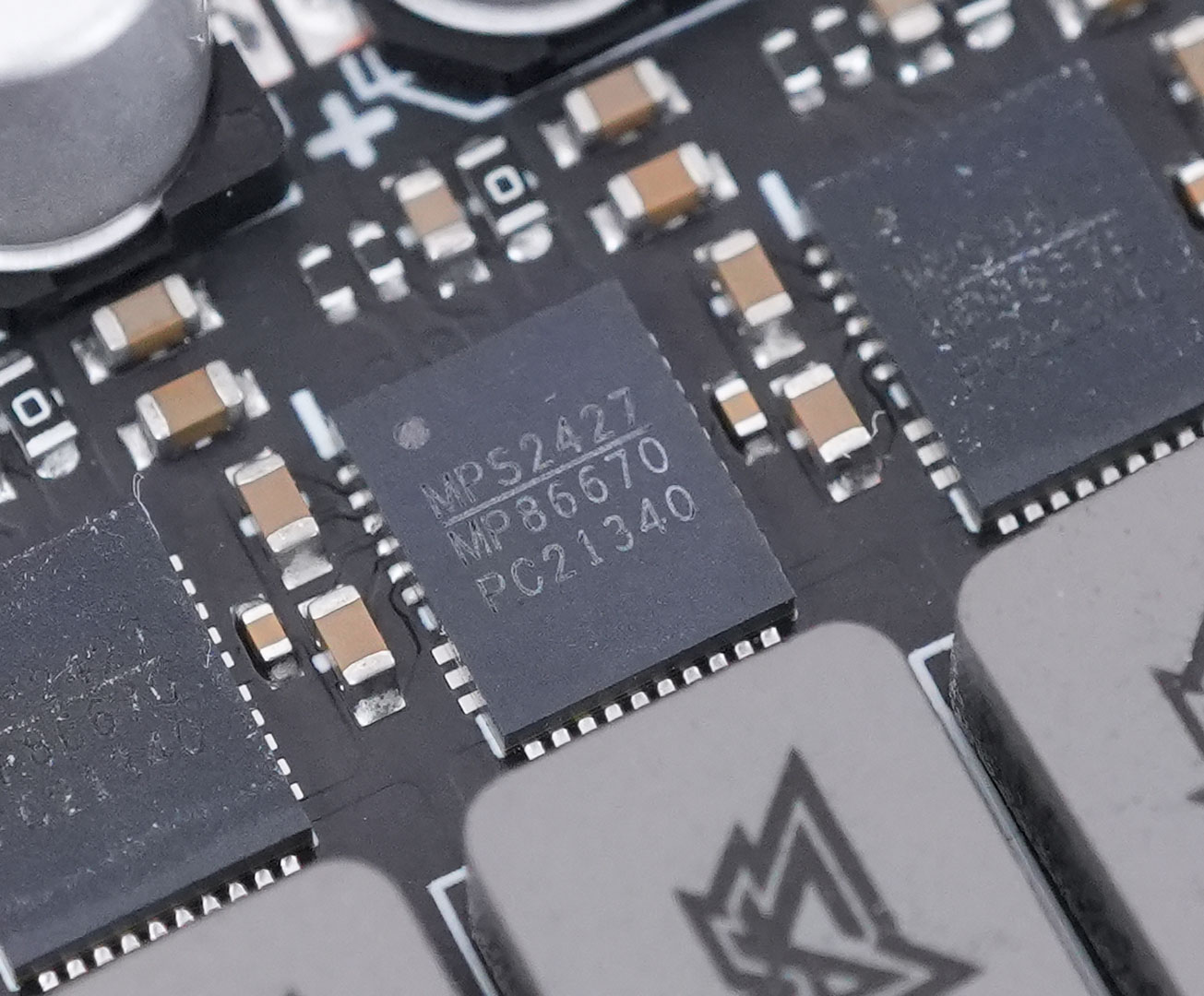

All GPU power phases use Monolithic MPS MP86670 DrMOS with an 80 A rating.

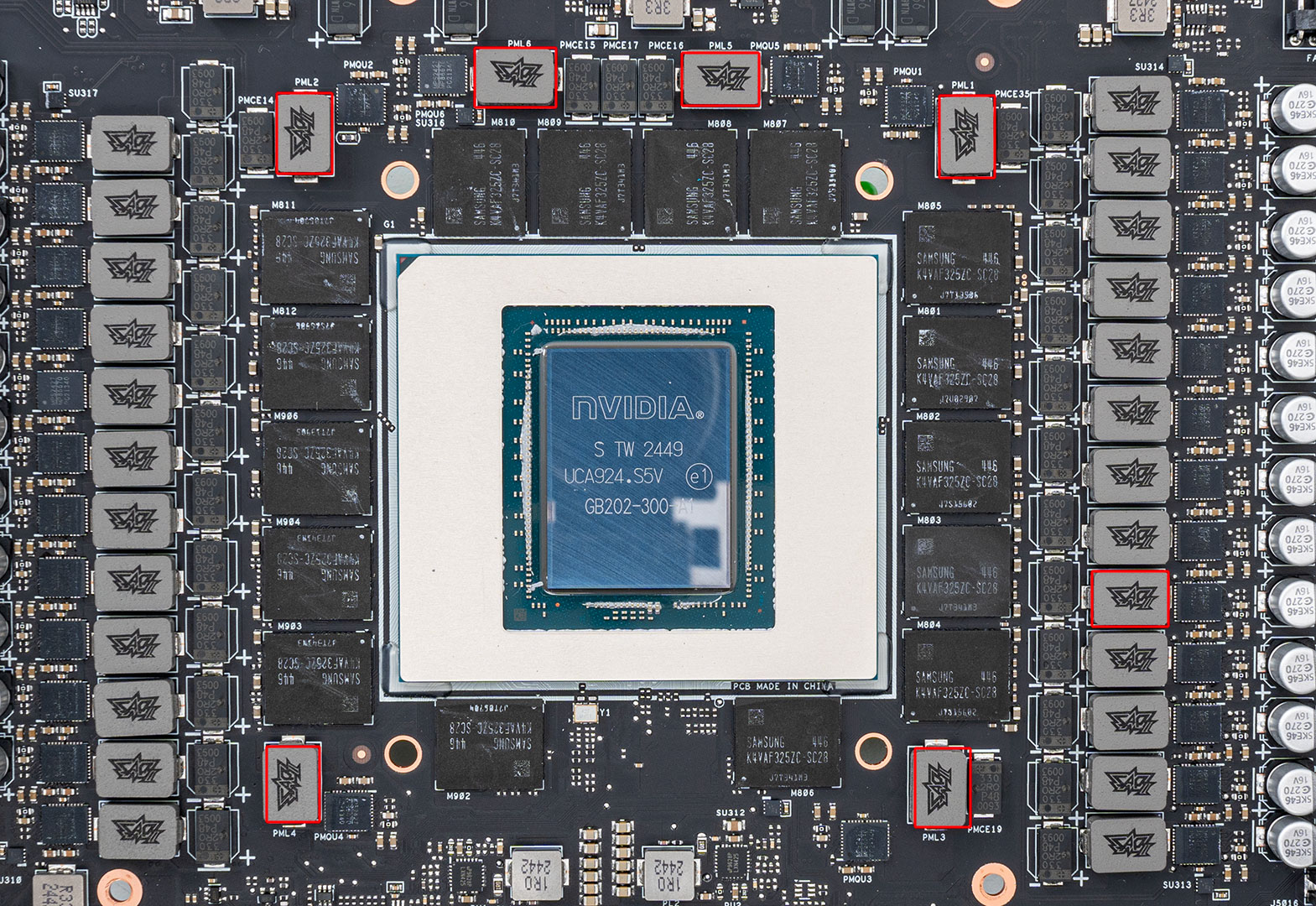

Powering the 16 GDDR7 memory chips is a seven-phase VRM driven by a Monolithic MP2898 controller.


Just like GPU, the memory is handled by Monolithic MP86670 DrMOS chips, too, rated for 80 A.


The GDDR7 memory chips are made by Samsung, and bear the model number K4VAF325ZC-SC28, they are rated for 28 Gbps.


The NVIDIA GB202 GPU at the heart of the GeForce RTX 5090 is massive. It is fabricated using a 5 nanometer "NVIDIA 4N" process at TSMC Taiwan (same process as Ada). The die measures 750 mm², and comes with a transistor count of 92.2 billion.
