Ripple Measurements
In the following table you will find the ripple levels that we measured on the main rails of SP-E8 400W. According to ATX specification the limits are 120 mV (+12V) and 50 mV (5V & 3.3V).
Ripple Measurements |
---|
Test | 12 V | 5 V | 3.3 V | Pass/Fail |
20% Load | 20.2 mV | 14.6 mV | 11.4 mV | Pass |
40% Load | 39.6 mV | 26.4 mV | 22.8 mV | Pass |
50% Load | 34.8 mV | 11.2 mV | 11.0 mV | Pass |
60% Load | 41.4 mV | 17.8 mV | 17.2 mV | Pass |
80% Load | 53.8 mV | 27.2 mV | 24.2 mV | Pass |
100% Load | 67.2 mV | 18.4 mV | 16.2 mV | Pass |
Crossload 1 | 47.2 mV | 25.2 mV | 23.4 mV | Pass |
Crossload 2 | 65.2 mV | 19.8 mV | 15.4 mV | Pass |
Ripple/noise suppresion overall is decent with the maximum readings at each measured rail reaching about the half of the ATX limit. However the minor rails showed some strange behaviour with 40% and 80% load where ripple registered an unproportional increase.
Ripple at Full Load
In the following oscilloscope screenshots you can see the AC ripple and noise that the main rails registered (+12V, 5V, 3.3V). The bigger the fluctuations on the oscilloscope's screen the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals to 0.01V) as standard but sometimes we are forced to use 0.02 V/Div, meaning that the fluctuations will look smaller but actually this wont be the case.

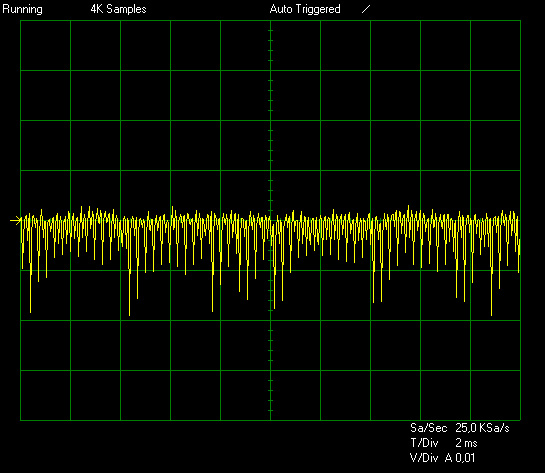

Ripple at Crossload 1
The order of images is +12V, 5V and 3.3V.
Ripple at Crossload 2
As above the order of images is +12V, 5V and 3.3V.
