HIS Radeon HD 3850 IceQ3 TurboX 512 MB Review

Test Setup »

A Closer Look

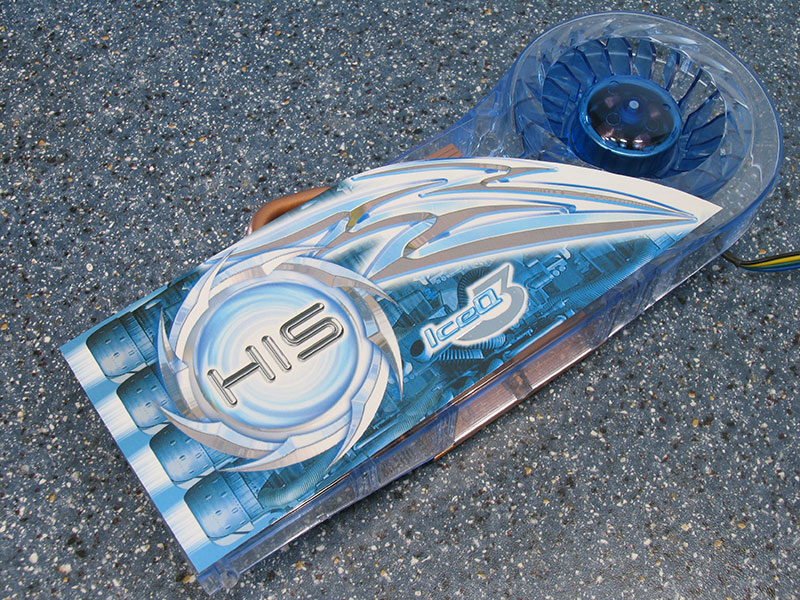

Graphics Card Cooler Front
Graphics Card Cooler Back

At first sight the cooler looks pretty cool, it has copper and heatpipes and hot air is going outside of the case. When I cleaned up the baseplate though I noticed that the part that makes contact with the GPU core is made from aluminum? After scraping around a bit on the cooler I found out that the whole metal piece is made from aluminum and just painted in copper color. Even though it is just aluminum, the cooler does a fine job at keeping the card cool.


The memory cooler is also a painted piece of aluminum with a number of fins on it. As we can see later in the overclocking section of the review it does a fine job at keeping the memory cool.

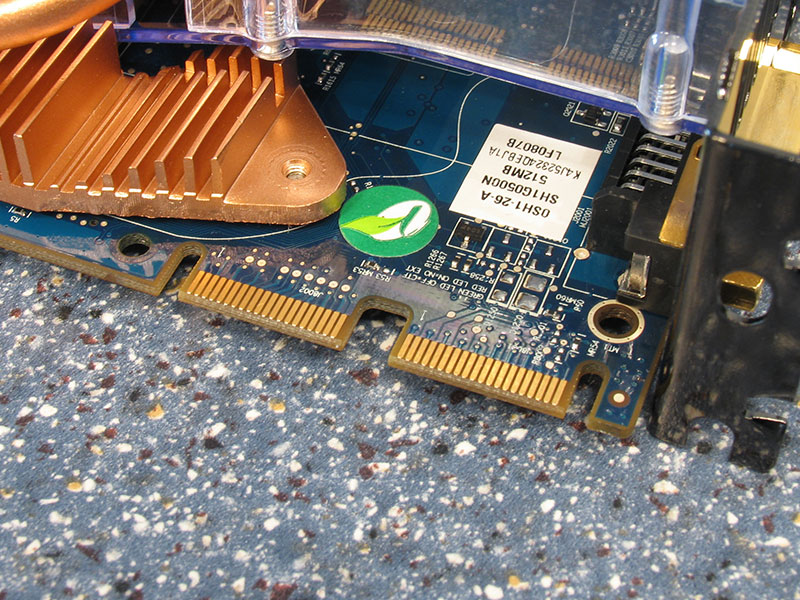

CrossFire is supported of course, even the new CrossFireX which will work with up to four GPUs in the future can be used once the ATI drivers support it.

Graphics Card Power Plugs

Near the back of the card you find a single six pin PCI-Express power connector. It is required for operation at all times, even when the card is running in PCI-E 2.0 mode which has a higher power delivery capability over the bus.

Graphics Card Memory Chips

The GDDR3 memory chips are made by Samsung and carry the model number K4J52324QE-BJ1A. With 1.0 ns latency (= 1000 MHz) they should have some headroom left for overclocking.

Graphics Chip GPU

The GPU is the ATI RV670 which is made in a 55nm process at TSMC.
