Ripple Measurements

You will see the ripple levels we measured on the rails of the KL-C1200PL in the following table. The limits are, according to the ATX specification, 120 mV (+12V) and 50 mV (5V, 3.3V, and 5VSB).

Ripple Measurements - Kolink KL-C1200PL
Test	12 V	5 V	3.3 V	5VSB	Pass/Fail
10% Load	30.1 mV	16.2 mV	13.0 mV	14.2 mV	Pass
20% Load	32.2 mV	14.3 mV	13.3 mV	14.9 mV	Pass
30% Load	38.4 mV	15.5 mV	15.4 mV	15.9 mV	Pass
40% Load	43.3 mV	16.6 mV	16.6 mV	16.5 mV	Pass
50% Load	48.9 mV	19.5 mV	17.5 mV	19.5 mV	Pass
60% Load	54.2 mV	22.8 mV	17.8 mV	20.2 mV	Pass
70% Load	58.0 mV	23.9 mV	19.7 mV	21.0 mV	Pass
80% Load	61.9 mV	24.5 mV	21.0 mV	22.8 mV	Pass
90% Load	66.5 mV	26.9 mV	22.5 mV	25.9 mV	Pass
100% Load	78.0 mV	29.2 mV	24.4 mV	27.0 mV	Pass
110% Load	82.3 mV	31.5 mV	25.8 mV	28.9 mV	Pass
Crossload 1	43.7 mV	22.9 mV	21.3 mV	17.6 mV	Pass
Crossload 2	72.5 mV	28.8 mV	22.0 mV	27.4 mV	Pass

Ripple suppression at +12V is lousy. Sirfa apparently decided to sacrifice performance in this area in order to increase efficiency. We would like to see less than 50 mV ripple in our worst-case scenario. The other rails perform better, although definitely not top-notch.

Ripple at Full Load

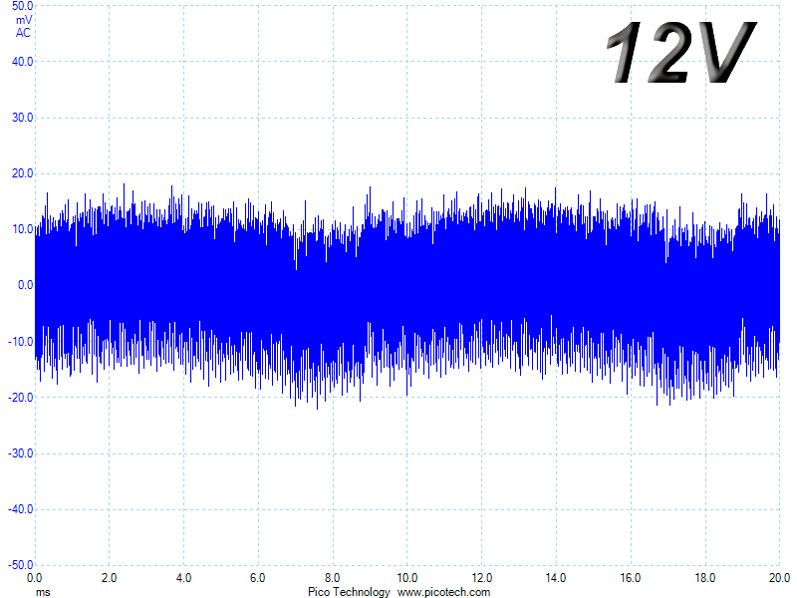

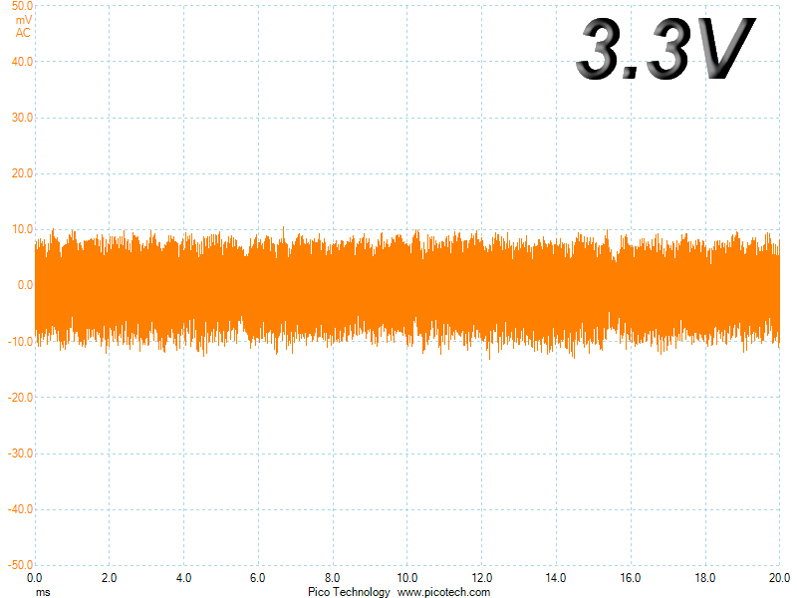

You can see the AC ripple and noise the main rails registered (+12V, 5V, 3.3V, and 5VSB) in the following oscilloscope screenshots. The bigger the fluctuations on the oscilloscope's screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01 V) as the standard for all measurements.
