NZXT HALE82-850-M 850 W Review

Name: NZXT HALE82-850-M 850 W
Brand: NZXT

crmaris

on Nov 25th, 2011,

in Power Supplies.

Manufacturer: NZXT

Performance Rating & Performance per Dollar »

Ripple Measurements

In the following table you will find the ripple levels that we measured on the main rails of HALE82 850M. According to ATX specification the limits are 120 mV (+12V) and 50 mV (5V, 3.3V and 5VSB).

Ripple Measurements NZXT HALE82 850M
Test	12 V	5 V	3.3 V	5VSB	Pass/Fail
20% Load	13.9 mV	6.8 mV	5.7 mV	7.4 mV	Pass
40% Load	18.8 mV	7.3 mV	8.2 mV	8.2 mV	Pass
50% Load	19.1 mV	8.2 mV	8.3 mV	9.2 mV	Pass
60% Load	20.2 mV	9.4 mV	8.5 mV	9.2 mV	Pass
80% Load	21.7 mV	10.1 mV	11.9 mV	10.4 mV	Pass
100% Load	32.0 mV	10.3 mV	13.0 mV	11.2 mV	Pass
Crossload 1	14.6 mV	9.5 mV	6.3 mV	16.4 mV	Pass
Crossload 2	30.5 mV	8.5 mV	8.3 mV	9.6 mV	Pass

Ripple/noise suppression is excellent at all rails/load combinations. At worst case ripple at +12V rail reaches one quarter of the limit while the minor rails stayed at about one fifth of the respective limit. This kind of performance easily competes with much more expensive units which belong in the high-end category.

Ripple at Full Load

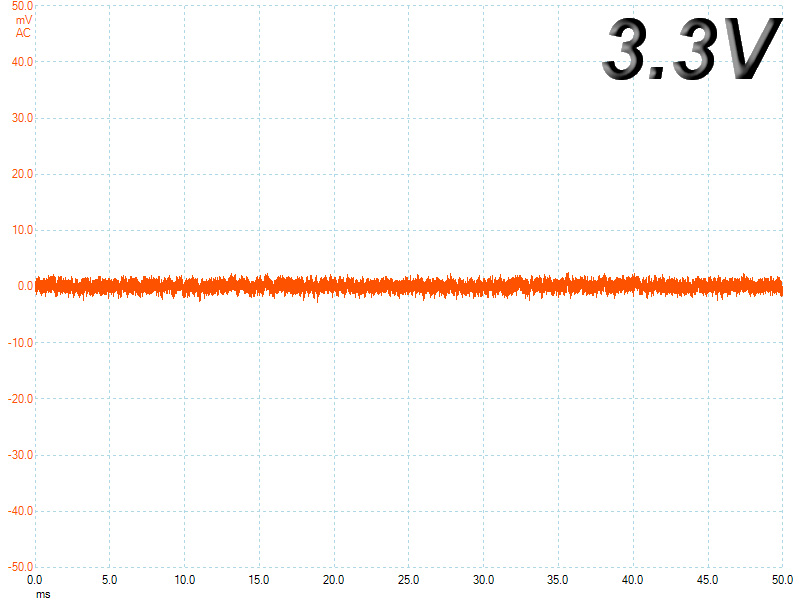

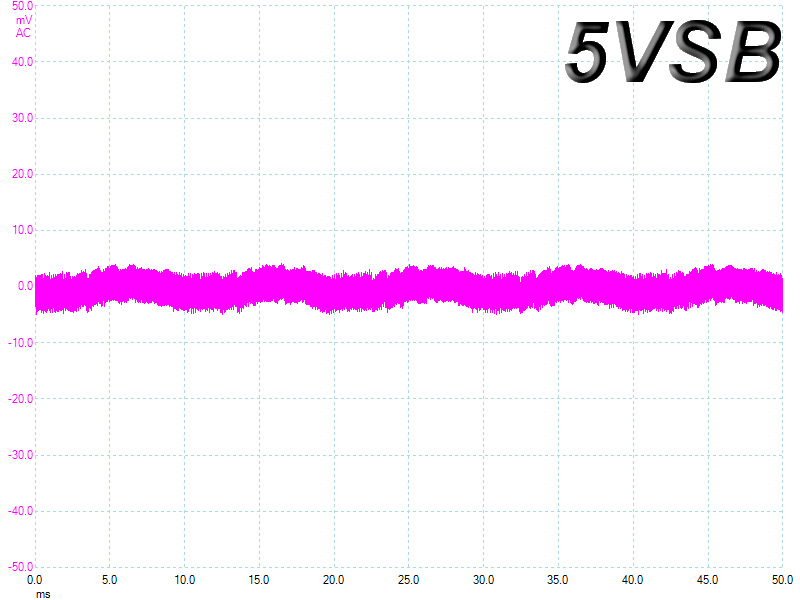

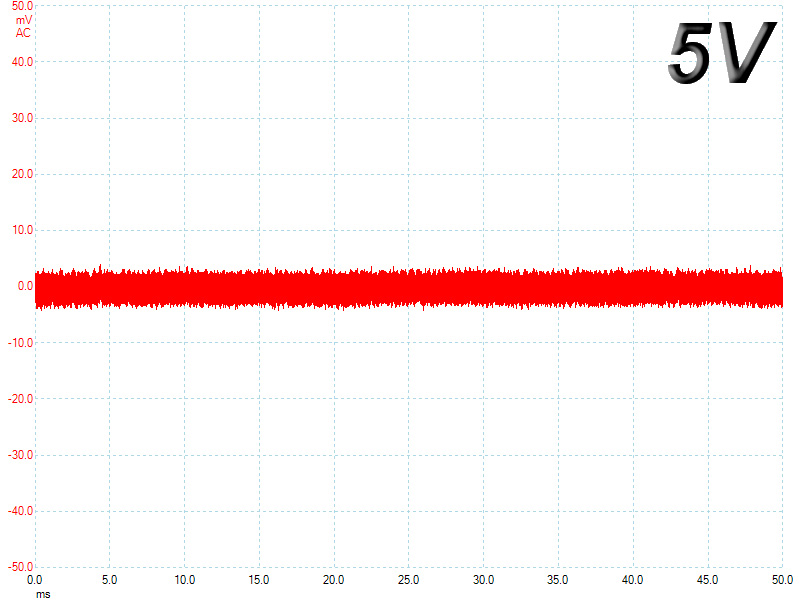

In the following oscilloscope screenshots you can see the AC ripple and noise that the main rails registered (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the oscilloscope's screen the bigger the ripple/noise. For all measurements we set 0.01 V/Div (each vertical division/box equals to 0.01V) as standard.
