Fan Noise

In the past years users would accept everything just to get more performance. Nowadays this has changed with people being more aware of the fan noise and power consumption of their graphic cards.

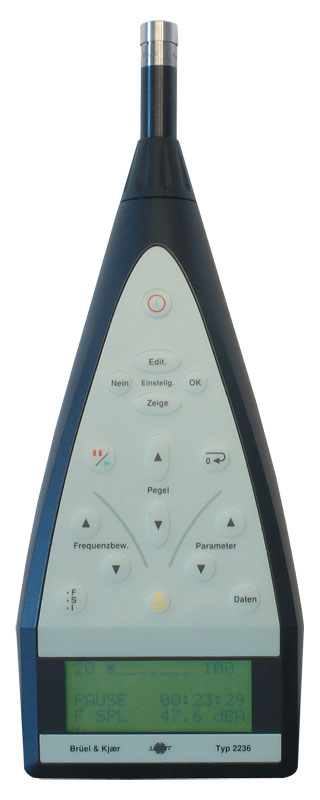

In order to properly test the fan noise a card emits we are using a Bruel & Kjaer 2236 sound level meter (~$4,000) which has the measurement range and accuracy we are looking for.


The tested graphics card is installed in a system that is completely passively cooled. That is passive PSU, passive CPU cooler, passive cooling on the motherboard and Solid-State HDD.
This setup allows us to eliminate secondary noise sources and test only the video card. To be more compliant with standards like DIN 45635 (we are not claiming to be fully DIN 45635 certified) the measurement is conducted at 100 cm distance and 160 cm over the floor. The ambient background noise level in the room is well below 20 dbA for all measurements. Please note that the dbA scale is not linear, it is logarithmic. 40 dbA is not twice as loud as 20 dbA. A 3 dbA increase results in double the sound pressure. The human hearing is a bit different and it is generally accepted that a 10 dbA increase doubles the perceived sound level.

When we first saw the dual fan design of the Palit HD 4870 Sonic we hoped for some kind of intelligent fan management. For example when the card is idle only one fan will run and the fan speeds will be adjusted to guarantee optimal noise levels while still keeping load temps down. Unfortunately the result is somewhat different. In idle the card is very noisy - the BIOS keeps the fan running at above 50% all the time. Under load the card is still noisy, but the difference to the other cards is smaller.
