The Card

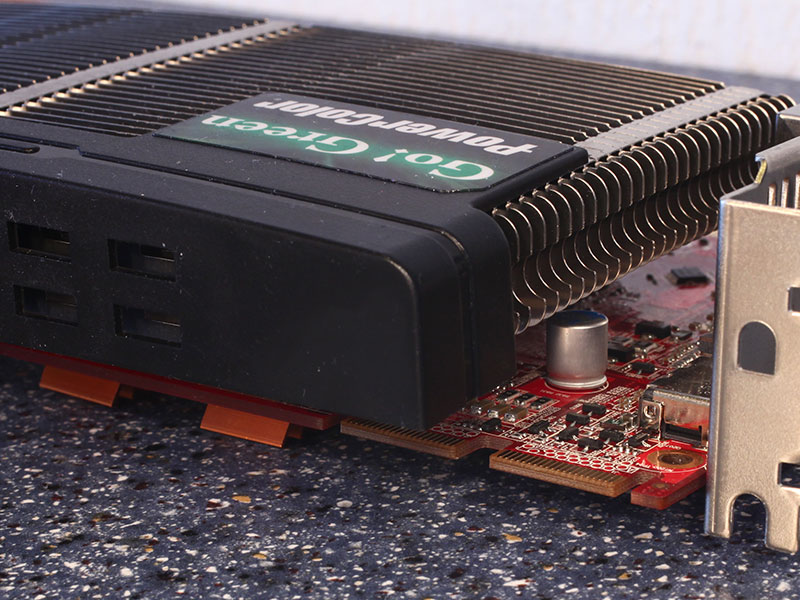

PowerColor has placed a really big heatsink on their card which could potentially make the card not fit your case. To save you some drama, double check before purchase please. From PCIe connector (including) to top edge of fan the distance is 13.2 cm.


Just like the reference design, the card occupies two slots in the system.


The card has two DVI ports, one HDMI port, and one DisplayPort. This is just one of many output configurations that are possible on the new cards, thanks to the overhauled display output logic. Basically the card can drive six TMDS signals that can be combined in any way (a dual-link DVI consumes two TMDS lines).

For HDMI Audio, NVIDIA requires you to feed an external audio source, for example from your motherboard's on-board audio, to the card via SPDIF cable. AMD on the other hand has integrated a sound device inside their GPUs which is the easier solution for most users. Also AMD's integrated sound device has been upgraded to support HDMI 1.3a which includes Dolby TrueHD, DTS-HD, AC-3, DTS and up to 7.1 channel audio with 192 kHz / 24-bit.


Crossfire configurations are supported to improve performance even further, even though I'm not sure how much sense it makes to have two of these cards dump their heat into a closed case.

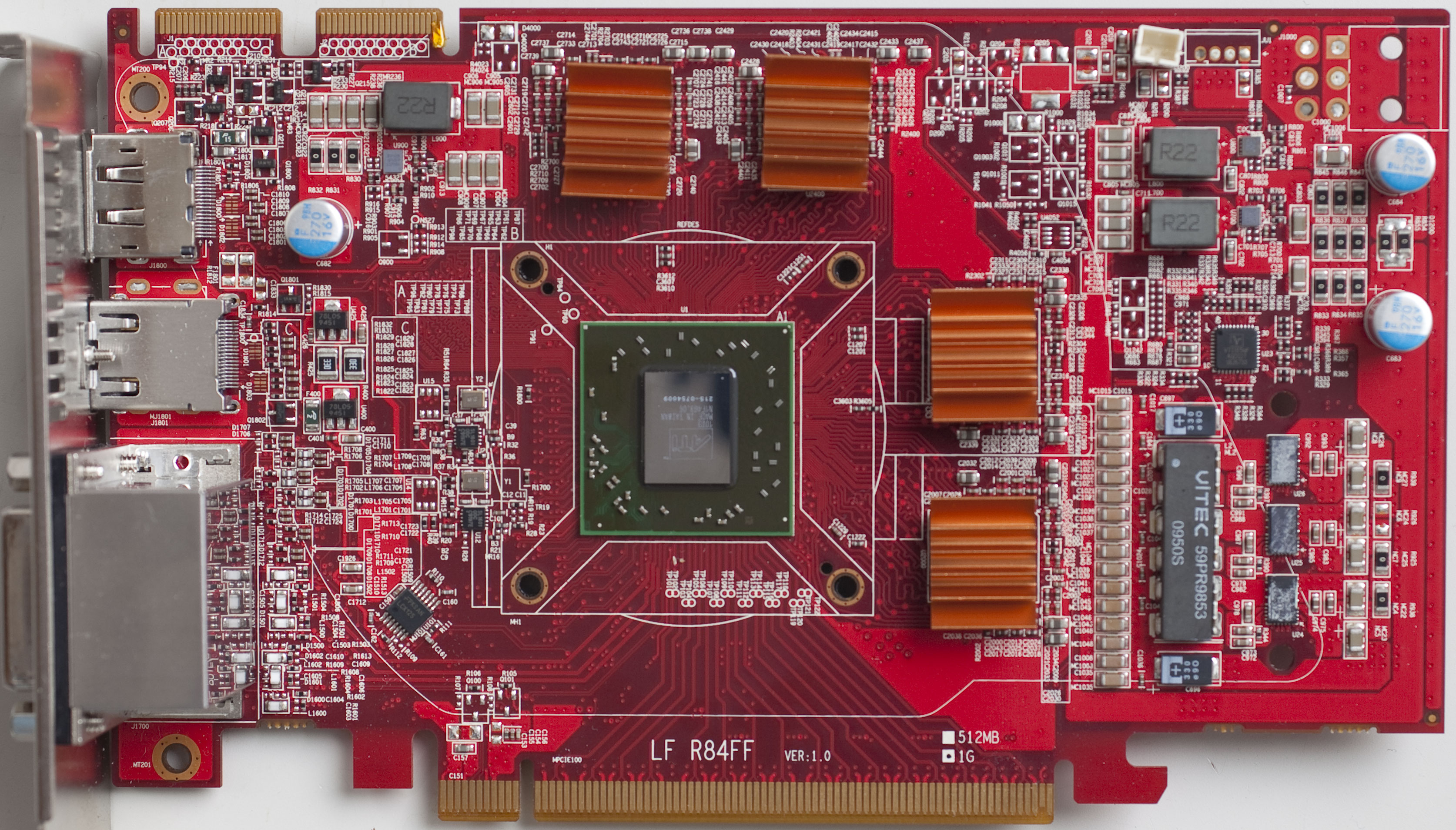

Here are the front and the back of the card, high-res versions are also available (front, back). If you choose to use these images for voltmods etc, please include a link back to this site or let us post your article.
