The Card

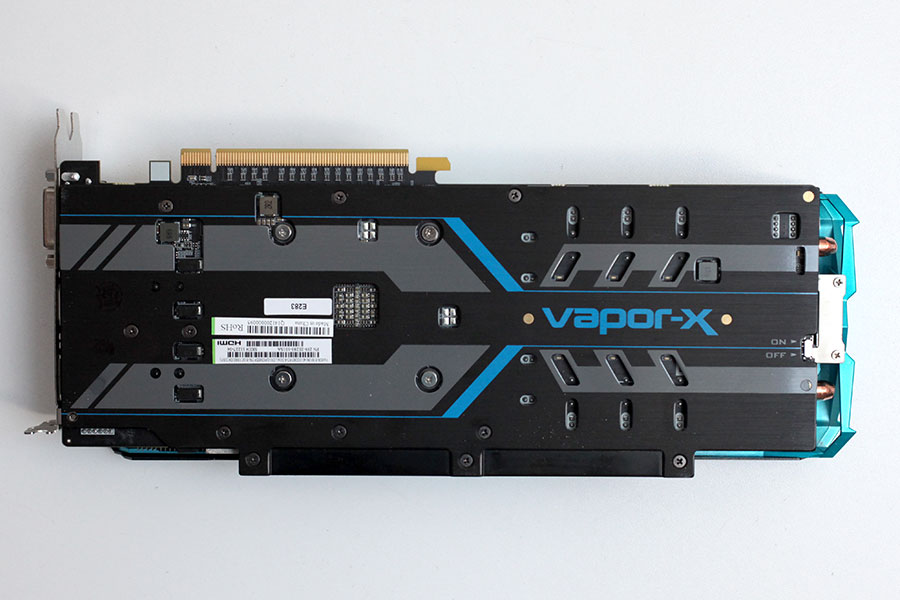

Sapphire deviated from their typical color theme and is branding the Vapor-X in a strong neon blue, which looks good. The cooler also utilizes a lot of surface detail, which gives it a more rugged look. You will find a backplate on the back of the card, which helps with cooling and protects the card. Dimensions of the card are 30.0 cm x 12.5 cm.


Installation requires three slots in your system.


Display connectivity options include two DVI ports, one HDMI port, and one DisplayPort. You may use all outputs at the same time, so triple-monitor-surround gaming is possible with one card.

The GPU also includes an HDMI sound device. It is HDMI 1.4a compatible, which includes HD audio and Blu-ray 3D movies support.


A physical CrossFire connector is not present as all Hawaii-based GPUs send their CrossFire data via the PCI-Express bus.


Pictured above are the front and back, showing the disassembled board. High-res versions are also available (front, back).
