Ripple Measurements

You will see the ripple levels we measured on the SS-1200XP3's rails in the following table. The limits are, according to the ATX specification, 120 mV (+12V) and 50 mV (5V, 3.3V, and 5VSB).

Ripple Measurements - Seasonic SS-1200XP3
Test	12 V	5 V	3.3 V	5VSB	Pass/Fail
10% Load	13.0 mV	11.2 mV	12.2 mV	7.3 mV	Pass
20% Load	16.8 mV	11.3 mV	11.2 mV	7.6 mV	Pass
30% Load	17.8 mV	11.9 mV	11.8 mV	8.3 mV	Pass
40% Load	17.9 mV	13.2 mV	13.6 mV	9.7 mV	Pass
50% Load	18.2 mV	14.5 mV	13.2 mV	9.7 mV	Pass
60% Load	21.1 mV	15.6 mV	14.4 mV	11.5 mV	Pass
70% Load	24.3 mV	15.9 mV	14.8 mV	12.7 mV	Pass
80% Load	27.6 mV	16.8 mV	16.3 mV	13.3 mV	Pass
90% Load	30.8 mV	18.4 mV	17.9 mV	14.8 mV	Pass
100% Load	33.8 mV	21.4 mV	21.1 mV	16.1 mV	Pass
110% Load	38.1 mV	22.8 mV	22.4 mV	18.0 mV	Pass
Crossload 1	15.1 mV	14.7 mV	15.3 mV	28.6 mV	Pass
Crossload 2	34.9 mV	20.2 mV	15.8 mV	16.2 mV	Pass

Ripple suppression was very good despite the tough conditions we exposed the unit to. Its combination of quality components and good design brought about these result. However, the competition's ripple suppression is even better, so Seasonic must strive to set an even higher bar in their implementations. We know that it may sound silly to ask for better ripple suppression on a Seasonic product, but we consider them to be one of the best PSU manufacturers, so their products should perform even better in our ripple-suppression tests; competition is also a good thing because it makes for more demanding reviewers.

Ripple at Full Load

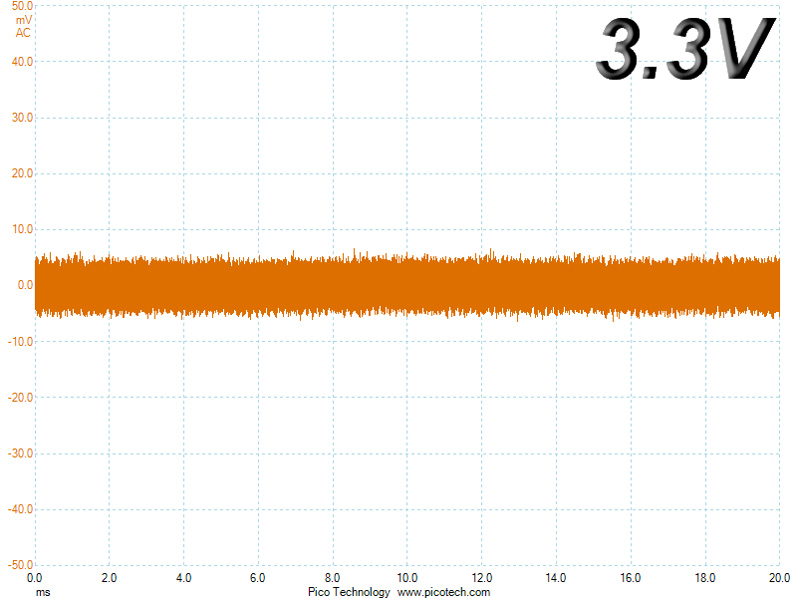

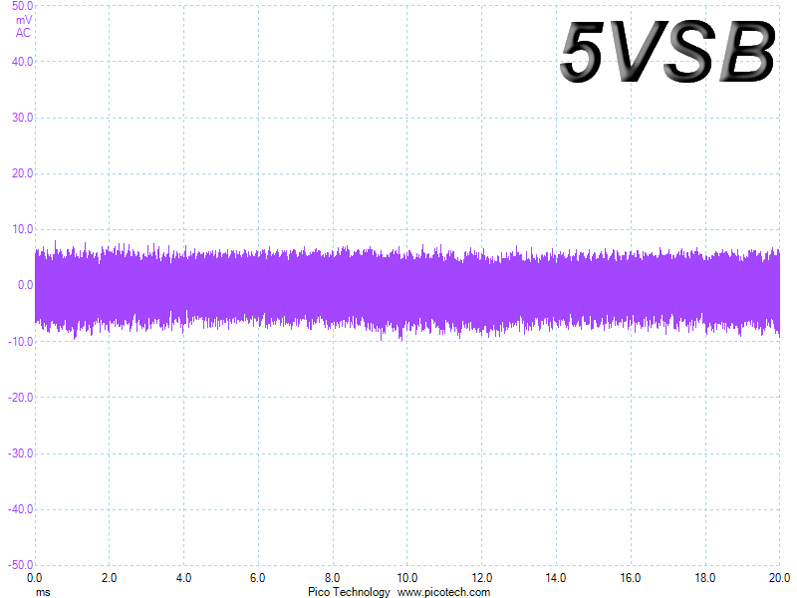

You can see the main rails' AC ripple and noise (+12V, 5V, 3.3V, and 5VSB) in the following oscilloscope screenshots. The bigger the fluctuations on the oscilloscope's screen, the bigger the ripple / noise. We set 0.01 V/Div (each vertical division/box equals 0.01 V) as the standard for all measurements.
