BIOS


The XH97V exploits a Unified Extensible Firmware Interface (UEFI) BIOS named Aptio Setup Utility, which, however, uses the old interface and doesn't support mouse input. Its available options are also fairly limited, and there are obviously no overclocking options since the cooling system can only handle up a CPU with a TDP of up to 65 W.


As has already been mentioned, there aren't any voltage-control options or overclocking features.

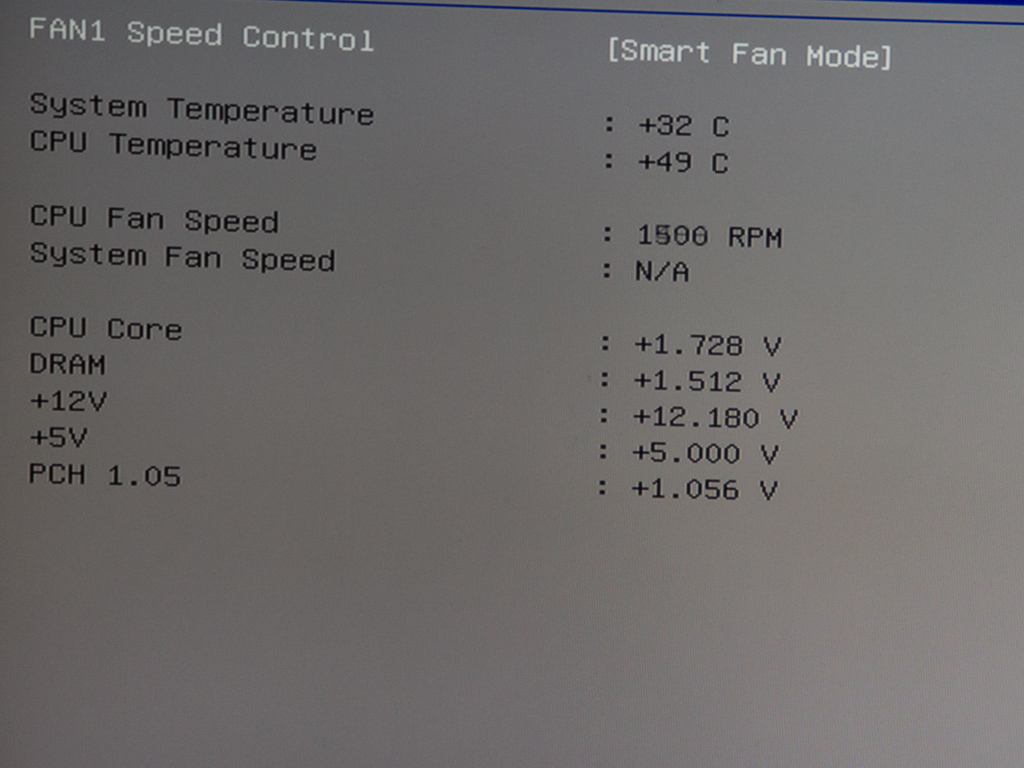

You can control each fan's operational profile through several presets. You had better leave it in smart-fan mode, though, as it will adjust fan speed according to the CPU's temperature, which will make both fans as quiet and effective as possible since their RPM is only ramped up to cool the unit after temperatures reach a certain point.

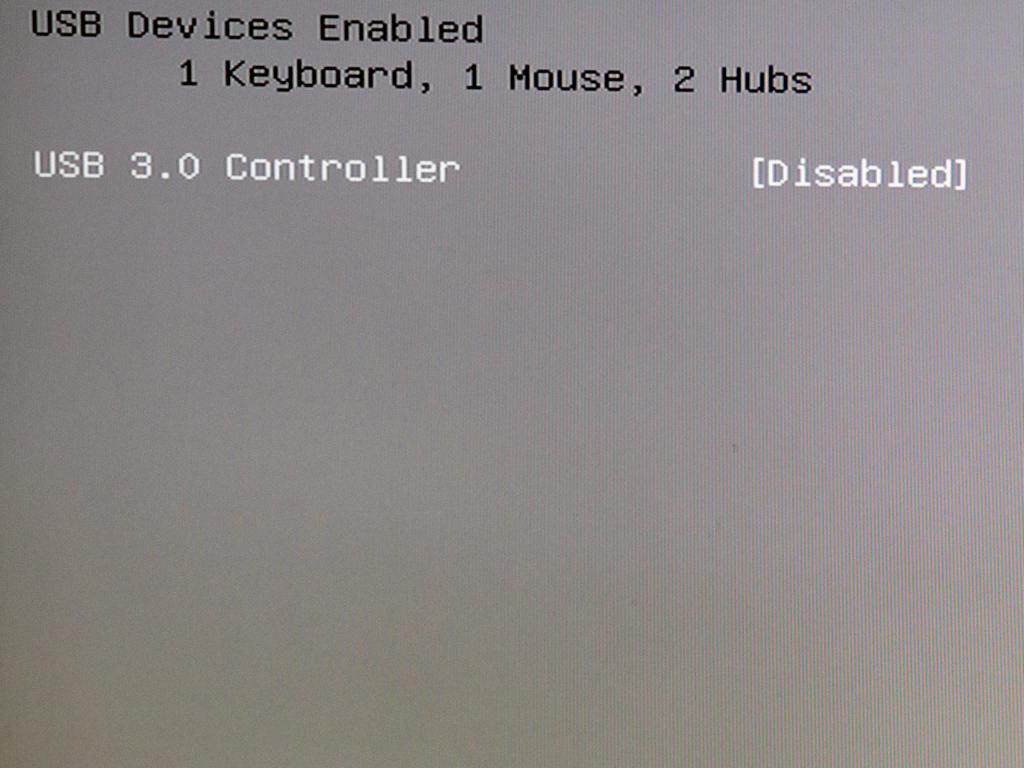

Strangely enough, enabling this option also meant that our keyboard and mouse wouldn't be recognized after the system booted into Windows, regardless of which USB port was used.

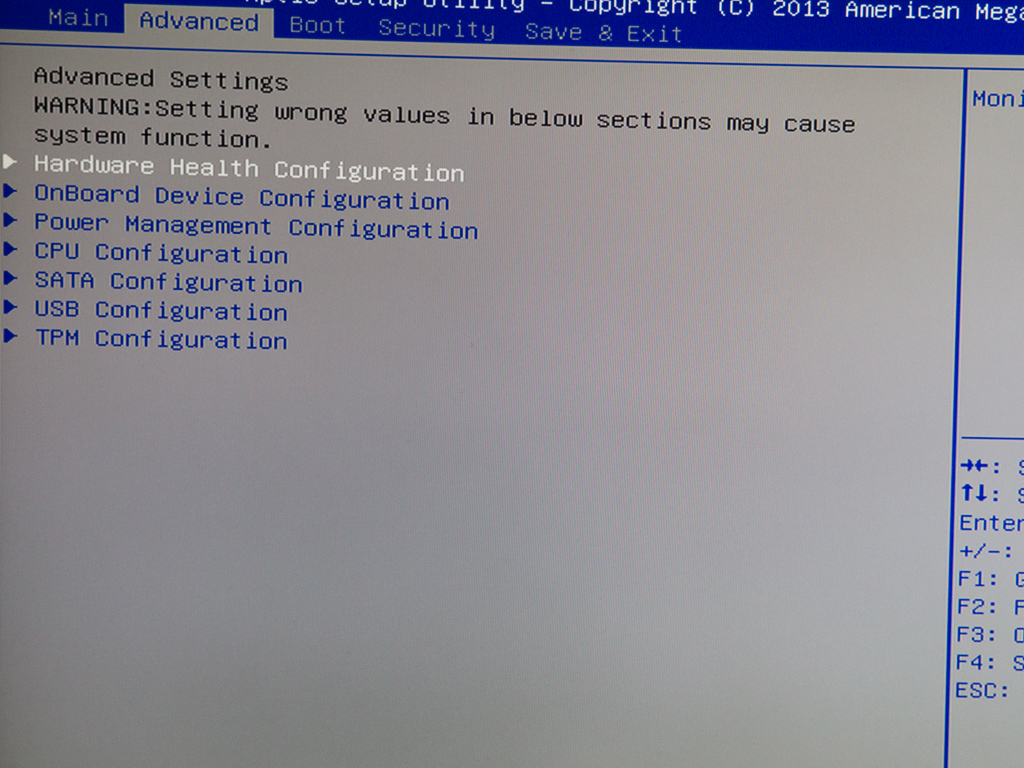

The BIOS' other option pages.

Performance



Using an Intel Pentium G3258 CPU and two Kingston 8 GB SO-DIMM modules, we installed mainstream components into our sample. We also used an OCZ Vertex 450 128 GB SSD.

PC Mark 07

Futuremark PCMark 7 Full Bench
 Shuttle
XH97V
(Pentium
G3258)
Shuttle
DS81
(Pentium
G3258)
Shuttle DS437TShuttle DS47Shuttle DS61 (Pentium G2020)ASRock VisionX 321B HTPCZOTAC ZBOX nano XS AD11 PLUSARCTIC MC001-BDFoxconn NT-A3500
PCMark 07 Score416746742874212635262358 1429 984 1070
Lightweight score361156884159321142781955 1553 984 986
Productivity score 315943542902203036801543 1185 549 699
Entertainment score326131841867131124852839 1184 1009 1029
Creativity score 586477373756283437363410 1544 1328 1192
Computation score10361108352210125039984569 727 751 1037
System storage score 361852354222508947101409 2798 1676 1357
Video playback 23.97 fps23.96 fps23.96 fps23.97 fps23.95 fps23.98 fps 22.99 fps 22.86 fps 19.91 fps
Video transcoding - downscaling 12604.28 kB/s13165.54 kB/s1867.87 kB/s988.14 kB/s7756.94 kB/s 2546.71 kB/s 638.41 kB/s 717.22 kB/s 1086.94 kB/s
System storage - gaming 16.35 MB/s16.38 MB/s15.76 MB/s15.49 MB/s15.42 MB/s3.19 MB/s 10.47 MB/s 4.13 MB/s 3.24 MB/s
Graphics - DirectX 919.94 fps18.89 fps11.58 fps8.18 fps11.72 fps58.86 fps 8.83 fps 8.38 fps 7.85 fps
Image manipulation17.24 Mpx/s20.02 Mpx/s12.09 Mpx/s7.03 Mpx/s

9.43 Mpx/s

10.04 Mpx/s 2.77 Mpx/s 2.52 Mpx/s 2.66 Mpx/s
System storage - importing pictures10.83 MB/s27.62 MB/s27.55 MB/s27.68 MB/s19.97 MB/s5.15 MB/s 10.38 MB/s 5.68 MB/s 4.42 MB/s
Web browsing14.08 pages/s14.24 pages/s6.76 pages/s4.69 pages/s10.65 pages/s12.94 pages 2.97 pages/s 2.58 pages/s 3.38 pages/s
Data decrypting 82.59 MB/s81.30 MB/s43.03 MB/s19.48 MB/s73.59 MB/s93.42 MB/s 26.02 MB/s 9.72 MB/s 22.26 MB/s
System storage - Windows Defender 5.55 MB/s5.48 MB/s5.30 MB/s5.21 MB/s5.33 MB/s1.13 MB/s 4.17 MB/s 1.42 MB/s 1.19 MB/s
Web browsing with 3 tabs 15.91 pages/s16.26 pages/s7.67 pages/s5.15 pages/s13.36 pages/s12.91 pages/s 3.88 pages/s 2.83 pages/s 3.34 pages/s
System storage - adding music 1.41 MB/s1.41 MB/s1.40 MB/s1.39 MB/s1.39 MB/s1.14 MB/s 1.32 MB/s 1.21 MB/s 1.15 MB/s
Text editing 12.72 operations/s12.59 operations/s6.96 operations/s3.88 operations/s10.29 operations/s10.54 operations/s 3.20 operations/s 1.65 operations/s 2.92 operations/s
System storage - starting applications10.64 MB/s54.32 MB/s53.25 MB/s51.81 MB/s43.61 MB/s1.77 MB/s 7.94 MB/s 2.48 MB/s 1.78 MB/s
Web browsing 1 8.75 pages/s8.37 pages/s4.37 pages/s5.15 pages/s6.40 pages/s 9.37 pages/s 2.32 pages/s 2.04 pages/s 2.19 pages/s
Web browsing 2 10.95 pages/s10.85 pages/s5.38 pages/s4.69 pages/s8.89 pages/s 9.61 pages/s 2.45 pages/s 2.11 pages/s 2.26 pages/s
Graphics - DirectX 10 - texture fill 3.98 fps3.24 fps2.64 fps1.43 fps2.77 fps24.31 fps 4.21 fps 3.62 fps 3.5 fps
Graphics - DirectX 10 - color fill 1.01 fps0.87 fps1.05 fps0.76 fps1.02 fps 3.16 fps 0.49 fps 0.64 fps 0.41 fps
Graphics - DirectX 10 - POM 3.45 fps3.91 fps1.42 fps0.90 fps1.52 fps29.65 fps 2.89 fps 1.96 fps 2.41 fps
Graphics - DirectX 10 - GPU cloth 22.58 fps20.24 fps13.78 fps3.08 fps13.03 fps29.66 fps 11.26 fps 5.26 fps 4.02 fps
Graphics - DirectX 10 - GPU particles 17.81 fps16.13 fps11.01 fps2.72 fps9.90 fps32.13 fps 4.73 fps 5.92 fps 4.09 fps
Graphics - DirectX 10 - Perlin noise 9.92 fps8.44 fps3.32 fps1.49 fps3.46 fps52.81 fps 6.01 fps 1.55 fps 5.16 fps
Video transcoding - high quality 3905.56 kB/s3884.44 kB/s363.82 kB/s203.75 kB/s651.06 kB/s2791.99 kB/s 163.75 kB/s 176.78 kB/s 192.71 kB/s
System storage - video editing 21.97 MB/s22.62 MB/s22.27 MB/s22.05 MB/s21.52 MB/s13.38 MB/s 17.29 MB/s 17.15 MB/s 12.09 MB/s
System storage - Windows Media Center 8.26 MB/s8.26 MB/s8.22 MB/s8.21 MB/s7.92 MB/s7.44 MB/s 7.91 MB/s 7.72 MB/s 6.64 MB/s

The unit didn't perform quite as well as a similarly configured DS81 in these tests. The main reason behind such a performance is the low system-storage score. It is 1617 performance points lower than that of the DS81. We don't have any explanation as to why since we used exactly the same SSD with both barebones. That said, the XH97V's overall PCMark 07 performance is the second-best among all Shuttle barebones we have tested so far.

3D Mark 06



Second place here, it overtakes the DS81 by only a few points.

Power Consumption





Its increased power consumption is mainly the CPU's fault since, as we saw in our review of the DS81, the G3258 isn't all that energy efficient. Yet these power-consumption numbers are all lower than with the DS81; that is, except for in standby. Please remember that we used the exact same CPU for both units.

CPU Utilization



Temperatures



The better cooling system lead to an 11°C difference as compared to the DS81 with the same configuration, which is quite a difference!

Noise Output

We used a Class 1 Bruel & Kjaer 2250-L G4 Sound Analyzer, which we equipped with a type 4189 microphone that features a 16.6-140 dBA-weighted dynamic range, and placed it one meter away from the XH97V for these measurements. Ambient noise was below 20 dBA while we took these noise measurements and ambient temperatures hovered at around the 25°C mark. We took measurements in idle mode and while the 3DMark06 benchmark was running.



The XH97V features a very silent operation, although we used a CPU with a higher TDP, and it definitely consumed a considerable amount of energy, especially under load. The unit's own heatpipe-cooling system obviously works incredibly well, which has the fans spin at low speeds so long as the CPU's and VGA's utilization is low.
