Advanced Transient Response Tests

In these tests, we monitor the response of the PSU in two different scenarios. First, a transient load (10 A at +12V, 5 A at 5V, 5 A at 3.3V, and 0.5 A at 5VSB) is applied to the PSU for 200 ms while the latter is working at a 20% load state. In the second scenario, the PSU, while working at 50% load, is hit by the same transient load. In both tests, we measure the voltage drops that the transient load causes using our oscilloscope. The voltages should remain within the regulation limits defined by the ATX specification. We must stress here that the above tests are crucial since they simulate transient loads that a PSU is very likely to handle (e.g., booting a RAID array, an instant 100% load of CPU/VGAs, etc.). We call these tests "Advanced Transient Response Tests", and they are designed to be very tough to master, especially for PSUs with capacities lower than 500 W.





With the 3.3V rails as the only exception deviating by over 5% during the second test, all the other rails exhibited well-controlled voltage drops at dynamic loads. Also, all rails kept their readings within the respective ranges as defined by the ATX spec, so the PSU passed all the above tests successfully. These are very good news for such a budget unit with a relatively low capacity, showing that even cheap PSUs can achieve decent results through a proper design. The question that arises, though, is for how long they will keep performing that well since budget components, especially capacitors, age much faster than higher quality ones to inevitably lose their initially good performance.


Below, you will find the oscilloscope screenshots that we took during Advanced Transient Response Testing.

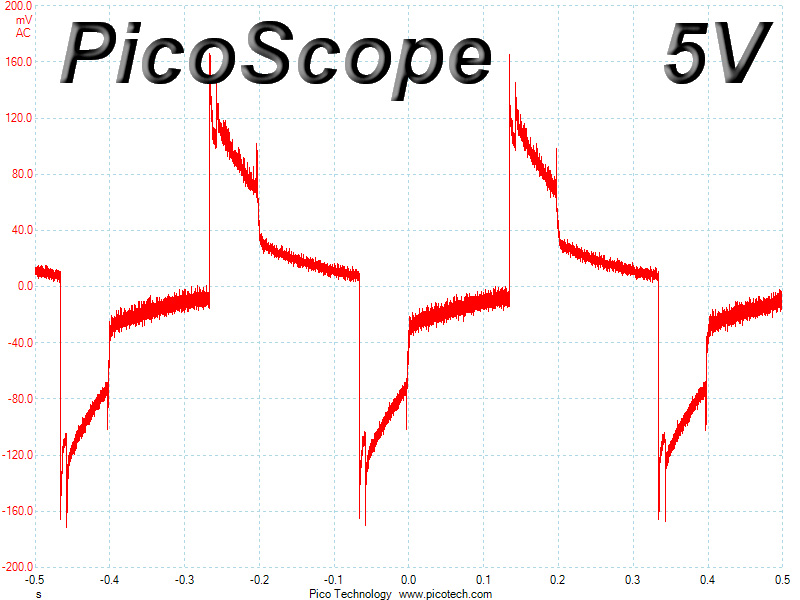

Transient Response at 20% Load

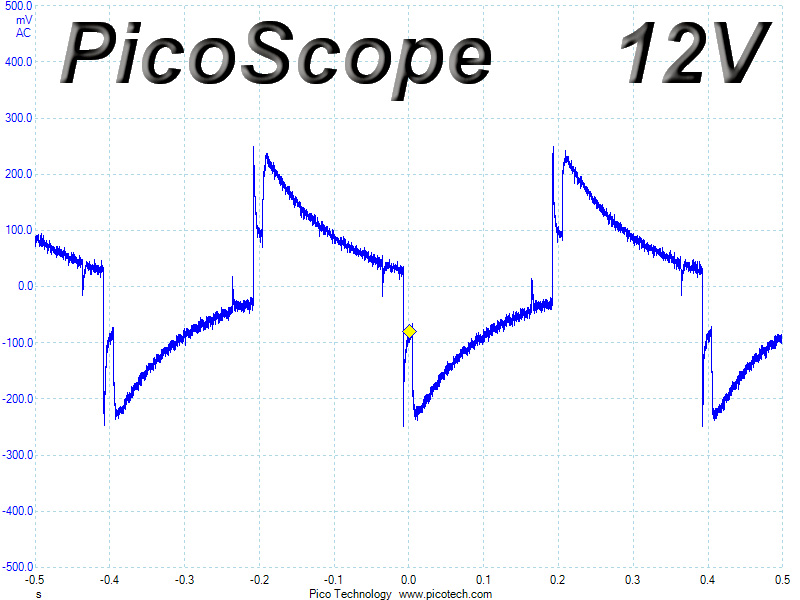

Transient Response at 50% Load

Turn-On Transient Tests

We measure the response of the PSU in simpler scenarios of transient loads—during the power-on phase of the PSU—in the next set of tests. In the first test, we turn the PSU off, dial the maximum current that the 5VSB can output, and then switch on the PSU. In the second test, we dial the maximum load that +12V can handle and start the PSU while the PSU is in standby mode. In the last test, while the PSU is completely switched off (we cut off power or switch off the PSU's on/off switch), we dial the maximum load that the +12V rail can handle before switching the PSU on from the loader and restoring power. The ATX specification states that recorded spikes on all rails should not exceed 10% of their nominal values (e.g., +10% for 12V is 13.2V and 5.5V for 5V).


We measured a tiny voltage overshoot at 5VSB and a larger one during the last test. Thankfully, both were way below the corresponding limits, so they are of no harm to the unit or the system that is being fed; good but not perfect.
