Advanced Transient Response Tests

In these tests, we monitor the response of the PSU in two different scenarios. First, a transient load (10 A at +12V, 5 A at 5V, 5 A at 3.3V, and 0.5 A at 5VSB) is applied to the PSU for 200 ms while the latter is working at 20% load. In the second scenario, the PSU, while working at 50% load, is hit by the same transient load. In both tests, we measure the voltage drops the transient load causes by using our oscilloscope. The voltages should remain within the regulation limits defined by the ATX specification. We must stress here that the above tests are crucial since they simulate transient loads a PSU is very likely to handle (e.g., booting a RAID array, an instant 100% load of CPU/VGAs, etc.). We call these tests "Advanced Transient Response Tests", and they are designed to be very tough to master, especially for PSUs with capacities below 500 W.





Performance on +12V is good; however, we expected even smaller deviations because of the PSU's relatively high capacity and digital control. Deviations on the other rails are pretty low, too, since voltage drops were always kept under control and never reached dangerously low levels.


You will find the oscilloscope screenshots we took during Advanced Transient Response Testing below.

Transient Response at 20% Load

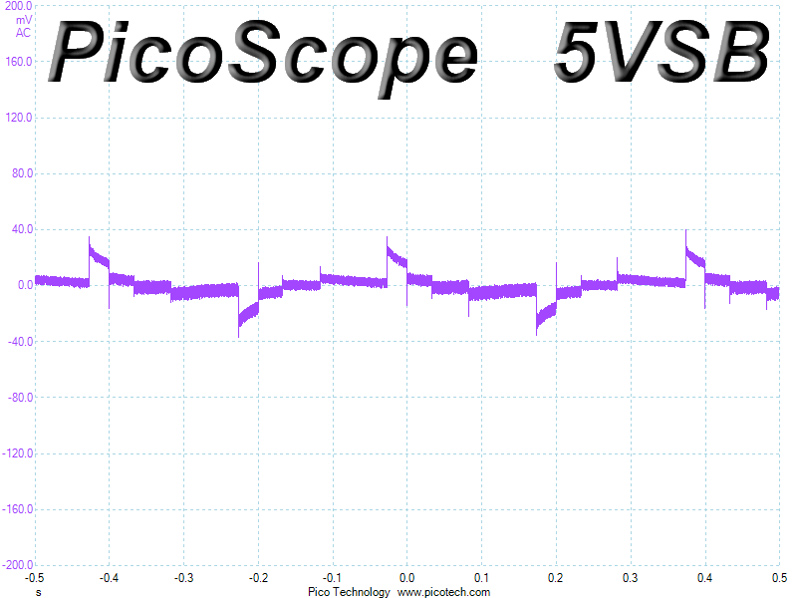

Transient Response at 50% Load

Turn-On Transient Tests

We measure the response of the PSU in simpler scenarios of transient loads—during the power-on phase of the PSU—in the next set of tests. In the first test, we turn the PSU off, dial the maximum current he 5VSB can output, and then switch on the PSU. In the second test, we dial the maximum load +12V can handle and start the PSU while the PSU is in standby mode. In the last test, while the PSU is completely switched off (we cut off power or switch the PSU off through its on/off switch), we dial the maximum load the +12V rail can handle before switching the PSU on from the loader and restoring power. The ATX specification states that recorded spikes on all rails should not exceed 10% of their nominal values (e.g., +10% for 12V is 13.2V and 5.5V for 5V).



The rise time of the 5VSB rail is a couple ms higher than the maximum allowed ATX time, but we don't think that its slightly higher rise time will cause any problems. The slopes on all three tests were thankfully smooth enough, and we didn't notice any voltage overshoots or spikes. All in all, satisfactory performance here.
