Monday, March 8th 2010
Spire Announces TherMax Eclipse II CPU Cooler
Following the success of the original DT heat-pipe TherMax series, we're proudly introducing the TherMax Eclipse II. Powered by Innovation and with awesome looks this CPU Cooler is one supreme performer. Equipped with five 8mm Direct Touch U-Shaped sintered powder heat-pipes combined with black-nickel coated stamped heat-sink fins to best preserve killer looks. The TherMax Eclipse II is ready to best cool the extreme hot 130W to 150W Micro-processors made by Intel and AMD.
Universally compatible with the Intel 1156/1366/775 platforms in combination with the AMD AM3/AM2/940/939 platforms giving professionals and gamers a huge scope to utilize this impressive Diablo. Another welcome new feature are the possibility of mounting two fans simultaneously for even better cooling results. Simply installed with the included Anti-vibe rubber fan mounts installation is made tool-free and easy. This towering cooler is build to deliver the best thermal performance - guaranteed.
Main Features:
The TherMax Eclipse II CPU Cooler is compatible with the latest ATX boards based on the Intel and AMD Micro-processors sockets 775/1156/1366 for Intel and AM2/AM3/940/939 for AMD.
Product Includes:
TherMax Eclipse II heat-sink, Two (2) BlackStar 120mm DC Fans, 8 Anti-Vibe rubber fan mounts, PCI Fan speed control unit, BlueFrost thermal interface compound, Intel universal mounting set, AMD universal mounting set, Motherboard back-plate, User installation manual, Warranty registration card.
Availability:
The TherMax Eclipse II is now available from our factory in Shenzhen, China. Distribution through Spire branch offices locations will commence half March 2010. MSRP USD 52.99 / EURO 38.95
Universally compatible with the Intel 1156/1366/775 platforms in combination with the AMD AM3/AM2/940/939 platforms giving professionals and gamers a huge scope to utilize this impressive Diablo. Another welcome new feature are the possibility of mounting two fans simultaneously for even better cooling results. Simply installed with the included Anti-vibe rubber fan mounts installation is made tool-free and easy. This towering cooler is build to deliver the best thermal performance - guaranteed.
- Five 8mm all copper U-shaped direct touch heat-pipes
- Straight lined fins and heat-pipes allowing air to easily pass through
- 46 stamped aluminum wide fins for best surface rate
- Dimpled surface fin for increased heat transfer rate
- Black-Nickel coated heat-sink to preserve killer looks
- Two (2) 120mm BlackStar 9 blade fan design
- PCI Fan speed control unit included
- High Quality, Long MTBF Japanese No.1 Ball bearing
- Anti-Vibe universal rubber fan mountings (crews)
- Supports AM2/AM3939/940 and 775/1156/1366
- High performance up to Intel Core i7 Extreme 150W
The TherMax Eclipse II CPU Cooler is compatible with the latest ATX boards based on the Intel and AMD Micro-processors sockets 775/1156/1366 for Intel and AM2/AM3/940/939 for AMD.
Product Includes:
TherMax Eclipse II heat-sink, Two (2) BlackStar 120mm DC Fans, 8 Anti-Vibe rubber fan mounts, PCI Fan speed control unit, BlueFrost thermal interface compound, Intel universal mounting set, AMD universal mounting set, Motherboard back-plate, User installation manual, Warranty registration card.
Availability:
The TherMax Eclipse II is now available from our factory in Shenzhen, China. Distribution through Spire branch offices locations will commence half March 2010. MSRP USD 52.99 / EURO 38.95
25 Comments on Spire Announces TherMax Eclipse II CPU Cooler
I understand it may be cheaper to manufacture, when they are straight, but it must loose performance.
The best coolers out there don't use "direct heatpipe contact" for a reason. They've got a small block of copper that will spread the heat for cores to all heatpipes (take a look at TRUE).
Most of CPU heat is generated right in the middle of the package...
In case of this cooler (and other "direct h-pipe touch") the outside heatpipes have barely anything to do...
If only someone could design a cooler which has more heatpipes cramped in the center, touching cores... not edges of CPU package.
Single huge heatpipe maybe ?
Cheers,
Oh right the 3Rsystem Iceage Boss II.
Looks like the same damn thing to me... heatpipe configuration, dimpled fins, etc etc.
Edit: Well as for the cooler... It seems to be a combination of the TRUE, Megahalems, and Thor's Hammer and Xiggy 1283. It's got the nickel plated fins with a heatsink between the fins and contact area like the Hammer, the girth of a TRUE, an inward middle similar to the Megahalems, and rubber fan mounts like the 1283. More so they added something I've never seen before, dimpled fins. According to FrostyTech this is a very good cooler, one of the best for AMD.
check out the "coolink corator ds" for an interesting take on DHT, its almost like they've poured molten copper onto the heatpipes so its fills the gaps but there's also no gap between the copper flat base and the pipes due to how they've done it.
It works pretty damn well as well, according to one review ( the only one I've found so far) its only 1c behind the big Noctua 14cm cooler but its £20 cheaper :D
Or a single massive heatpipe made flat ( people say its hard to do but I've managed to flatten and bend copper pipes by hand so I imagine if they could adapt their machines they could do it this way too)
Oh thought I'd add, the corator fan isn't the greatest one in the world so may perform better with a Noctua fan or something like a 1850rpm gentle typhoon etc.
They just melted a little bit the base and then brushed it so it looks gapless, but still DHT.
Look at tis image
PD: Since there is a lot of fin spacing on the corator, high Pressure fans wont give any better temps (i.e. gentle typhoon), but maybe high RPM fans would do the job.
this cooler is made by China pccooler with a little change at cooler and color Just this please see below link about pccooler Hp-1216x
www.pccooler.cn/cn/proview.php?pro_typeid=248&pro_typeid2=250&pro_id=1540
Those 2 outside heatpipes on that Spire aren't doing to much work.
3Rsystem Iceage 120 Boss II
XtremeGear HP-1216B
www.zaward.com/products_detail.php?Pid=2240
I've been using them on builds for a while and can't really fault them.
:toast:
Of course they're different but still, dimples.
Take a look at one of the best coolers out there... TRUE.
Thermalright actually removed some of the fins in latest revision (rev A/B -> rev C), to make airflow less restricted, and actually gained some cooling performance !
Designing best cooler is not trivial. There's a sweet spot between amount of surface area, airflow friction, fan CFM and fan characteristics that you'll never see on its specs... like a function of flow to pressure difference (pressure difference largely depends on how airflow resistant the radiator is).
To make a nice cooler you need lots of heatpipes, lots of fins and big-ass fan.
But to make the best one, you need science.
But you could make a wide fin spacing 92mm heatsink as effective as a 120mm heat-sink with the zigzag design + high flow fans : ]
Hell I've got a 70mm heatsink that outperforms my old TRUE 120ex by shit tons, whilst it doesn't have zigzag fins it uses a very different design to most coolers I've seen.
Heatsinks manufacturers need to experiment more.
...and how loud it is :)
OK. Seriosly... even if it's made of pure silver with platinum coating, I still want to know. :D
Also unfortunately not silver, but second best! Gota say though, platinum coating would make the cooling worse by the way, its useless for heatinks! ( and expensive)
Excuse the mess in this shot XD ( current set up am yet to mod the case)
* fan has been changed to AMD stock 70mm fan.
** this photo was taken on another one of my rigs
Beat True 120 by 15c by the by. on cpu in systems specs same clocks/volts
Hell its only 10 degrees or so( underload and and idle) warmer then the water set up I have ( tripple radiator xspc restop with liang pump, dtek fuzion v2)
Also I'm comparing to first hand experience : ]
Been through a lot of coolers.
You have to bare in mind my domino ALC was modded, stock it performed around the same.
Will see what I can do about getting a picture without the shroud moving the system into another case so I can mod/paint it soon so will do it then.
So much kerfuffle getting the cooler on and off as the mounting mechanism is broken.
Oh temperatures of the little 70mm cooler ambient temperatures were around 18-20 c
( cpu is down-clocking itself, its actually at 3ghz)

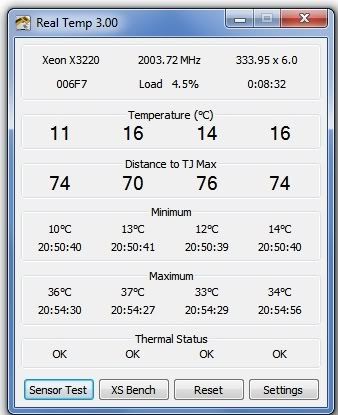

Here's temps from my water-cooling setup, although bare in mind ambients were around 10c if not less ( opened all the windows!)
