Antec High Current Gamer HCG-520 520W Review

Value & Conclusion »

Ripple Measurements

In the following table you will find the ripple levels that we measured on the main rails of HCG-520. According to ATX specification the limits are 120 mV (+12V) and 50 mV (5V & 3.3V).

Ripple Measurements
Test12 V5 V3.3 VPass/Fail
20% Load7.0 mV3.0 mV5.0 mVPass
40% Load9.2 mV3.8 mV5.8 mVPass
50% Load10.4 mV4.2 mV6.2 mVPass
60% Load11.4 mV4.6 mV6.4 mVPass
80% Load13.6 mV4.8 mV8.4 mVPass
100% Load17.0 mV5.8 mV11.8 mVPass
Crossload 113.4 mV21.6 mV5.8 mVPass
Crossload 218.2 mV4.4 mV13.2 mVPass

Ripple and noise suppression are excellent throughout all loads/tests. Since Seasonic is the OEM of this PSU, this terrific performance, especially for a low budget PSU, didn't come as much of a surprise.

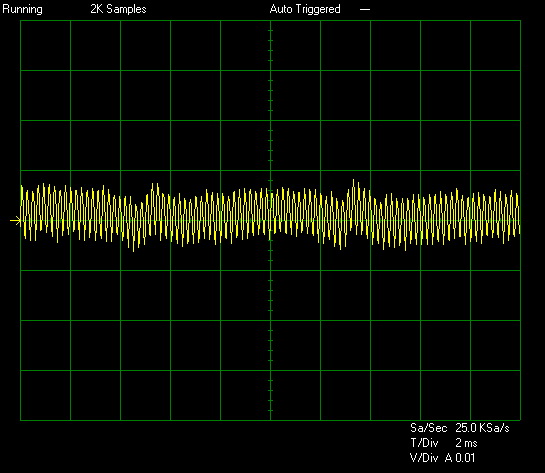

Ripple at Full Load

In the following oscilloscope screenshots you can see the AC ripple and noise that the main rails registered (+12V, 5V, 3.3V). The bigger the fluctuations on the oscilloscope's screen the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals to 0.01V) as standard but sometimes we are forced to use 0.02 V/Div, meaning that the fluctuations will look smaller but actually this wont be the case. For the first screenshot we used 0.02 V/Div, so actually the registered ripple is much bigger than it seems (compared to the other screenshots where 0.01 V/Div was used).

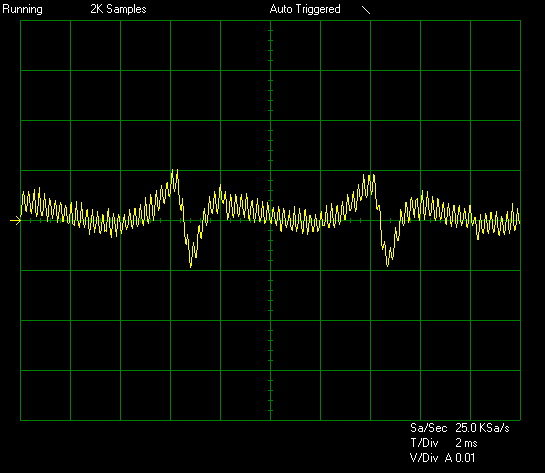

Ripple at Crossload 1

For the first screenshot we used again 0.02 V/Div. The order of images is +12V, 5V and 3.3V.

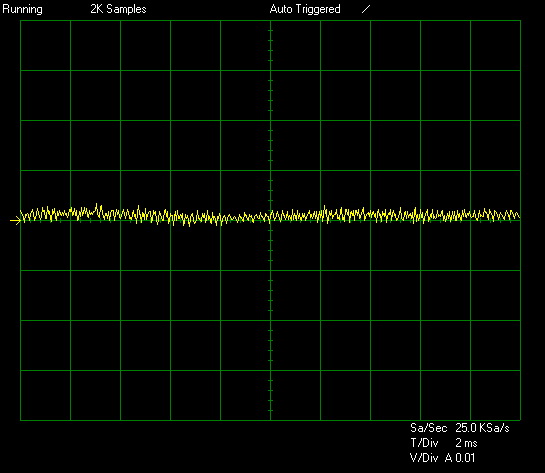

Ripple at Crossload 2

For the first screenshot we used again 0.02 V/Div. As above the order of images is +12V, 5V and 3.3V.
