ASRock B650E Steel Legend WiFi Review
Installation & Test Setup »Board Software

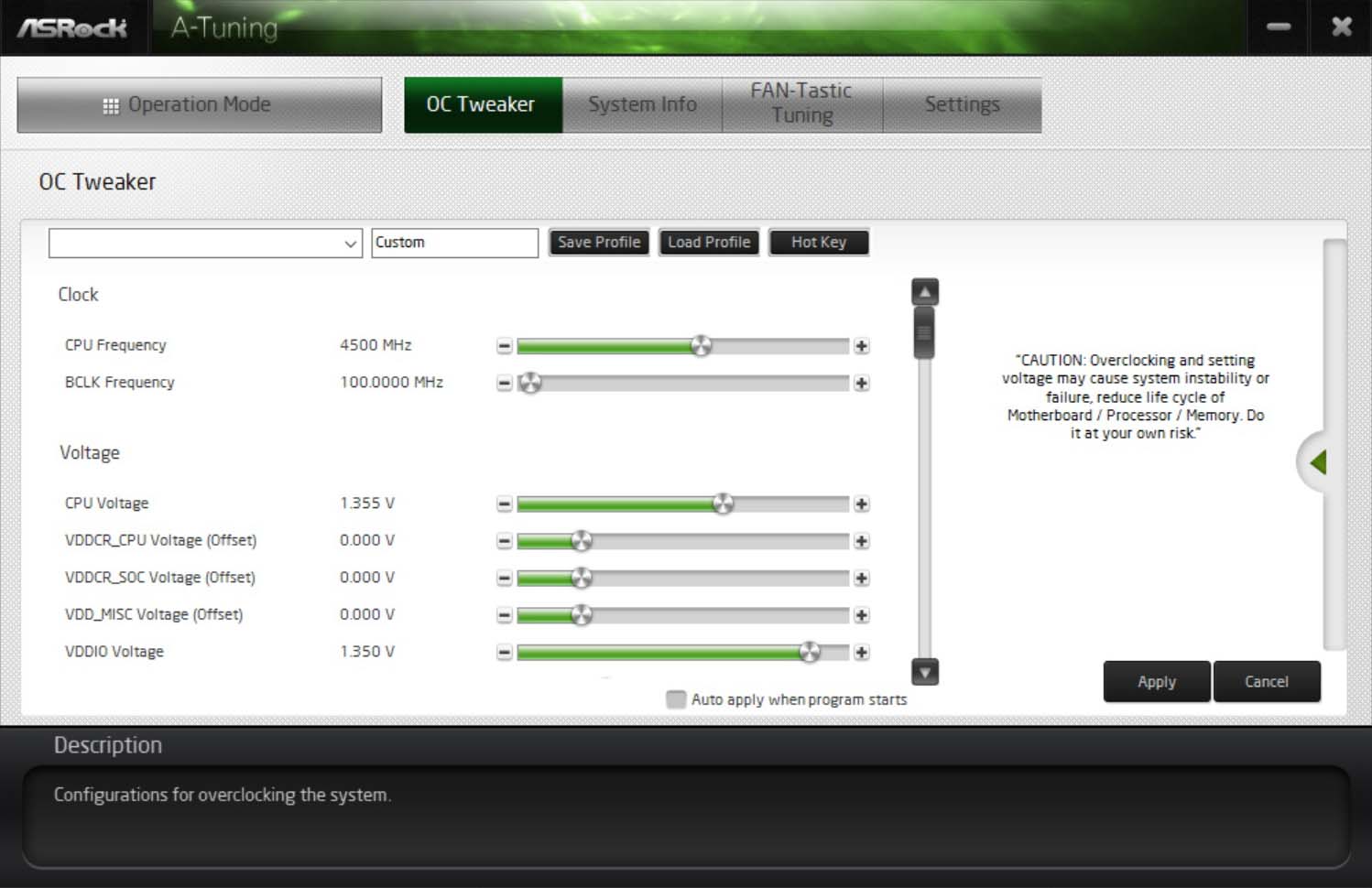

ASRock B650E Steel Legend WiFi software hub for all things related to overclocking and fan speed control is called A-Tuning. All things related to CPU overclocking can be found here, including voltage control for those brutish all-core overclocks. Other tabs include System Info for temperature and voltage readouts, and a FAN-Tastic Tuning section for setting up custom fan profiles for each fan.
ASRock Polychrome Sync should be installed if one wants control over the RGB lighting. There are open-source alternatives, but those are not ASRock-branded and may not work as intended.
Fan Control
Fan control on the ASRock B650E Steel Legend WiFi can be accessed in the BIOS and through software as well.
The ASRock B650E Steel Legend WiFi has a total of six 4-Pin PWM headers.
| Connector | CPU_FAN | CPU_FAN2 | CHA_FAN1-4 |
|---|---|---|---|
| Maximum Current | 1A | 2A | 2A |
| Maximum Power | 12W | 24W | 24W |
