ASUS GeForce RTX 4060 Dual OC Review - The Best RTX 4060

Circuit Board Analysis »

Packaging

Package Front
Package Back


The Card

Graphics Card Front
Graphics Card Back
Graphics Card Front Angled

The ASUS Dual OC looks bulky and muscular. The color theme consists of black, with some gray highlights. While main cooler shroud is made of plastic, the backplate is metal.

Graphics Card Dimensions

Dimensions of the card are 23.0 x 12.0 cm, and it weighs 630 g.

Graphics Card Height
Graphics Card Back Angled

Installation requires three slots in your system.

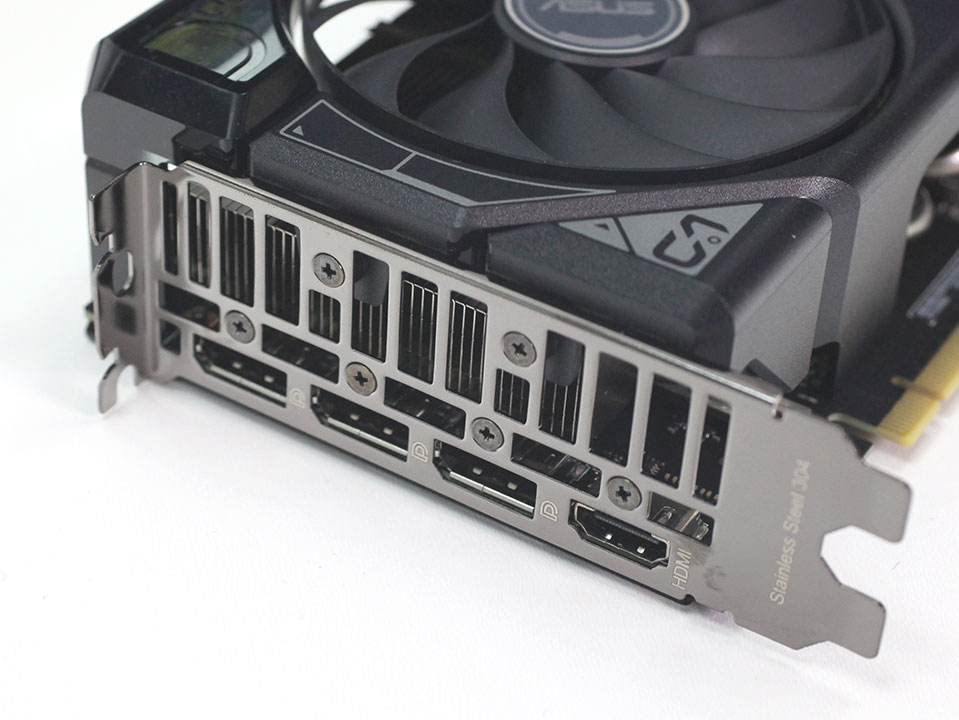

Monitor Outputs, Display Connectors

Display connectivity includes three standard DisplayPort 1.4a ports and one HDMI 2.1a (same as Ampere).

The new 8th Gen NVENC now accelerates AV1 encoding, besides HEVC. You also get an "optical flow accelerator" unit that is able to calculate intermediate frames for videos, to smooth playback. The same hardware unit is used for frame generation in DLSS 3.

Graphics Card Power Plugs

ASUS opted for a single 8-pin PCIe power connector, this configuration is good for up to 225 W.


A dual BIOS feature is available on the card, which lets you switch from the default "Performance" BIOS to a "Quiet" BIOS with a more relaxed fan curve.

Teardown

Graphics Card Cooler Front
Graphics Card Cooler Back

ASUS lets you remove the main cooler shroud, so the fans can be cleaned and replaced easily, without disturbing the thermal paste on the main cooler.

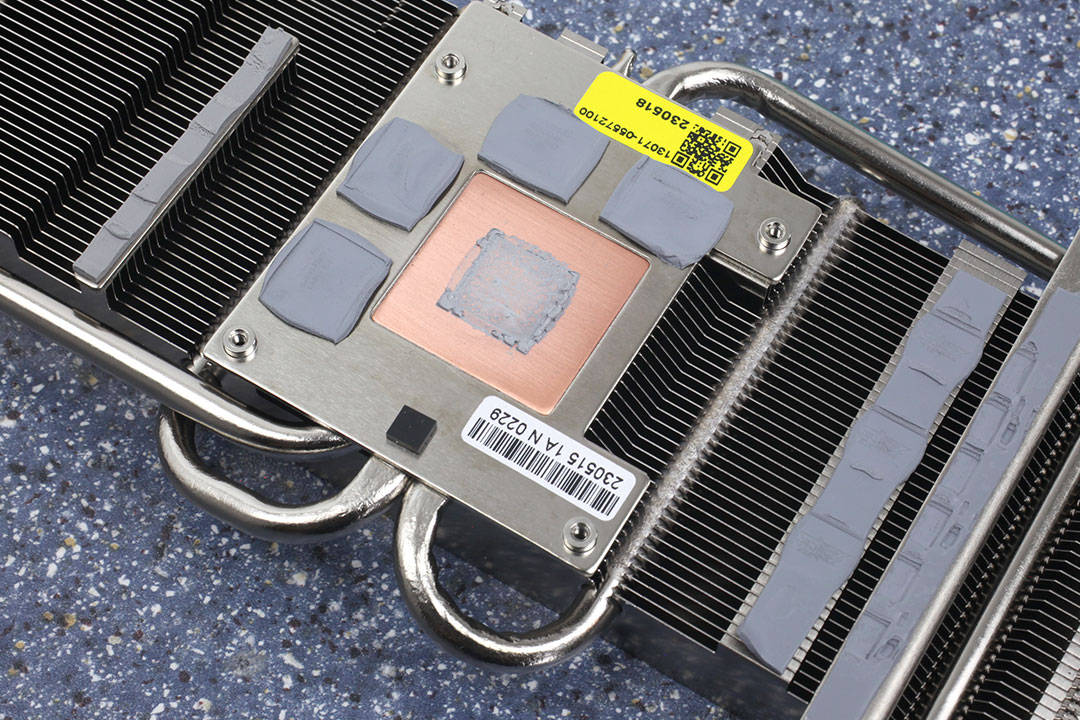

The thermal solution on the ASUS Dual uses a copper base, paired with three heatpipes. The main heatsink also provides cooling for the memory chips and VRM circuitry.


The backplate is made of metal and protects the card against damage during installation and handling.
