The Card

The ASUS GTX 780 Ti DC II OC comes in a singular color, black, but you can customize its look by using either the red or golden stickers that are included in the box. I personally like its clean black cooler, but these stickers basically give you three different color choices. Dimensions of the card are 29 x 15 cm.


Installation requires two slots in your system.


Display connectivity options include two DVI ports, one DisplayPort, and one HDMI port. You may use all outputs at the same time, so triple-monitor surround gaming is possible with one card.

The GPU also includes an HDMI sound device. It is HDMI 1.4a compatible, which includes HD audio and Blu-ray 3D movies support.


Two SLI connectors let you combine up to four GTX 780 Ti cards in a multi-GPU SLI configuration. Note how its SLI fingers are place higher on the card than is normally the case, so there are no clearance issues due to the taller DirectCU cooler.

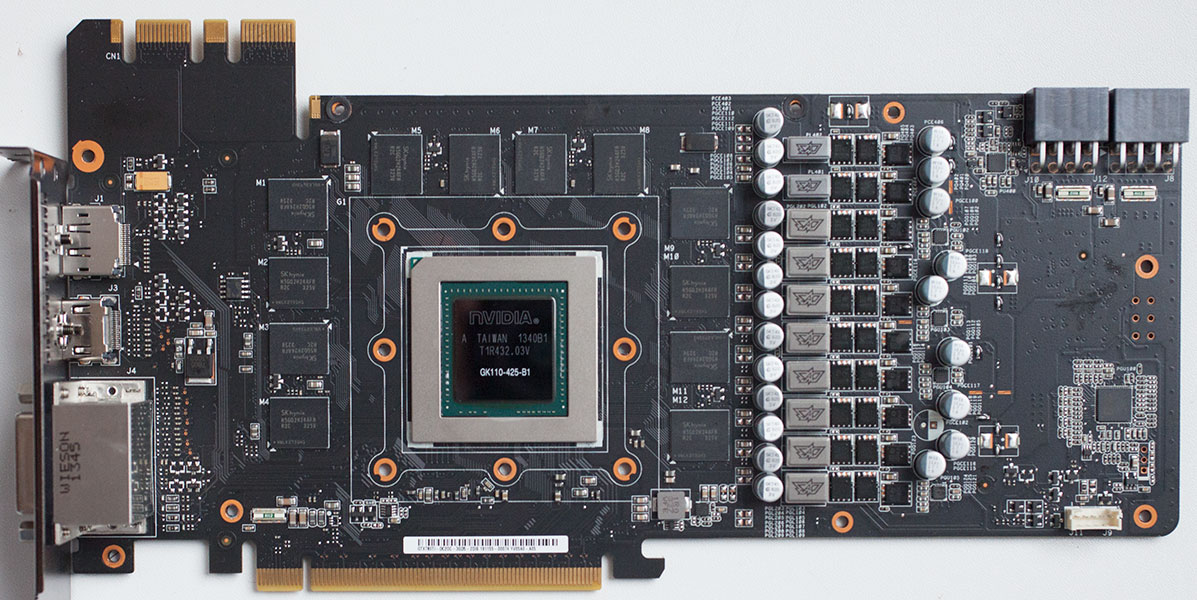

Pictured above are the front and back, showing the disassembled board. High-res versions are also available (front, back).
