Build Quality

Overall build quality is solid. There is no rattle when shaking the mouse. When applying lateral pressure, minor creaking but no flexing of the shell can be observed. Activating the side buttons by squeezing the sides is impossible. Lastly, accidental clicks when slamming down the mouse do not occur.

Buttons

Main buttons on the M68 Pro are good. Both buttons have moderate pre and post-travel, which is why button response is slightly dull. In addition, the right main button is significantly louder than the left one, though on the second sample I've tested, that is not the case. Despite being visually separated from the shell, button movement is low even when provoked. Button stiffness is medium. A pair of Huano switches (blue transparent shell, pink plunger) are used here.


Side buttons are good (forward button) to decent (back button). Pre-travel is low to moderate and post-travel low on the forward button, whereas the back button suffers from high pre and moderate post-travel, along with uneven actuation and an accordingly mushy response. Button size and placement are quite good, as actuation is possible rather easily by rolling one's thumb across. A set of Huano switches (yellow plunger) are used for these.

At the bottom of the mouse is a single button for cycling through the currently active function, which feels fine. A seemingly unbranded tactile switch is used for this one. The slider at the bottom switches between off-state, CPI control, polling rate control, and debounce time control. While fairly stiff, this slider also works just fine.

Scroll Wheel

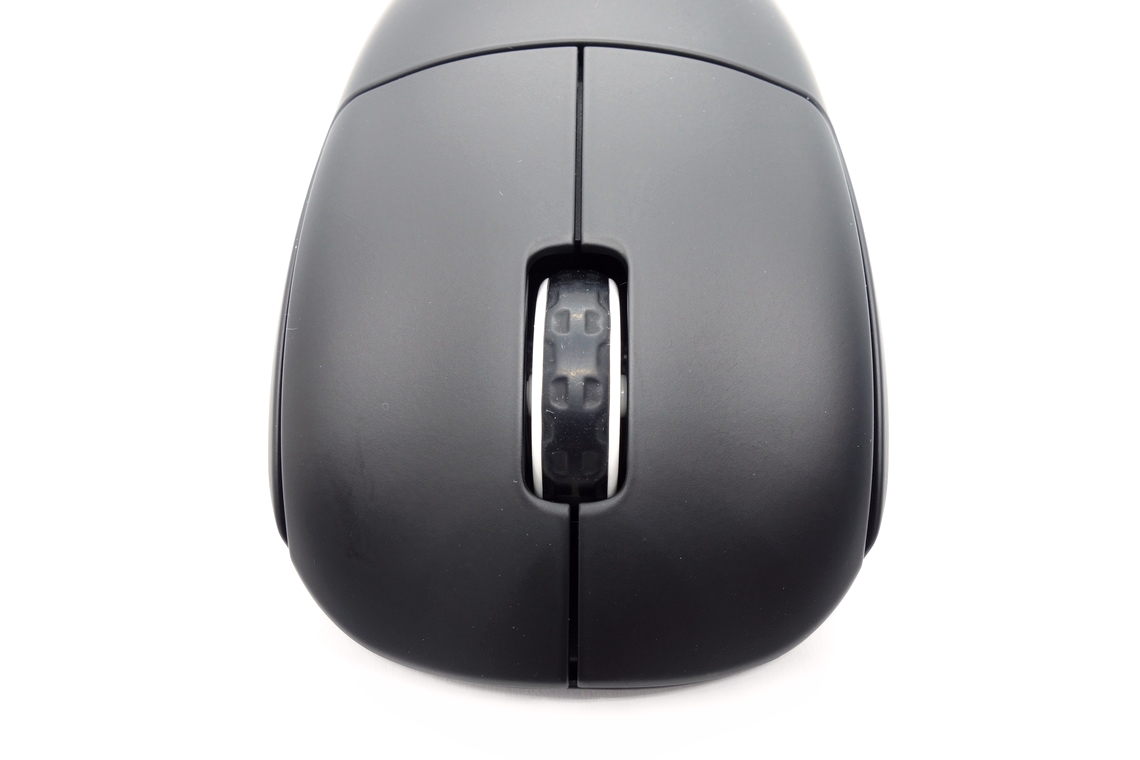

The scroll wheel is decent. Noise levels are appreciably low, though tactility is merely average, as the individual steps are somewhat lacking in separation. In addition, and this applies to both samples of the M68 Pro, but none of the M64 Pro, there is a grinding sound when scrolling up. The encoder comes from F-Switch (brown, green core) and has a height of 9 mm. The middle (scroll wheel) click requires high force for actuation. Another switch from Huano (green plunger) is used here.

Surface

The M68 Pro has a matte surface all over. Grip is fine, though it does attract fingerprints and dirt rather easily. It is fairly easy to clean, and there are virtually no signs of wear left after doing so. All in all, good materials.

Button Sound Test

Disassembly

Disassembling the M68 Pro is very easy. First, both skates along with the screws underneath them need to removed. After doing so, bottom and top shell are readily separated, though caution is advised when doing so to avoid ripping the cable connecting the two.

The internal design is fairly efficient. The side buttons sit on their own PCB screwed to the top shell and connected through a ribbon cable to the main PCB, while the battery is stuck to the bottom shell. Everything else sits on the somewhat spacious yet very thin main PCB, which has been affixed to the bottom with five screws. The MCU is a Nordic nRF52833, whose datasheet is found here. The Bluetooth capability of the chip remains unused. The production date for the side-button PCB is the 36th week of 2023.


As for the soldering and general quality of the PCB, I'm unable to find any noteworthy flaws.
