Chieftronic PowerPlay 1050 W Review

Name: Chieftronic PowerPlay 1050 W
Brand: Chieftronic
Price: 175 USD

crmaris

on May 25th, 2020,

in Power Supplies.

Manufacturer: Chieftronic

Efficiency »

Test Setup

Primary Rails Load Regulation

These charts show the voltage values of the main rails—recorded over a range from 60 W to the maximum specified load—and the deviation (in percent) for the same load range. Tight load regulation is an important characteristic for every power supply because it allows for constant voltage levels with changes in load.

5VSB Regulation

Load regulation is tight on all rails.

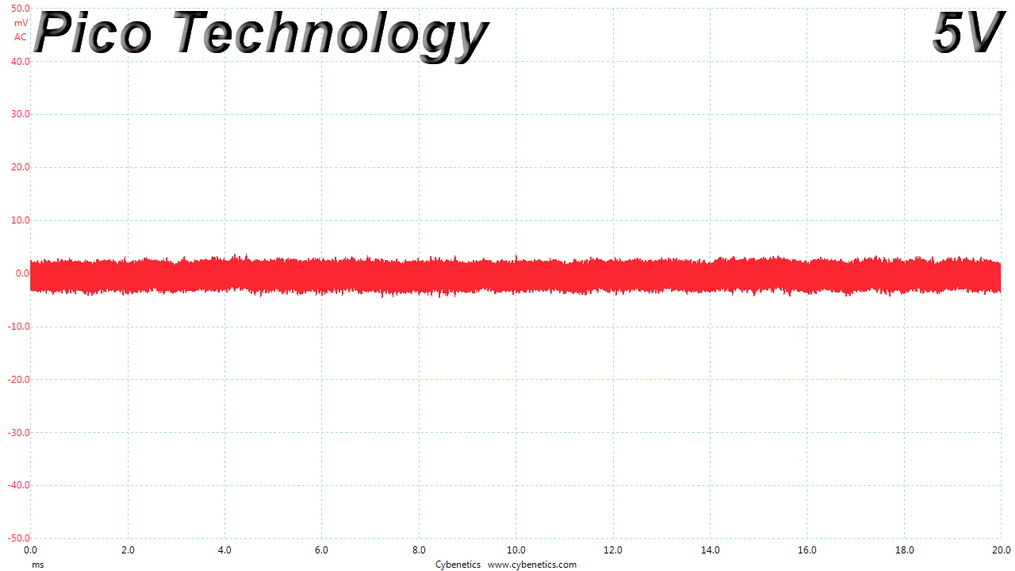

Ripple Measurements

Ripple represents the AC fluctuations (periodic) and noise (random) in the DC rails of PSUs. Ripple significantly decreases the life span of capacitors because it increases their temperature; a 10 °C increase can cut into a capacitor's life span by up to 50 percent. Ripple also plays an important role in overall system stability, especially when it is overclocked. The ripple limits according to the ATX specification are 120 mV (+12V) and 50 mV (+5V, +3.3V, and 5VSB).

Ripple Measurements - Chieftronic GPU-1050FC
Test	12 V	5 V	3.3 V	5VSB	Pass/Fail
10% Load	9.7 mV	4.6 mV	11.4 mV	4.9 mV	Pass
20% Load	22.9 mV	5.6 mV	11.2 mV	5.5 mV	Pass
30% Load	9.7 mV	5.6 mV	11.6 mV	6.0 mV	Pass
40% Load	11.7 mV	6.1 mV	11.7 mV	7.1 mV	Pass
50% Load	10.2 mV	6.7 mV	11.8 mV	7.3 mV	Pass
60% Load	10.8 mV	7.4 mV	12.2 mV	7.8 mV	Pass
70% Load	12.2 mV	8.8 mV	14.8 mV	9.1 mV	Pass
80% Load	13.9 mV	9.5 mV	19.2 mV	10.5 mV	Pass
90% Load	15.9 mV	10.0 mV	16.8 mV	10.7 mV	Pass
100% Load	23.3 mV	10.8 mV	17.7 mV	12.2 mV	Pass
Crossload 1	16.1 mV	6.5 mV	17.1 mV	5.7 mV	Pass
Crossload 2	20.2 mV	9.5 mV	14.3 mV	11.1 mV	Pass
