Packaging

The Card

Dimensions of the card are 33.0 x 14.4 cm, and it weighs 2448 g.


Installation requires four slots in your system.


Display connectivity includes three standard DisplayPort 1.4a ports and one HDMI 2.1a (same as Ampere).

The button that you see on the slot cover is to switch from the default BIOS to a "turbo" BIOS, which runs at higher clocks and power limit.

NVIDIA introduced the concept of dual NVDEC and NVENC Codecs with the Ada architecture. This means there are two independent sets of hardware-accelerators; so you can encode and decode two streams of video in parallel or one stream at double the FPS rate. The new 8th Gen NVENC now accelerates AV1 encoding, besides HEVC. You also get an "optical flow accelerator" unit that is able to calculate intermediate frames for videos, to smooth playback. The same hardware unit is used for frame generation in DLSS 3.

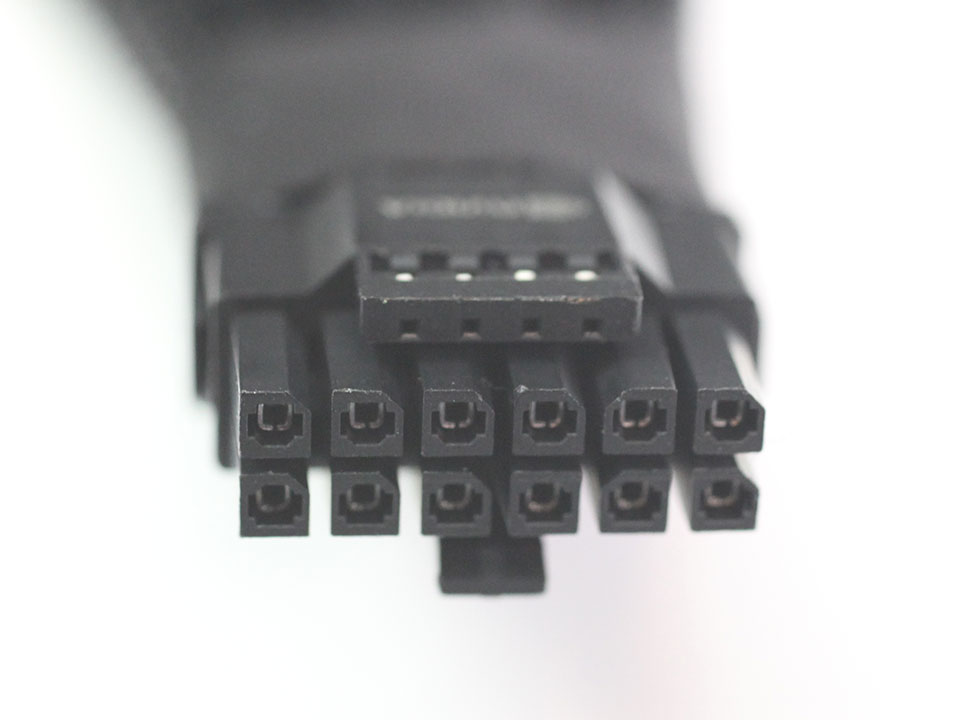

The card uses the new 12+4 pin ATX 12VHPWR connector, which is rated for up to 600 W of power draw. An adapter cable from 4x PCIe 8-pin is included, you can also run the card with just three 8-pins.

Teardown
