Test Setup
All measurements were performed using two Chroma 6314A mainframes equipped with the following electronic loads: six 63123A [350 W each], one 63102A [100 W x2], and one 63101A [200 W]. The aforementioned equipment is able to deliver 2500 W of load, and all loads are controlled by a custom-made software. We also used a
Picoscope 3424 oscilloscope, a Picotech
TC-08 thermocouple data logger, a Fluke 175 multimeter, and a Yokogawa WT210 power meter. We also included a wooden box, which, along with some heating elements, was used as a hot box. Finally, we had at our disposal four more oscilloscopes (Rigol 1052E and VS5042, Stingray DS1M12, a second Picoscope 3424), and a CEM DT-8852 sound level meter. You will find more details about our equipment and the review methodology we follow in
this article. Finally, we conduct all of our tests at 40°C-45°C ambient in order to simulate with higher accuracy the environment seen inside a typical system, with 40°C-45°C being derived from a standard ambient temperature assumption of 23°C and 17°C-22°C being added for the typical temperature rise within a system.
Primary Rails Voltage Regulation
The following charts show the voltage values of the main rails, recorded over a range from 60 W to the maximum specified load, and the deviation (in percent) for the same load range.
5VSB Regulation
The following chart shows how the 5VSB rail deals with the load we throw at it.
Hold-up Time
Hold-up time is a very important PSU characteristic representing the amount of time, usually measured in milliseconds, a PSU can maintain output regulations as defined by the ATX spec without input power. In other words, it is the amount of time the system can continue to run without shutting down or rebooting during a power interruption. The ATX spec sets the minimum hold-up time to 16 ms with the maximum continuous output load. In the following screenshot, the blue line is the mains signal and the yellow line is the "Power Good" signal. The latter is de-asserted to a low state when any of the +12V, 5V, or 3.3V output voltages fall below the undervoltage threshold, or after the mains power has been removed for a sufficiently long time to guarantee that the PSU cannot operate anymore.
The unit failed to comply with the ATX requirement by less than one millisecond, so it will inevitably lose some performance points here.
Inrush Current
Inrush current or switch-on surge refers to the maximum, instantaneous input current drawn by an electrical device when first turned on. Because of the charging current of the APFC capacitor(s), PSUs produce large inrush current right as they are turned on. Large inrush current can cause the tripping of circuit breakers and fuses and may also damage switches, relays and bridge rectifiers; as a result, the lower the inrush current of a PSU right as it is turned on, the better.
Registered inrush current was very low for a 750 W PSU, which is of course a very good thing.
Voltage Regulation and Efficiency Measurements
The first set of tests revealed the stability of the voltage rails and the efficiency of the RM750. The applied load was equal to (approximately) 20%, 40%, 50%, 60%, 80%, 100% and 110% of the maximum load the PSU can handle. We conducted two additional tests. In the first test, we stressed the two minor rails (5V and 3.3V) with a high load while the load at +12V was only 0.10 A. This test reveals whether the PSU is Haswell ready or not. In the second test, we dialed the maximum load the +12V rail can handle while the load on the minor rails is minimal.
Voltage Regulation & Efficiency Testing Data Corsair RM750 |
---|
Test | 12 V | 5 V | 3.3 V | 5VSB | Power (DC/AC) | Efficiency | Fan Speed | Fan Noise | Temp (In/Out) | PF/AC Volts |
20% Load | 10.641A | 1.972A | 1.959A | 0.986A | 149.74W | 89.63% | 0 RPM | 0 dBA | 40.82°C | 0.923 |
12.045V | 5.060V | 3.367V | 5.065V | 167.06W | 38.64°C | 230.2V |
40% Load | 21.699A | 3.976A | 3.950A | 1.186A | 299.70W | 91.95% | 0 RPM | 0 dBA | 41.25°C | 0.974 |
12.007V | 5.028V | 3.338V | 5.043V | 325.94W | 38.76°C | 230.1V |
50% Load | 27.129A | 4.974A | 4.951A | 1.590A | 374.64W | 92.06% | 0 RPM | 0 dBA | 44.64°C | 0.982 |
11.987V | 5.020V | 3.331V | 5.020V | 406.95W | 40.76°C | 230.2V |
60% Load | 32.582A | 5.979A | 5.950A | 2.000A | 449.59W | 91.94% | 0 RPM | 0 dBA | 46.71°C | 0.987 |
11.965V | 5.012V | 3.326V | 4.995V | 489.02W | 41.13°C | 230.1V |
80% Load | 43.702A | 8.010A | 7.970A | 2.415A | 599.51W | 91.28% | 1240 RPM | 40.5 dBA | 44.09°C | 0.992 |
11.925V | 4.991V | 3.311V | 4.967V | 656.75W | 48.58°C | 230.0V |
100% Load | 55.497A | 9.048A | 8.998A | 3.040A | 749.32W | 90.51% | 1390 RPM | 43 dBA | 44.42°C | 0.994 |
11.886V | 4.974V | 3.300V | 4.928V | 827.85W | 49.89°C | 230.0V |
110% Load | 61.910A | 9.058A | 9.012A | 3.044A | 824.24W | 90.14% | 1390 RPM | 43 dBA | 45.03°C | 0.995 |
11.865V | 4.968V | 3.295V | 4.923V | 914.45W | 50.81°C | 230.0V |
Crossload 1 | 0.096A | 18.014A | 18.002A | 0.004A | 151.50W | 84.42% | 650 RPM | 31.4 dBA | 42.63°C | 0.932 |
12.035V | 4.978V | 3.369V | 5.085V | 179.47W | 47.73°C | 230.3V |
Crossload 2 | 62.451A | 1.001A | 1.003A | 1.001A | 755.25W | 91.04% | 1390 RPM | 43 dBA | 45.49°C | 0.994 |
11.879V | 5.025V | 3.323V | 5.026V | 829.60W | 51.71°C | 230.0V |
The RM750 didn't have any problem whatsoever operating at very high ambient temperatures, and as you can see from the table above, the fan only spun at 80% load and above. However, given the not-so-good capacitor choice in the secondary side, the fan engaged rather late, which puts a ton of stress on the Chinese caps. These are rated at up to 105°C, but we still aren't so sure about their reliability under such tough conditions, especially in the long run. But Corsair apparently trusts these caps or they wouldn't provide this unit with a five year warranty.
Voltage regulation on all rails was good enough and can easily meet the mid-level competition, while overall efficiency was high, allowing the unit to easily clear Gold requirements at 115 VAC input. Finally, output noise is also kept at low levels, even with the fan spinning at full speed. Corsair meant business when they talked about super-quiet PSUs.

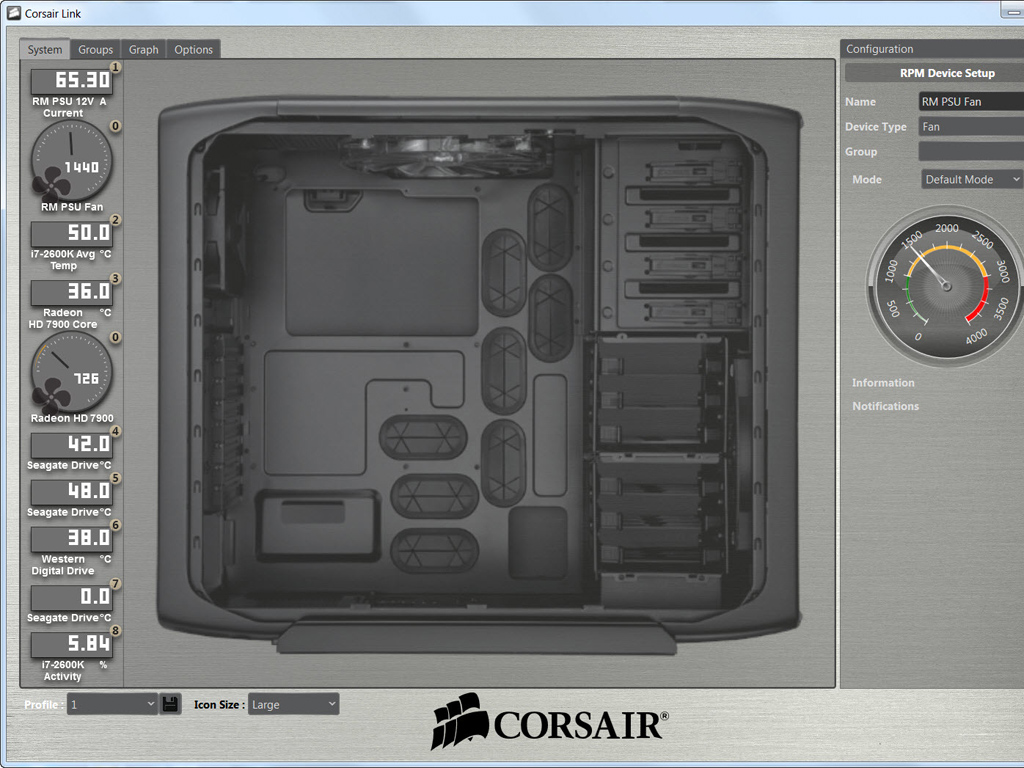

Corsair Link Screenshots
Several screenshots of the Corsair Link software, which we took during our test sessions, follow. The order of screenshots is the same as the order of tests in the above table (20% Load to Cross-load 2).
