EVGA GeForce RTX 2070 Super KO Review 29

EVGA GeForce RTX 2070 Super KO Review

Circuit Board Analysis »

Packaging

Package Front
Package Back


The Card

Graphics Card Front
Graphics Card Back
Graphics Card Front Angled

EVGA's card looks very similar visually to the company's other Turing cards. A backplate is not included.

Graphics Card Dimensions

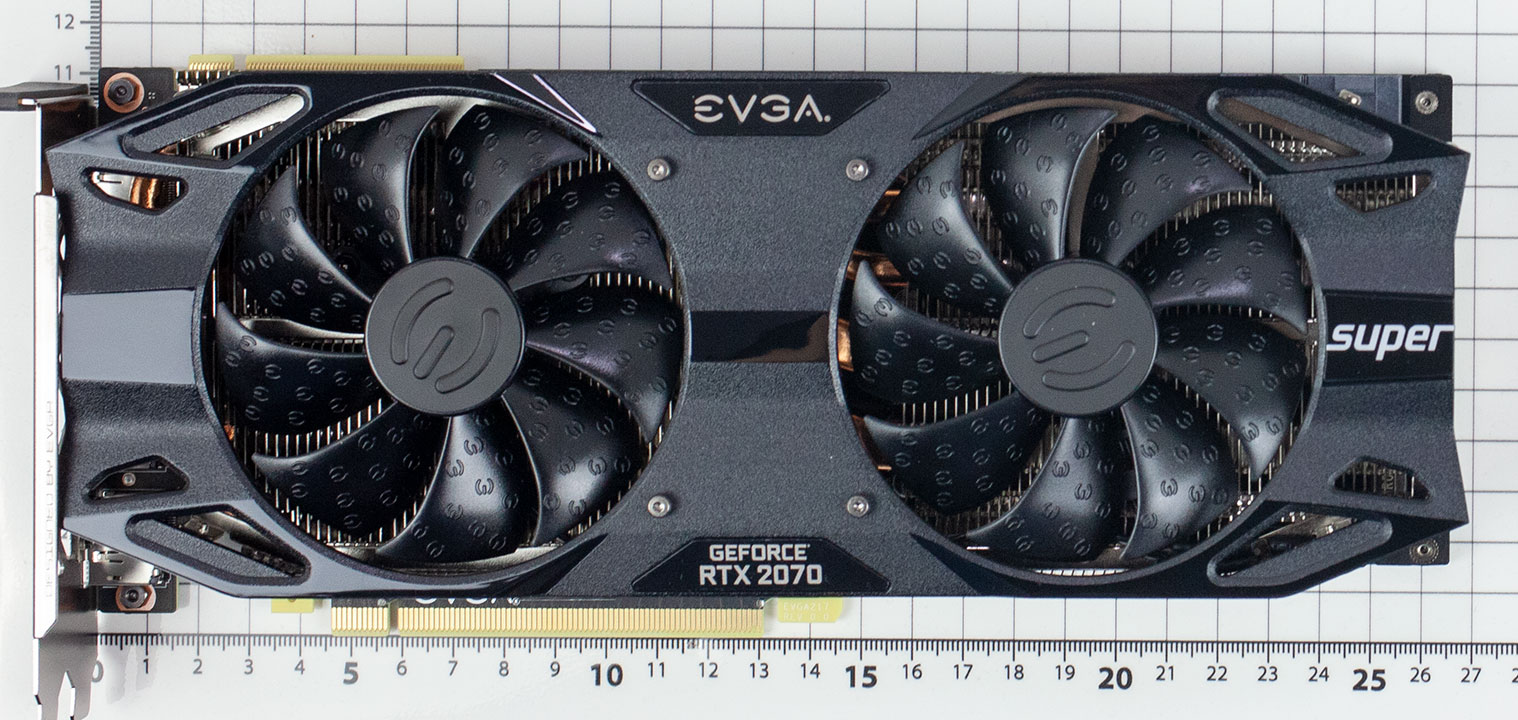

Dimensions of the card are 26 x 11.5 cm.

Graphics Card Height
Graphics Card Back Angled

Installation requires two slots in your system.

Monitor Outputs, Display Connectors

Display connectivity options include three standard DisplayPort 1.4a and an HDMI 2.0b.

Graphics Card Power Plugs

The board uses one 8-pin and one 6-pin power connector. This input configuration is specified for up to 375 watts of power draw.

Multi-GPU Area

With Turing, NVIDIA is using NVLink as a physical layer for its next-generation SLI technology. NVLink provides sufficient bandwidth for multi-GPU rendering at 8K 60 Hz, 4K 120 Hz, and other such bandwidth-heavy display resolutions. It's a point-to-point link between your GPUs, so latencies will be lower compared to pushing data through the PCI-Express bus.

Disassembly

Graphics Card Cooler Front
Graphics Card Cooler Back

EVGA is using six heatpipes on their thermal solution, which is paired with a copper base to maximize heat transfer. This piece of the cooler also provides cooling for parts of the VRM circuitry.


Once the main heatsink is removed, a second metal plate becomes visible, which provides cooling for the memory chips and VRM circuitry.
