Advanced Transient Response Tests

In these tests, we monitor the response of the PSU in two different scenarios. First, a transient load (10 A at +12V, 5 A at 5V, 5 A at 3.3V, and 0.5 A at 5VSB) is applied to the PSU for 200 ms while the latter is working at 20% load state. In the second scenario, the PSU, while working at 50% load, is hit by the same transient load. In both tests, we measure the voltage drops the transient load causes with our oscilloscope. The voltages should remain within the regulation limits defined by the ATX specification. We must stress here that the above tests are crucial since they simulate transient loads that a PSU is very likely to handle (e.g., booting a RAID array, an instant 100% load of CPU/VGAs, etc.). We call these tests "Advanced Transient Response Tests" and they are designed to be very tough to master, especially for PSUs with capacities below 500 W.





The P2-1000 W only had small voltage drops on all rails during the above test—especially the +12V rail performed well! Super Flower vastly improved the performance of this platform over its previous one when it comes to transient loads, and they deserve praise for their hard work. The P2-1000W's performance in these tests is among the best we have ever seen.


Below, you will find the oscilloscope screenshots we took during Advanced Transient Response Testing.

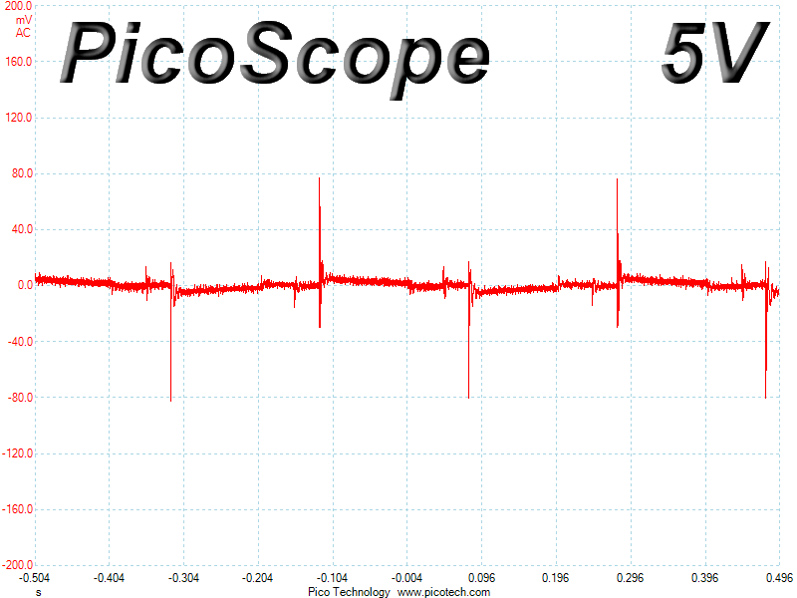

Transient Response at 20% Load

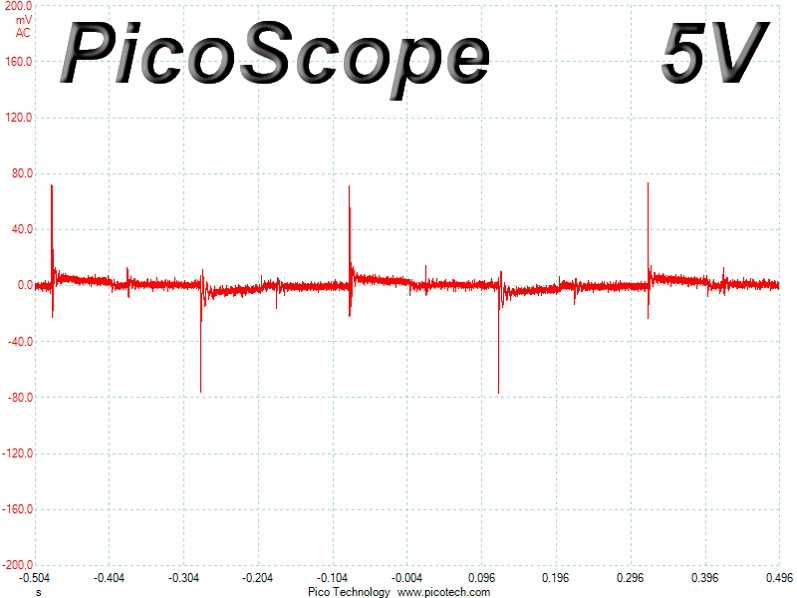

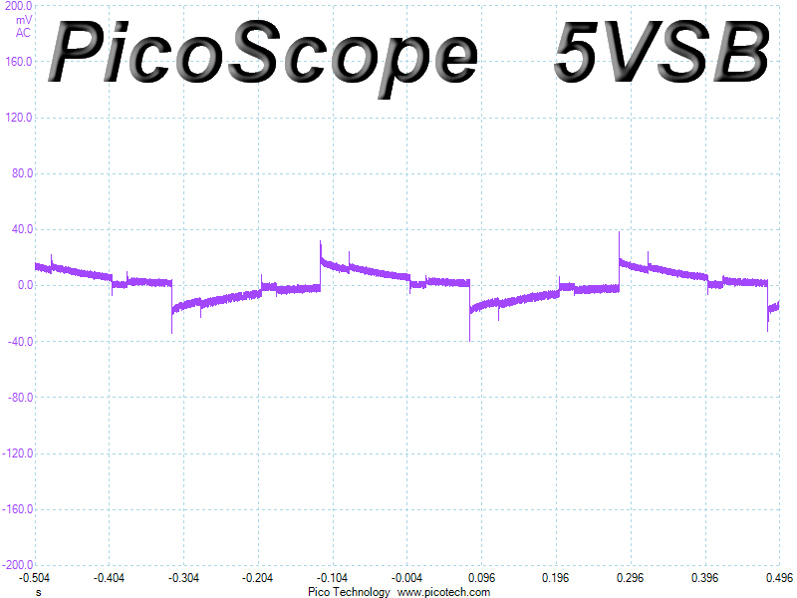

Transient Response at 50% Load

Turn-On Transient Tests

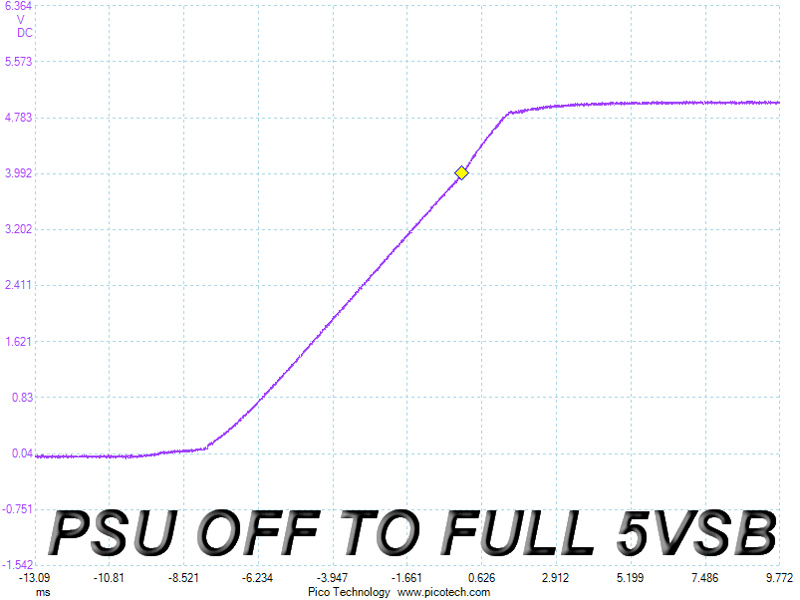

We measure the response of the PSU in simpler scenarios of transient loads—during the power-on phase of the PSU—in the next set of tests. In the first test, we turn the PSU off, dial the maximum current the 5VSB can output, and switch on the PSU. In the second test, we dial the maximum load +12V can handle and start the PSU while the PSU is in standby mode. In the last test, while the PSU is completely switched off (we cut off power or flip the PSU's on/off switch), we dial the maximum load the +12V rail can handle before switching the PSU on from the loader and restoring power. The ATX specification states that recorded spikes on all rails should not exceed 10% of their nominal values (e.g., +10% for 12V is 13.2V and 5.5V for 5V).


The first two slopes are quite smooth, but there is a small waveform before voltage settles down in the last slope. However, it is nothing important and doesn't affect the units performance. Pretty good overall performance in these tests.
