Galaxy GeForce 9500 GT Overclocked 512 MB Review

A Closer Look »

The Card

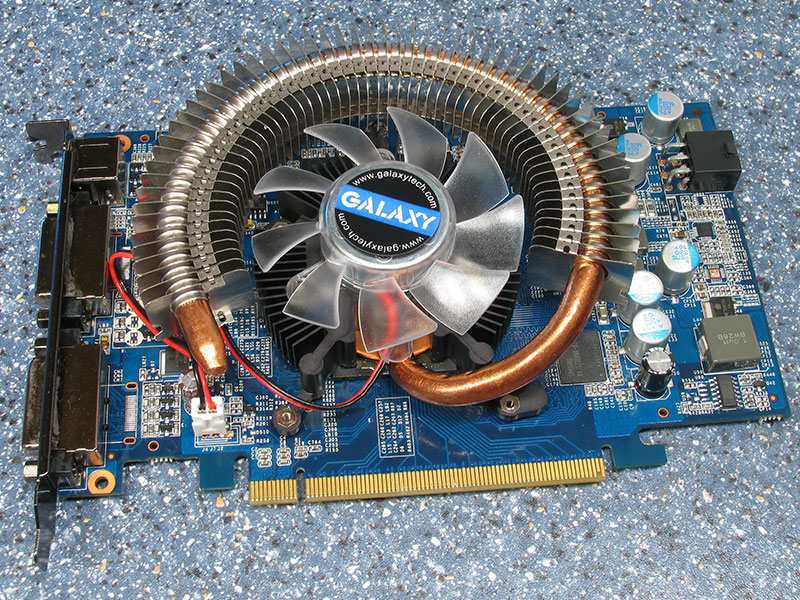

Graphics Card Front

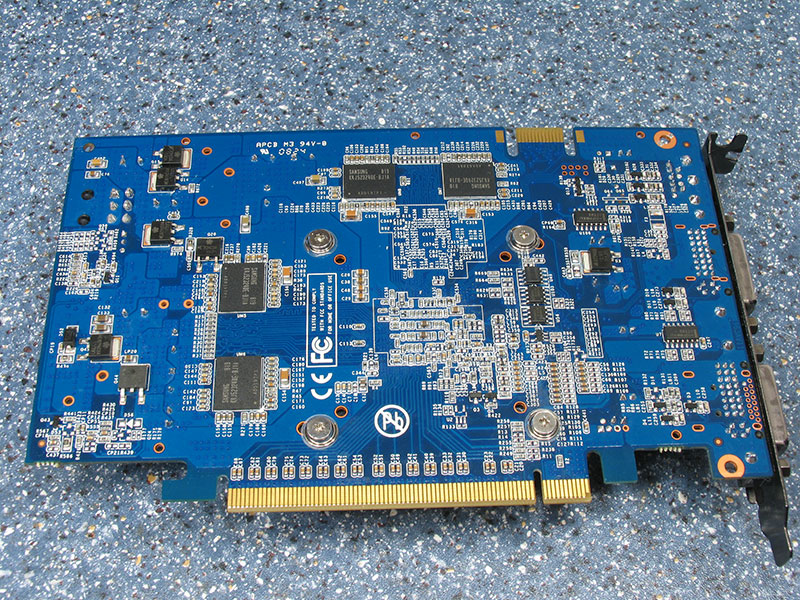

Graphics Card Back

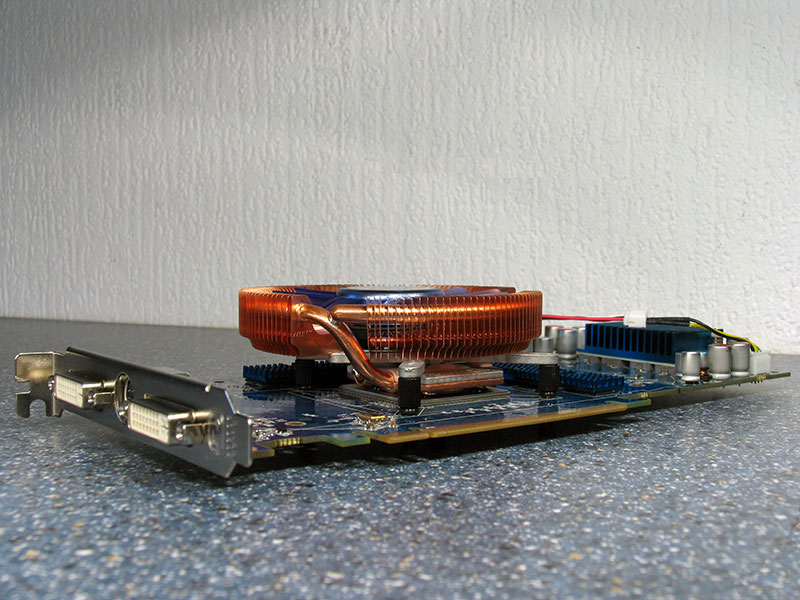

Graphics Card Height

Even though the card is just a low-end card, it uses a dual-slot cooler. This allows Galaxy to keep down the noise some more while still running at low temperatures.

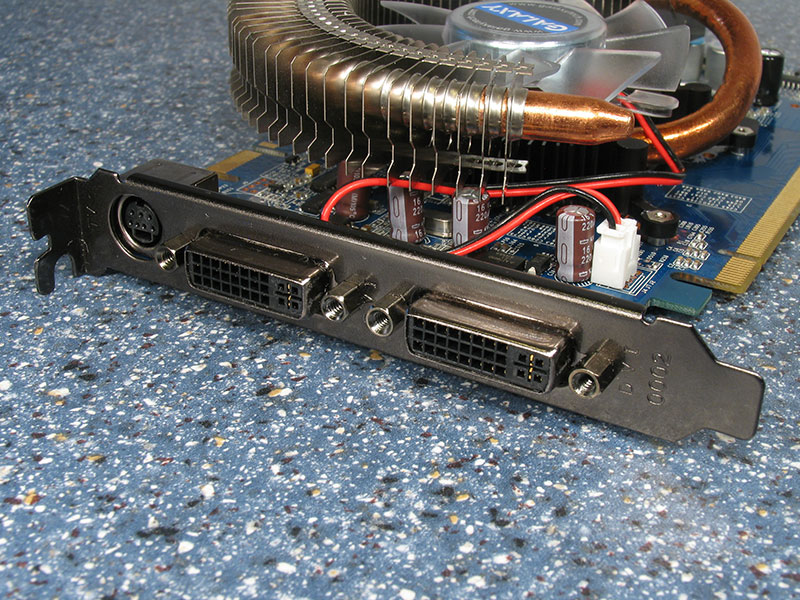

Monitor Outputs, Display Connectors

The card has two DVI ports, basically the most common output configuration these days. In case you need an analog VGA port you can use the included DVI adapter. When using an HDMI adapter (not included), you will also have access to HDMI+HDCP+Audio, which allows easy setup of a media PC. For the HDMI audio feature you have to connect an SPDIF cable (not included either) from your on-board audio or sound card to the input on the graphics card.

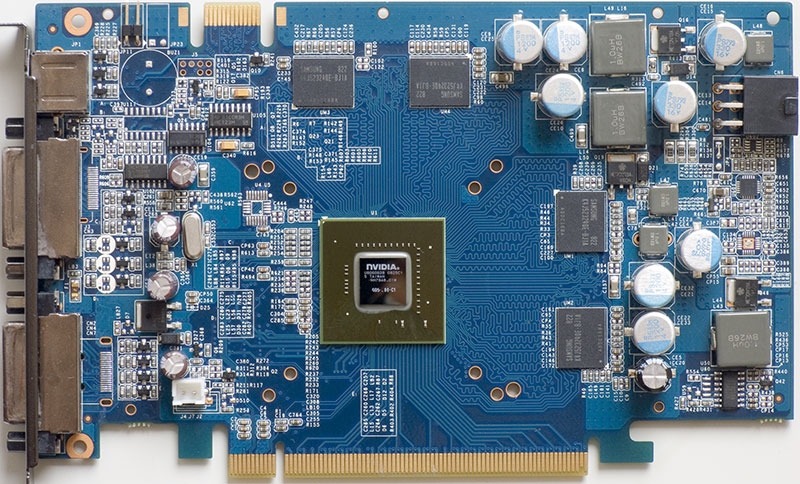

Graphics Card Teardown PCB Front

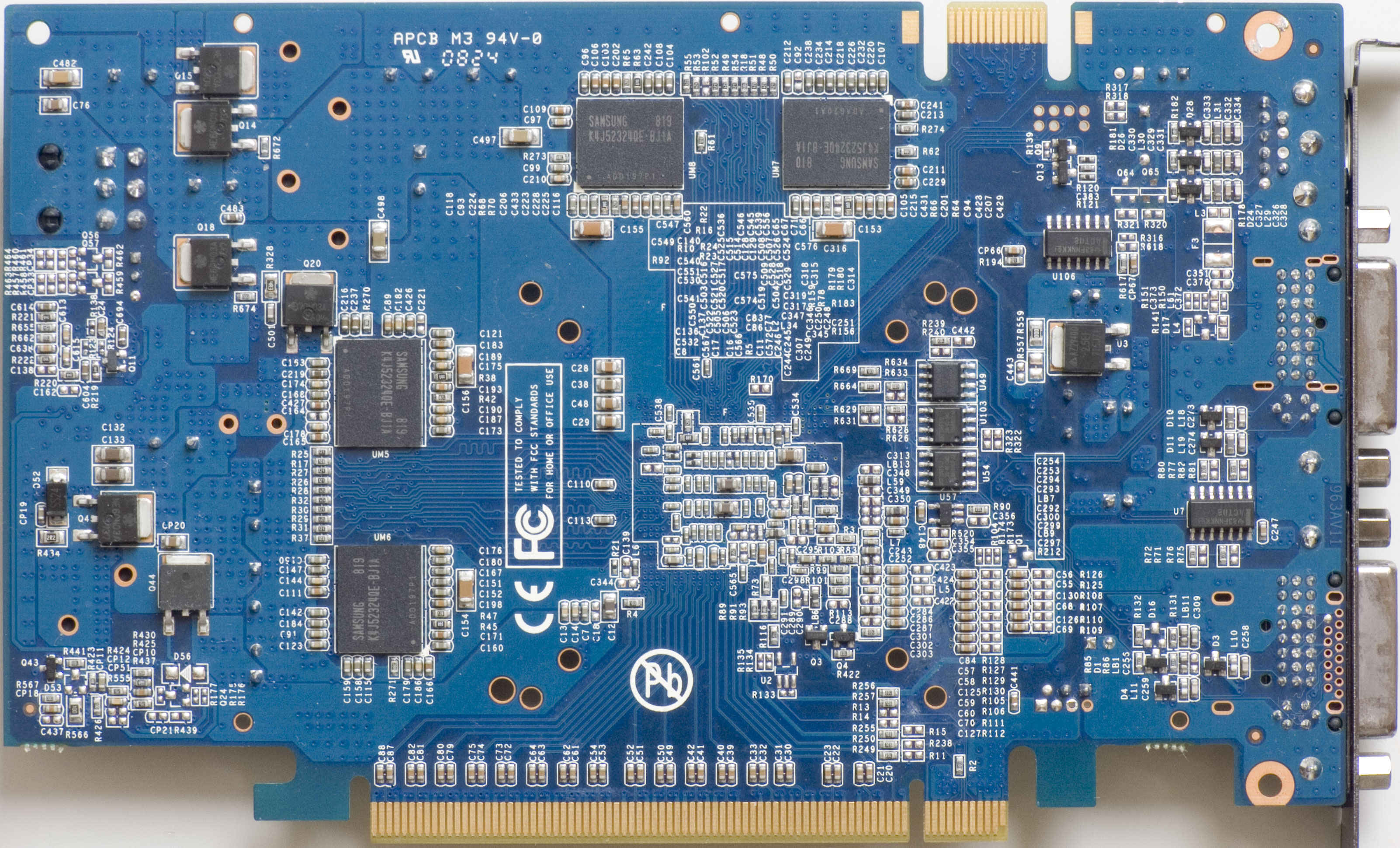

Graphics Card Teardown PCB Back

Here are the front and the back of the card, high-res versions are also available (front, back). If you choose to use these images for voltmods etc, please include a link back to this site or let us post your article.
