Advanced Transient Response Tests

In these tests, we monitor the response of the PSU in two different scenarios. First, a transient load (10 A at +12 V, 5 A at 5 V, 5 A at 3.3 V, and 0.5 A at 5VSB) is applied to the PSU for 200 ms while the latter is working at 20% load. In the second scenario, the PSU, while working at 50% load, is hit by the same transient load. In both tests, we measure the voltage drops the transient load causes with our oscilloscope. Voltages should remain within the regulation limits defined by the ATX specification. We must stress here that these tests are crucial because they simulate transient loads a PSU is very likely to handle (e.g., booting a RAID array, an instant 100% load of CPU/VGAs, etc.). We call these tests "Advanced Transient Response Tests", and they are designed to be very tough to master, especially for a PSU with a capacity below 500 W.





We would like to see lower deviations at +12V, ideally within 1%. The 5V and 5VSB rails perform well, while the 3.3V rail does not as it is also very close to the limit in the second test. This platform not only looks like the Focus one, but also has the same mediocre transient performance at 3.3V.

Below are the oscilloscope screenshots we took during Advanced Transient Response testing.

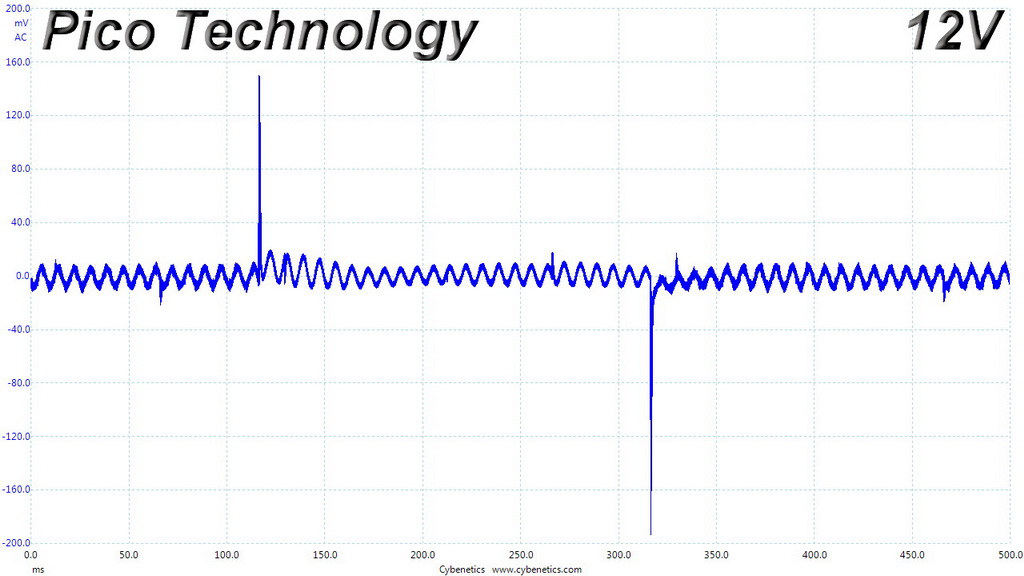

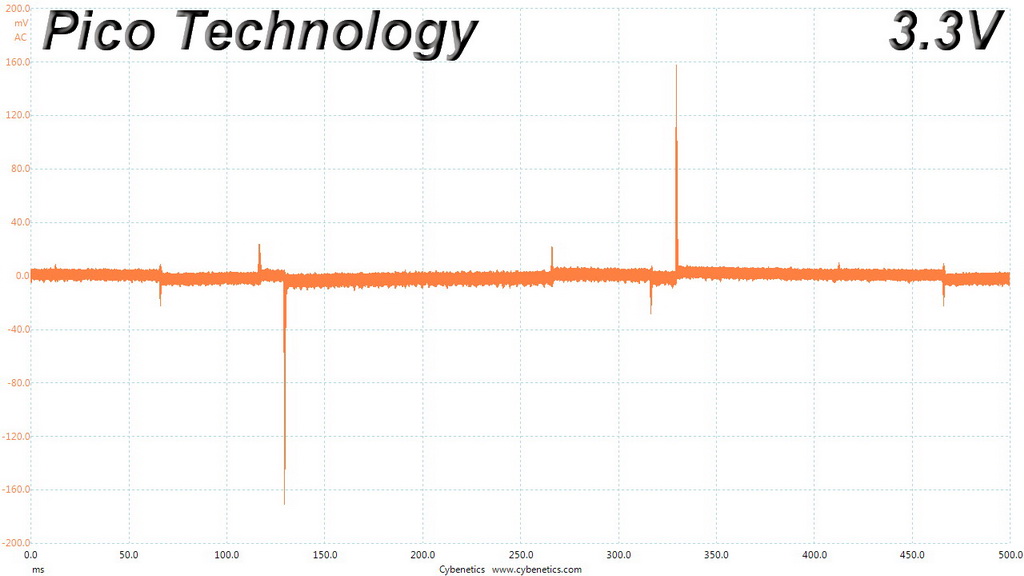

Transient Response at 20% Load

Transient Response at 50% Load

Turn-On Transient Tests

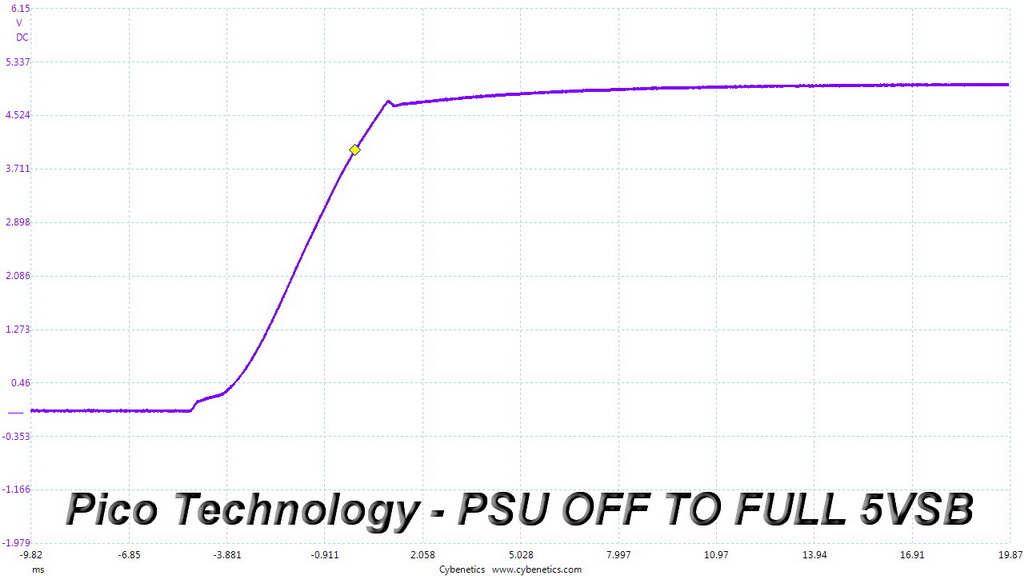

These tests measure the response of the PSU in simpler scenarios of transient load during the power-on phase of the PSU. In the first test, we turn the PSU off, dial the maximum current the 5VSB can output, and then switch on the PSU. In the second test, we dial the maximum load +12V can handle and start the PSU while the PSU is in standby mode. In the last test, while the PSU is completely switched off (we cut off power or switch the PSU off by flipping its on/off switch), we dial the maximum load the +12V rail can handle before switching the PSU on from the loader and restoring power. The ATX specification states that recorded spikes on all rails should not exceed 10% of their nominal values (e.g., +10% for 12V is 13.2 V and 5.5 V for 5V).



With nothing but a tiny spike at 5VSB and a small step in the last test, overall performance is pretty good in these tests.
