Packaging

The Card

PowerColor's card uses a mix of black and gray highlights paired with a blocky industrial design. On the back, you'll find a high-quality metal backplate with RGB illumination.

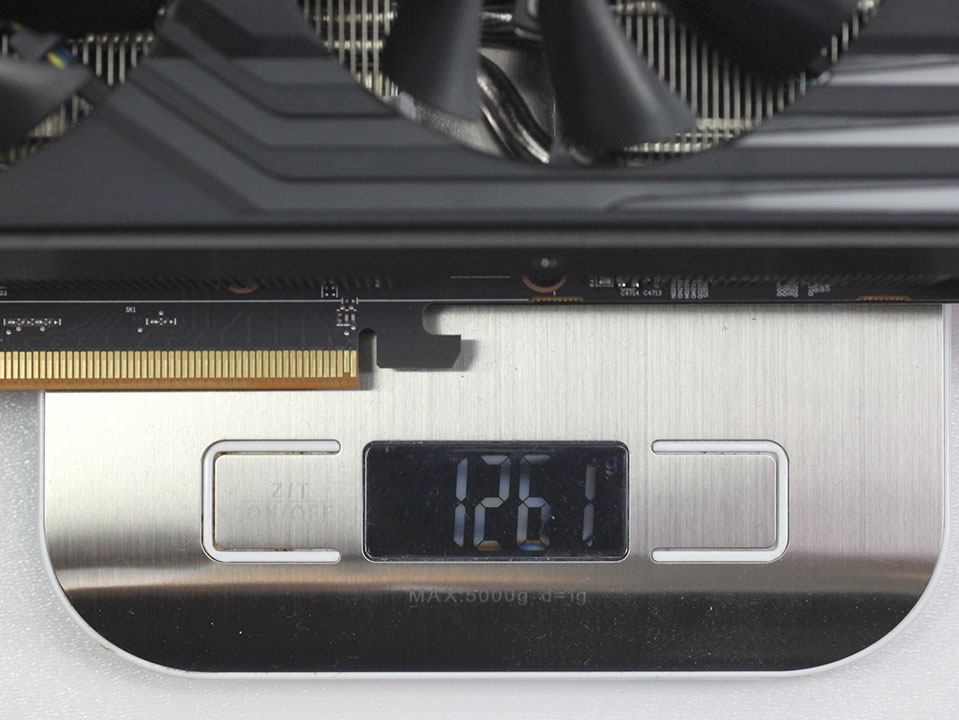

Dimensions of the card are 32 x 13 cm, and it weighs 1261 g.


Installation requires three slots in your system.

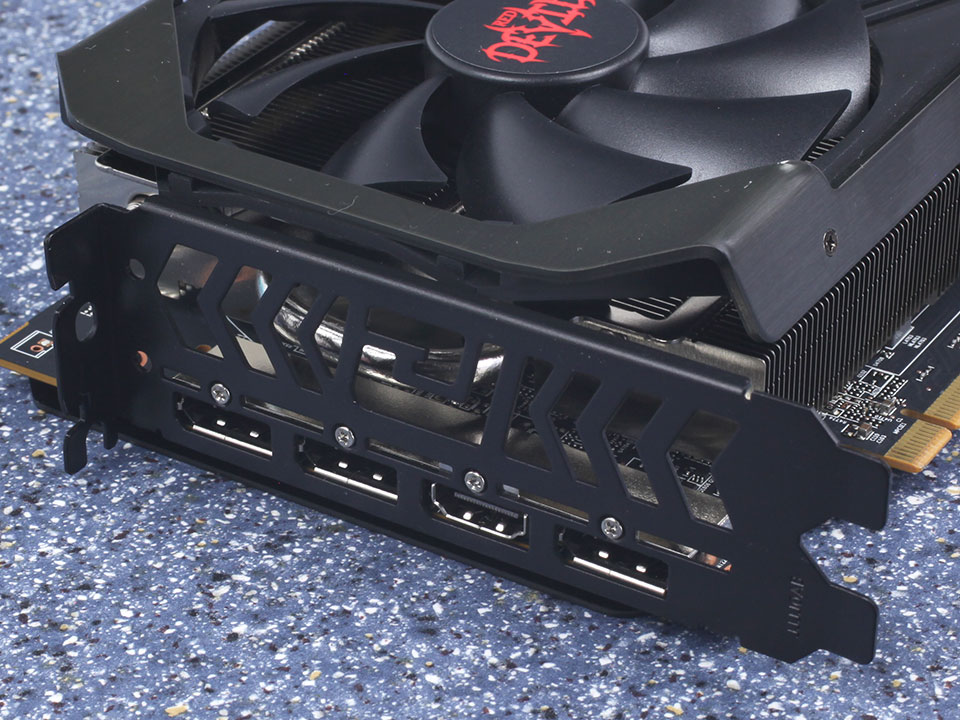

Display connectivity includes three standard DisplayPort 1.4 and one HDMI 2.1.


The card has two 8-pin power inputs. This configuration is rated for up to 375 W of power draw.


The AMD Radeon RX 6000 series doesn't support multi-GPU. Instead, PowerColor has placed their dual-BIOS switch in this area. The "OC" BIOS is the default, and the "silent" BIOS will run a more relaxed fan curve to reduce noise levels.

Teardown

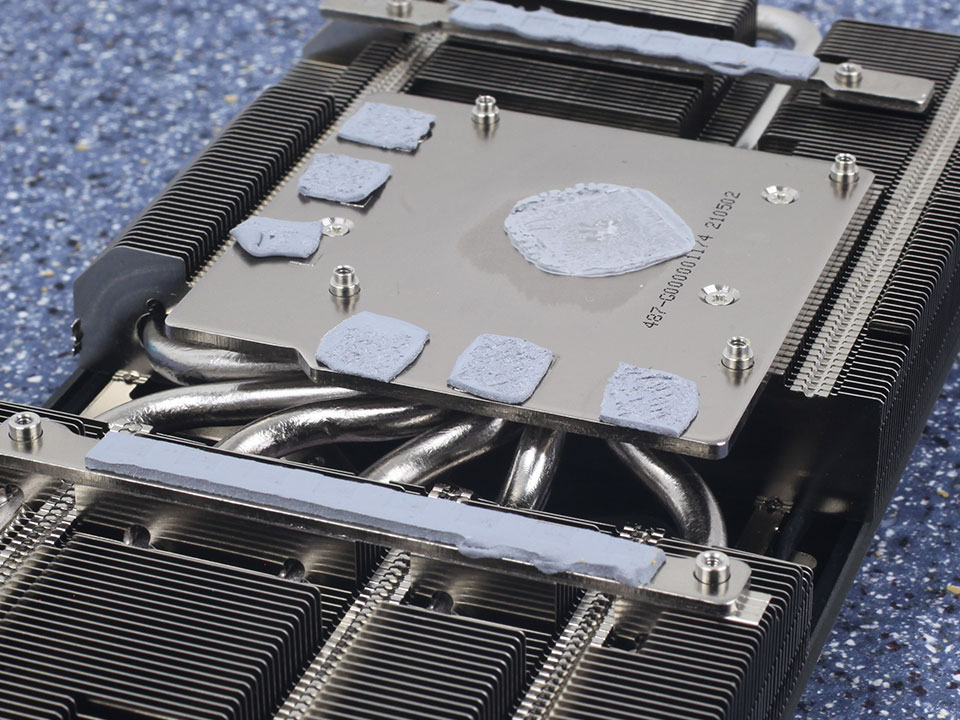

PowerColor's heatsink uses six heatpipes and also provides cooling for the VRM circuitry and memory chips.


The backplate is made out of metal and protects the card against damage during installation and handling.
