Advanced Transient Response Tests

In these tests, we monitor the response of the PSU in two different scenarios. First, a transient load (10 A at +12V, 5 A at 5V, 5 A at 3.3V, and 0.5 A at 5VSB) is applied to the PSU for 200 ms while the latter is working at a 20% load state. In the second scenario, the PSU, while working at 50% load, is hit by the same transient load. In both tests, we measure the voltage drops that the transient load causes using our oscilloscope. The voltages should remain within the regulation limits defined by the ATX specification. We must stress here that the above tests are crucial since they simulate transient loads that a PSU is very likely to handle (e.g., booting a RAID array, an instant 100% load of CPU/VGAs, etc.) We call these tests "Advanced Transient Response Tests", and they are designed to be very tough to master, especially for PSUs with capacities lower than 500 W.

Advanced Transient Response 20%
VoltageBeforeAfterChangePass/Fail
12 V12.217V12.130V0.71%Pass
5 V5.176V5.075V1.95%Pass
3.3 V3.381V3.265V3.43%Pass
5VSB5.112V5.075V0.72%Pass


Advanced Transient Response 50%
VoltageBeforeAfterChangePass/Fail
12 V12.175V12.096V0.65%Pass
5 V5.139V5.040V1.93%Pass
3.3 V3.357V3.248V3.25%Pass
5VSB5.089V5.057V0.63%Pass


The PSU's response to dynamic loads is excellent. The strongest performer was the +12V rail; it managed to register the lowest deviation amongst all rails. Also, the 3.3V rail, which showed the largest deviation, managed to stay well above our low 3.2V limit for these tests. The unit's overall performance on these tests is great!


Below, you will find the oscilloscope screenshots that we took during Advanced Transient Response Testing.

Transient Response at 20% Load



Transient Response at 50% Load



Turn-On Transient Tests

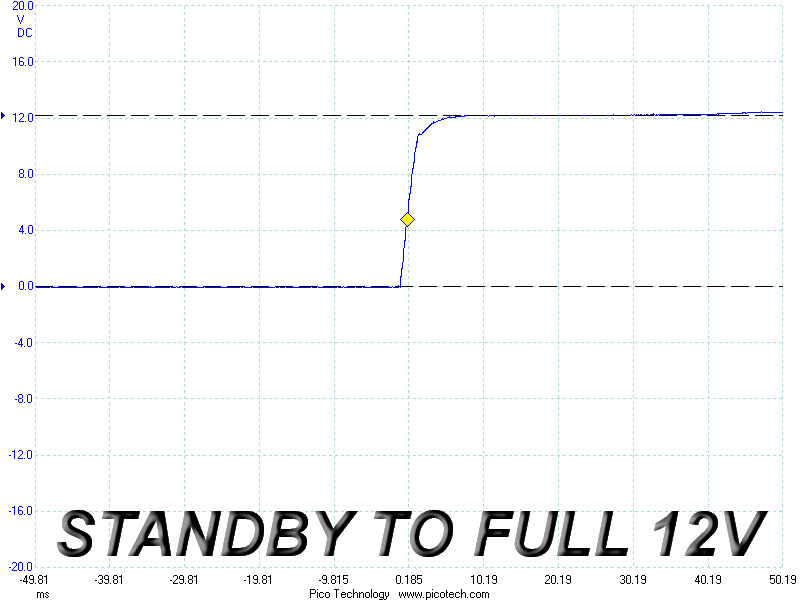

We measure the response of the PSU in simpler scenarios of transient loads - during the power-on phase of the PSU - in the next set of teset. In the first test we turn the PSU off, dial the maximum current that the 5VSB can output, and then switch on the PSU. In the second test we dial the maximum load that +12V can handle and we start the PSU, all while the PSU is in standby mode. In the last test, while the PSU is completely switched off (we cut off power or switch off the PSU's on/off switch), we dial the maximum load that the +12V rail can handle before switching the PSU on from the loader and restoring power. The ATX specification states that recorded spikes on all rails should not exceed 10% of their nominal values (e.g., +10% for 12V is 13.2V and for 5V is 5.5V).


No visible spikes/overshoots on all three tests, and the only thing that makes this PSU miss perfection by a very small margin is the minor step that the +12V rail registered during the last test.
