Ripple Measurements

You will see the ripple levels we measured on the main rails of the SF-1300F14MG in the following table. The limits are, according to the ATX specification, 120 mV (+12V) and 50 mV (5V, 3.3V, and 5VSB).

Ripple Measurements - Super Flower SF-1300F14MG
Test12 V5 V3.3 V5VSBPass/Fail
20% Load8.8 mV5.5 mV8.0 mV3.6 mVPass
40% Load9.1 mV5.6 mV8.8 mV4.1 mVPass
50% Load9.6 mV6.8 mV8.9 mV4.8 mVPass
60% Load11.0 mV7.3 mV9.5 mV5.3 mVPass
80% Load12.5 mV7.8 mV10.7 mV5.8 mVPass
100% Load13.6 mV8.8 mV12.1 mV6.9 mVPass
110% Load15.0 mV9.7 mV13.2 mV7.2 mVPass
Crossload 19.9 mV5.9 mV7.9 mV20.0 mVPass
Crossload 213.5 mV6.7 mV10.7 mV5.0 mVPass
Ripple suppression was out of this world. It has been a while since we last looked at such low ripple values, especially in a unit that can deliver as much power. SF did an excellent job in this section (and not only). The Japanese caps on the main PCB also ensure that the unit keeps its topnotch performance for quite a while.

Ripple at Full Load

In the following oscilloscope screenshots, you can see the AC ripple and noise the main rails registered (+12V, 5V, 3.3V, and 5VSB). The bigger the fluctuations on the oscilloscope's screen, the bigger the ripple/noise. For all measurements, we set 0.01 V/Div as standard (each vertical division/box equals 0.01 V).



Ripple at 110% Load

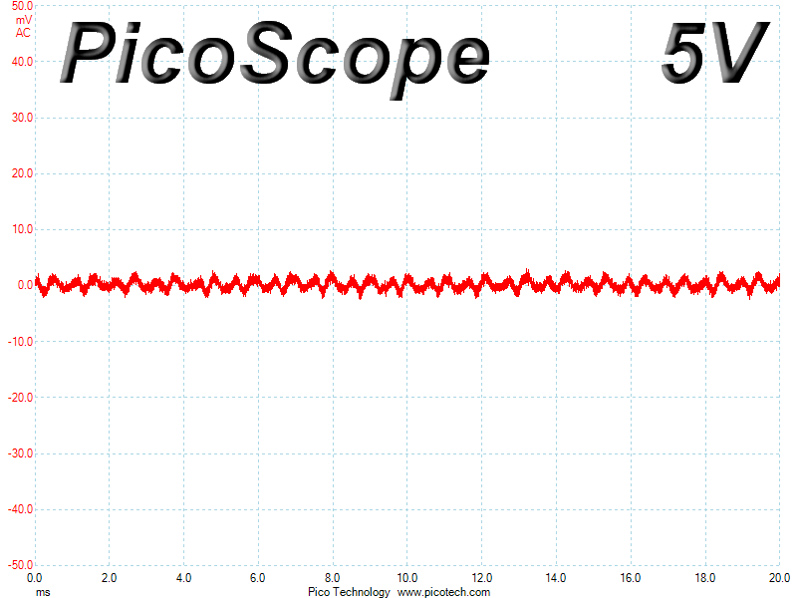

Ripple at Crossload 1



Ripple at Crossload 2
