NVIDIA GF108

GF108

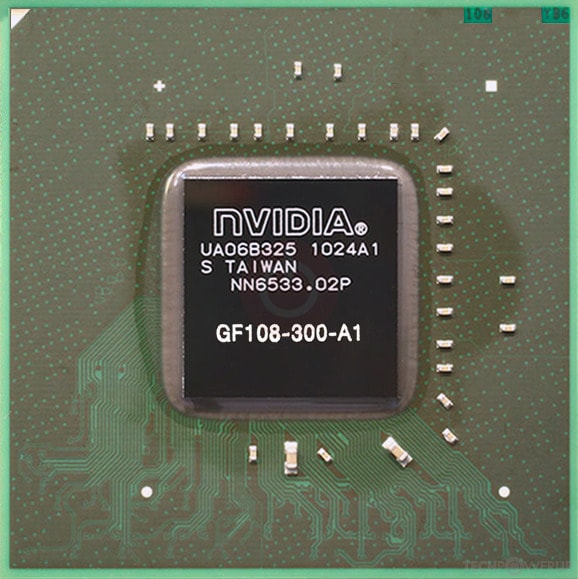

GF108-300-A1

N12P-GV2-A1

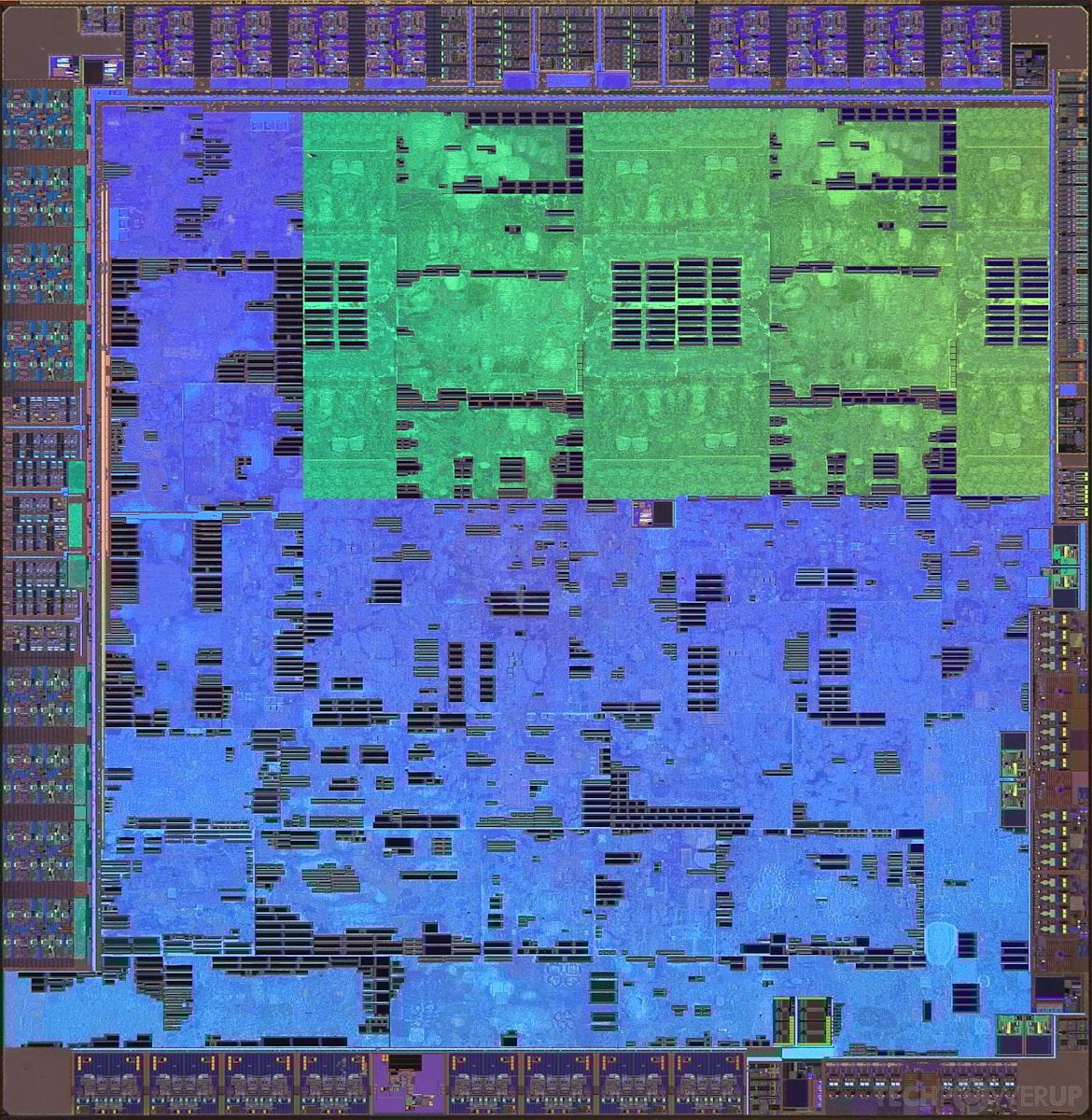

Die Shot

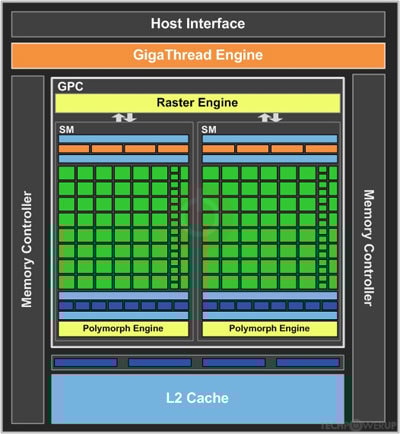

Block Diagram

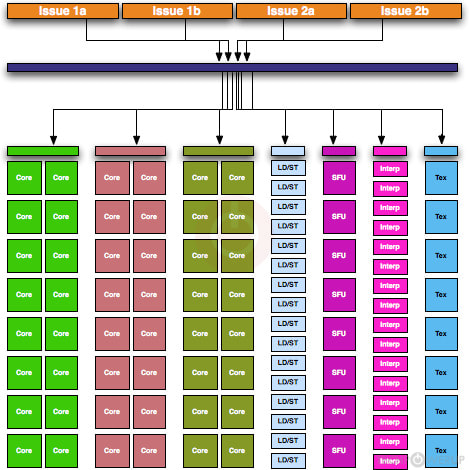

SM Diagram

NVIDIA's GF108 GPU uses the Fermi architecture and is made using a 40 nm production process at TSMC. With a die size of 116 mm² and a transistor count of 585 million it is a small chip. GF108 supports DirectX 12 (Feature Level 11_0). For GPU compute applications, OpenCL version 1.1 and CUDA 2.1 can be used. It features 96 shading units, 16 texture mapping units and 8 ROPs.

Further reading: Fermi Compute Architecture

Graphics Processor

Released: Sep 3rd, 2010

GPU Name: GF108

Codename: NVC1

Architecture: Fermi

Foundry: TSMC

Process Size: 40 nm

Transistors: 585 million

Density: 5.0M / mm²

Die Size: 116 mm²

Package: BGA-973

Graphics Features

DirectX: 12 (11_0)

OpenGL: 4.6

OpenCL: 1.1

Vulkan: N/A

CUDA: 2.1

Shader Model: 5.1

WDDM: 2.3

PureVideo HD: VP4

VDPAU: Feature Set C

Render Config

Shading Units: 96

TMUs: 16

ROPs: 8

SM Count: 4

SFUs: 16

GPCs: 1

L1 Cache: 64 KB per SM

L2 Cache: 256 KB

Max. TDP: 65 W

All Fermi GPUs

NVIDIA GPU Architecture History

2024 Blackwell
2023 Hopper
2022-2024 Ada Lovelace
2020-2024 Ampere
2018-2022 Turing
2017-2020 Volta
2016-2021 Pascal
2014-2019 Maxwell 2.0
2014-2017 Maxwell
2013-2015 Kepler 2.0
2012-2018 Kepler
2010-2016 Fermi 2.0
2010-2013 VLIW Vec4
2010-2016 Fermi
2007-2013 Tesla 2.0
2006-2010 Tesla
2003-2013 Curie
2003-2005 Rankine
2001-2003 Kelvin
1999-2005 Celsius
1998-2000 Fahrenheit

Graphics cards using the NVIDIA GF108 GPU

Name	Chip	Memory	Shaders	TMUs	ROPs	GPU Clock	Memory Clock
NVIDIA GeForce GT 420 OEM	GF108-200-A1	1024 MB	48	4	4	700 MHz	900 MHz
NVIDIA GeForce GT 640M LE		2 GB	96	16	4	753 MHz	785 MHz
NVIDIA GeForce GT 630M	N13P-GL2-A1	1024 MB	96	16	4	475 MHz	900 MHz
NVIDIA GeForce GT 440	GF108-400-A1	1024 MB	96	16	4	810 MHz	900 MHz
NVIDIA GeForce GT 430	GF108-300-A1	512 MB	96	16	4	700 MHz	800 MHz
NVIDIA GeForce GT 530 OEM	GF108-200-A1	1024 MB	96	16	4	700 MHz	900 MHz
NVIDIA GeForce GT 540M	N12P-GS-A1	1024 MB	96	16	4	672 MHz	900 MHz
NVIDIA GeForce GT 630	GF108-400-A1	1024 MB	96	16	4	810 MHz	900 MHz
NVIDIA GeForce GT 620	GF108-100-KB-A1	1024 MB	96	16	4	700 MHz	900 MHz
NVIDIA Quadro 600		1024 MB	96	16	8	640 MHz	800 MHz
NVIDIA Quadro 1000M	N12P-Q1	2 GB	96	16	4	700 MHz	900 MHz
NVIDIA Quadro 500M	N12M-Q3	1024 MB	96	16	4	560 MHz	800 MHz
NVIDIA GeForce GT 525M	N12P-GE-OP-A1	1024 MB	96	16	4	600 MHz	900 MHz
NVIDIA GeForce GT 550M	N12P-GT1-A1	1024 MB	96	16	4	740 MHz	900 MHz
NVIDIA GeForce GT 555M	GF108-400-A1	1024 MB	96	16	4	753 MHz	785 MHz
NVIDIA GeForce GT 415M	N11P-GV	1024 MB	48	8	4	500 MHz	800 MHz
NVIDIA GeForce GT 420M	N11P-GE-A1	1024 MB	96	16	4	500 MHz	800 MHz
NVIDIA GeForce GT 425M	N11P-GS-A1	1024 MB	96	16	4	560 MHz	800 MHz
NVIDIA GeForce GT 435M	N11P-GT	2 GB	96	16	4	650 MHz	800 MHz
NVIDIA NVS 5400M	N13P-NS1	2 GB	96	16	4	660 MHz	900 MHz
NVIDIA GeForce GT 520 OEM	GF108-200-A1	1024 MB	48	8	2	700 MHz	667 MHz
NVIDIA GeForce GT 520M	N12P-GV2-A1	1024 MB	48	8	4	672 MHz	800 MHz
NVIDIA GeForce GT 430 OEM	GF108-400-A1	2 GB	96	16	4	700 MHz	800 MHz
NVIDIA NVS 5200M	GF108-300-A1	1024 MB	96	16	4	672 MHz	785 MHz
NVIDIA GeForce 610M	N13M-GE3-A1	1024 MB	48	8	2	672 MHz	800 MHz
NVIDIA GeForce 615 OEM		1024 MB	48	8	4	660 MHz	900 MHz
NVIDIA GeForce GT 620M	N13P-GLP-A1	1024 MB	96	16	4	475 MHz	900 MHz
NVIDIA GeForce GT 635M	N12E-GE-A1	2 GB	96	16	4	475 MHz	900 MHz
NVIDIA GeForce GT 440 Mac Edition	GF108-400-A1	1024 MB	96	16	4	810 MHz	667 MHz
NVIDIA GeForce GT 630M	N12P-GS-A1	1024 MB	96	16	4	660 MHz	900 MHz
NVIDIA GeForce GT 730	GF108-400-A1	2 GB	96	16	4	700 MHz	800 MHz
NVIDIA GeForce GT 610 OEM		2 GB	48	8	2	701 MHz	500 MHz
NVIDIA GeForce GT 635M		2 GB	96	16	4	660 MHz	900 MHz
NVIDIA GeForce GT 730	GF108-400-A1	1024 MB	96	16	4	700 MHz	900 MHz
NVIDIA GeForce GT 430 PCI	GF108-300-A1	512 MB	96	16	4	700 MHz	600 MHz
NVIDIA GeForce GT 520M	N12P-GV2-A1	1024 MB	48	8	4	600 MHz	900 MHz
NVIDIA GeForce GT 525M	N12P-GE-OP-A1	1024 MB	96	16	4	475 MHz	900 MHz
NVIDIA GeForce GT 550M		1024 MB	96	16	4	475 MHz	900 MHz
