Corsair HX850 V2 850 W Review

Name: Corsair HX850 V2 850 W
Brand: Corsair

crmaris

on Jul 29th, 2012,

in Power Supplies.

Manufacturer: Corsair

Performance Rating & Performance per Dollar »

Ripple Measurements

In the following table, you will see the ripple levels that we measured on the main rails of the HX850. According to the ATX specification, the limits are 120 mV (+12 V) and 50 mV (5 V, 3.3 V, and 5VSB).

Ripple Measurements Corsair HX850 V2
Test	12 V	5 V	3.3 V	5 VSB	Pass/Fail
20% Load	11.8 mV	13.6 mV	12.1 mV	9.3 mV	Pass
40% Load	14.7 mV	14.7 mV	13.6 mV	13.3 mV	Pass
50% Load	16.4 mV	15.0 mV	14.9 mV	13.8 mV	Pass
60% Load	18.1 mV	15.9 mV	14.4 mV	15.4 mV	Pass
80% Load	23.3 mV	15.6 mV	16.2 mV	18.6 mV	Pass
100% Load	28.4 mV	16.1 mV	17.2 mV	23.4 mV	Pass
Crossload 1	13.4 mV	12.6 mV	13.5 mV	9.0 mV	Pass
Crossload 2	26.6 mV	16.9 mV	16.7 mV	23.0 mV	Pass

Ripple suppression is excellent on all rails, something usual for a Corsair unit since this company pays extra attention to ripple filtering on all of its power supply products. Of course, CWT's technicians did their part in this performance.

Ripple at Full Load

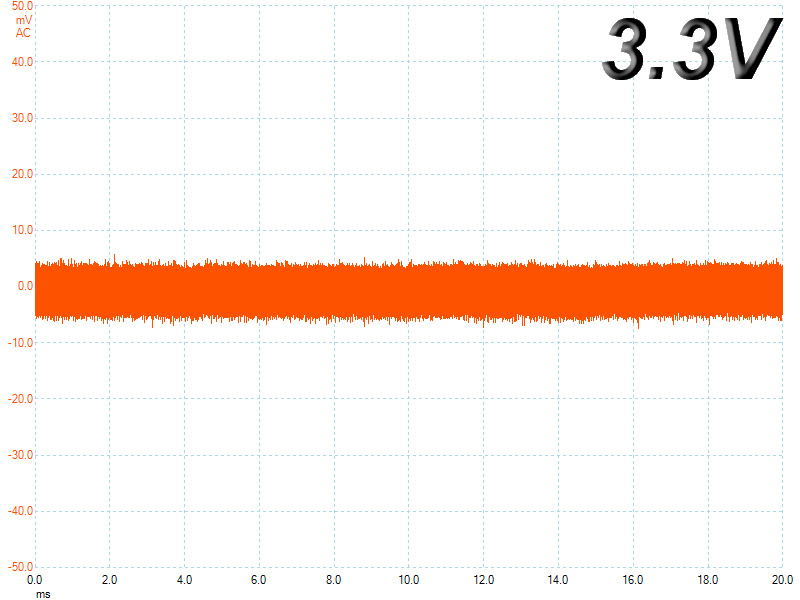

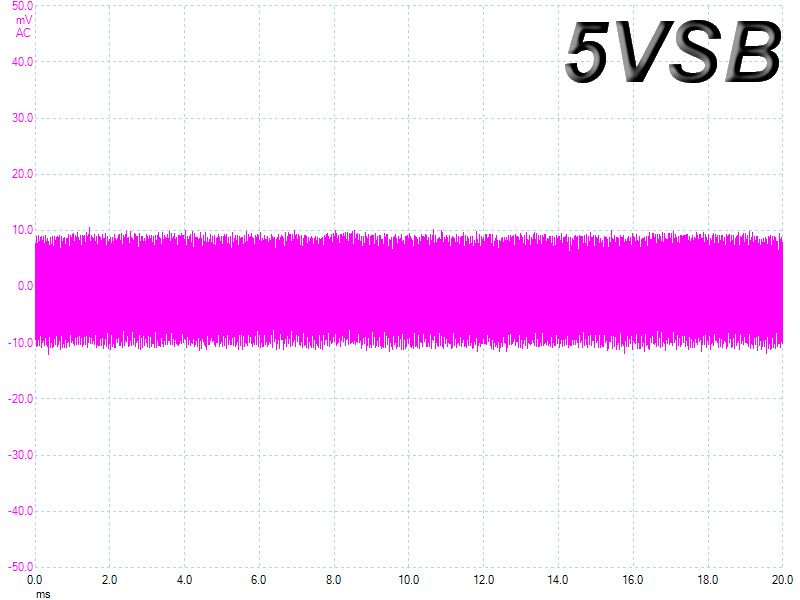

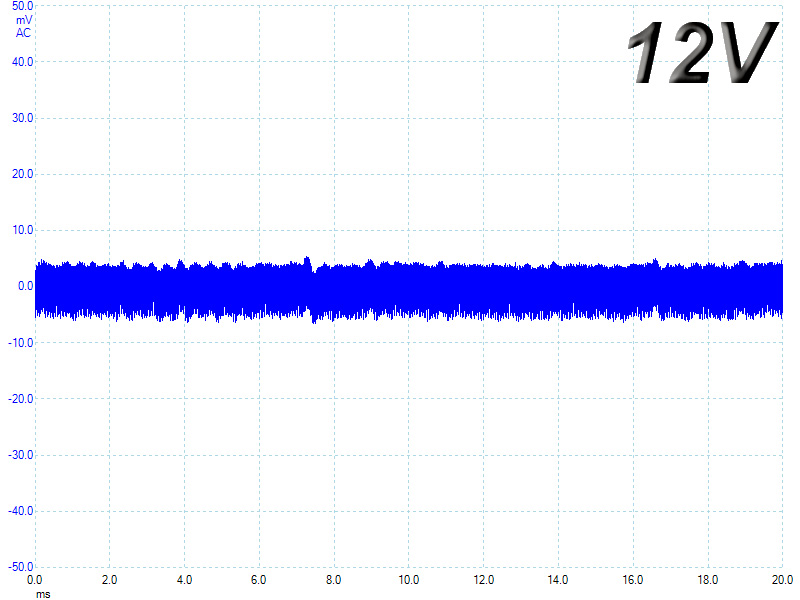

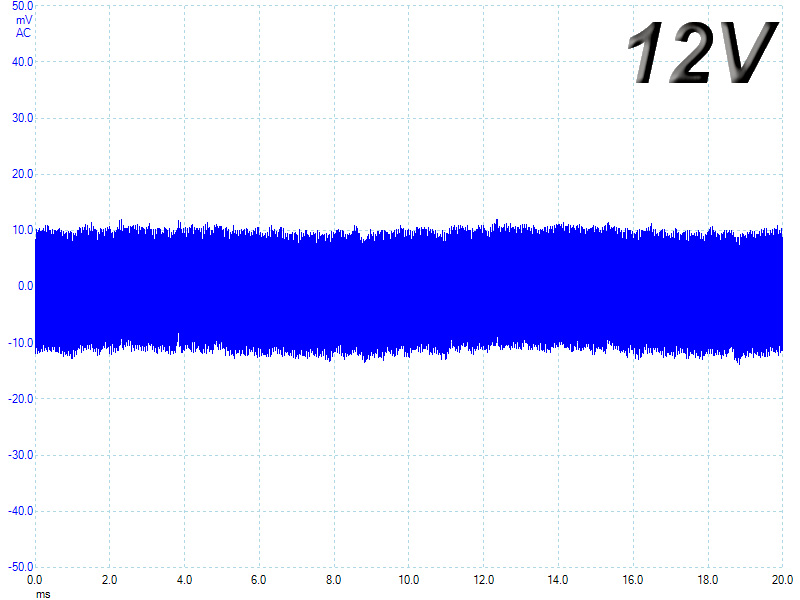

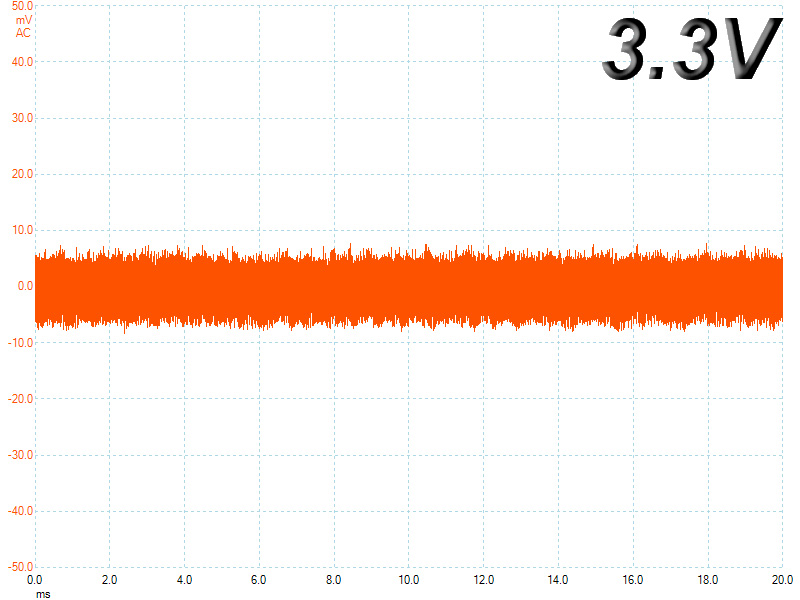

In the following oscilloscope screenshots, you can see the AC ripple and noise that the main rails registered (+12 V, 5 V, 3.3 V, and 5 VSB). The bigger the fluctuations on the oscilloscope's screen, the bigger the ripple/noise. For all measurements, we set 0.01 V/Div (each vertical division/box equals to 0.01 V) as standard.
