Test Setup

All measurements were performed using two Chroma 6314A mainframes equipped with the following electronic loads: six 63123A [350 W each], one 63102A [100 W x2], and one 63101A [200 W]. The aforementioned equipment is able to deliver 2500 W of load, and all loads are controlled by a custom-made software. The AC source is a Chroma 6530, capable of delivering up to 3 kW of power. We also used a Keysight DSOX3024A oscilloscope, a Rigol DS2072A oscilloscope kindly sponsored by Batronix, a Picoscope 3424 oscilloscope, a Picotech TC-08 thermocouple data logger, two Fluke multimeters (models 289 and 175), a Keithley 2015 THD 6.5 digit bench DMM, and a lab grade N4L PPA1530 3-phase power analyzer along with a Yokogawa WT210 power meter. We also included a wooden box, which, along with some heating elements, was used as a hot box and had at our disposal three more oscilloscopes (Rigol VS5042, Stingray DS1M12, and a second Picoscope 3424) and a Class 1 Bruel & Kjaer 2250-L G4 Sound Analyzer we equipped with a type 4189 microphone that features a 16.6-140 dBA-weighted dynamic range. You will find more details about our equipment and the review methodology we follow in this article. We also conduct all of our tests at 40 °C - 45 °C ambient to simulate the environment seen inside a typical system more accurately, with 40 °C - 45 °C being derived from a standard ambient assumption of 23 °C and 17 °C - 22 °C being added for the typical temperature rise within a system.

We use a GPIB-USB controller to control the Chroma 6530 to avoid its very picky Serial port. This controller was kindly provided by Prologix.



We use an OLS3000E online UPS with a capacity of 3000VA/2700W to protect our very expensive Chroma AC source.

Primary Rails Load Regulation

The following charts show the voltage values of the main rails, recorded over a range from 60 W to the maximum specified load, and the deviation (in percent) for the same load range.

5VSB Regulation

The following chart shows how the 5VSB rail deals with loads we throw at it.

Hold-up Time

Hold-up time is a very important PSU characteristic and represents the amount of time, usually measured in milliseconds, a PSU can maintain output regulations as defined by the ATX specification without input power. In other words, it is the amount of time a system can continue to run without shutting down or rebooting during a power interruption. The ATX specification sets the minimum hold-up time to 17 ms with the maximum continuous output load.

According to the ATX specification, PWR_OK is a "power good" signal. This signal should be asserted as high on the 5V rail by the power supply to indicate that the +12V, 5V, and 3.3V outputs are within the regulation thresholds and that sufficient mains energy is stored by the APFC converter to guarantee a system's continuous operation for at least 17ms. Conversely, PWR_OK should be de-asserted to a low state, 0V, when any of the +12V, 5V, or 3.3V output voltages fall below the under-voltage threshold or when mains power has been removed for long enough to guarantee that a power supply isn't operating anymore. The AC loss to PWR_OK minimum hold-up time is set to 16 ms, which is less than the hold-up time described above, but the ATX specification also sets a PWR_OK inactive-to-DC loss delay that should be higher than 1 ms. This means that the AC loss to PWR_OK hold-up time should be lower than the PSU's overall hold-up time to ensure that the power supply doesn't send a power good signal once any of the +12V, 5V and 3.3V rails are out of spec.

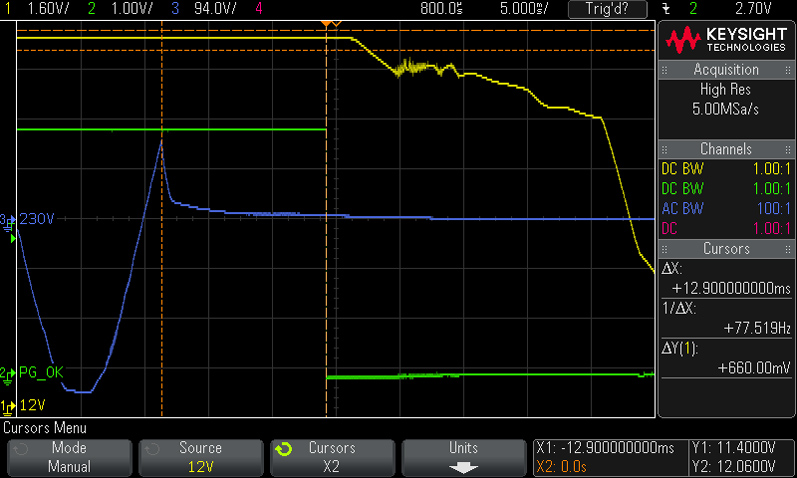

In the following screenshots, the yellow line is representative of the +12V rail; the blue line is the mains signal and the green line is the "Power Good" signal.







This unit's hold-up time isn't far from the minimum (17ms) the ATX specification asks; however, such is not the case for the power good signal's hold-up time. That said, we do appreciate the fact that HEC didn't cheat since the power good signal does drop before the rails go out of spec.

Some manufacturers unfortunately don't do so in an effort to provide a longer power good signal, which has the PSU send a power ok signal after the rails have dropped below the ATX specification's thresholds.

Inrush Current

Inrush current or switch-on surge refers to the maximum, instantaneous input-current drawn by an electrical device when it is first turned on. Because of the charging current of the APFC capacitor(s), PSUs produce large inrush-current right as they are turned on. Large inrush current can cause the tripping of circuit breakers and fuses and may also damage switches, relays, and bridge rectifiers; as a result, the lower the inrush current of a PSU right as it is turned on, the better.



Inrush current is a bit higher than normal. A larger NTC thermistor and a bypass relay would help lower inrush current.

Load Regulation and Efficiency Measurements

The first set of tests revealed the stability of the voltage rails and the LXX600's efficiency. The applied load was equal to (approximately) 10%-110% of the maximum load the PSU can handle, in 10% steps.

We conducted two additional tests. In the first test, we stressed the two minor rails (5V and 3.3V) with a high load while the load at +12V was only 0.10 A. This test reveals whether the PSU is Haswell ready or not. In the second test, we dialed in the maximum load the +12V rail can handle while the load on the minor rails is minimal.

Load regulation at +12V is kept within 2%, which is a pretty good result for this budget-centric category. Load regulation is mediocre on the minor rails, though, since it deviated by more than 4% in all of these tests. Efficiency is nothing to write home about since this is only a Bronze-certified unit, so we can't expect much, even with 230VAC input.

The HDB fan this PSU comes with managed to keep noise output low in the first three load tests; it doesn't exceed 40 dB(A) at up to 50% load. With the fan spinning at full speed, our noise analyzer reported 41.2 dB(A), which is low enough for a 120mm diameter fan inside a 40 °C rated PSU.
