WD Blue SN580 1 TB Review - Incredible Price/Performance
Test Setup »Packaging
The Drive
The drive is designed for the M.2 2280 form factor, which makes it 22 mm wide and 80 mm long.
PCI-Express 4.0 x4 is used as the host interface to the rest of the system, which doubles the theoretical bandwidth compared to PCIe 3.0 x4.
Chip Component Analysis

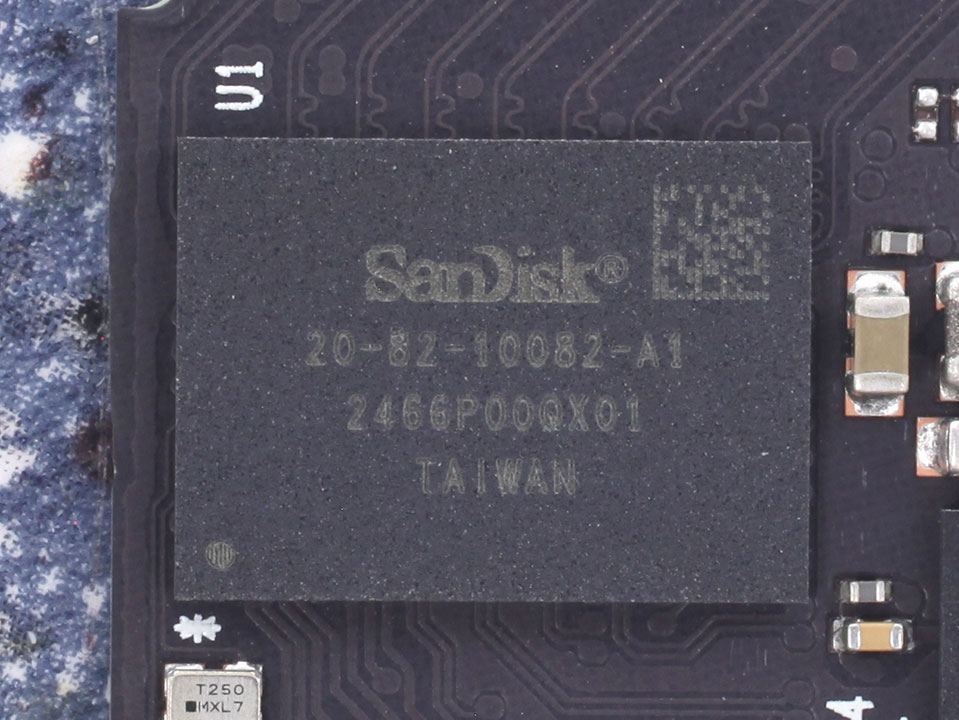

Almost nothing is known about this SanDisk 20-82-10082-A1 SSD controller. It is a four-channel design, which obviously supports TLC and DRAM-less operation.

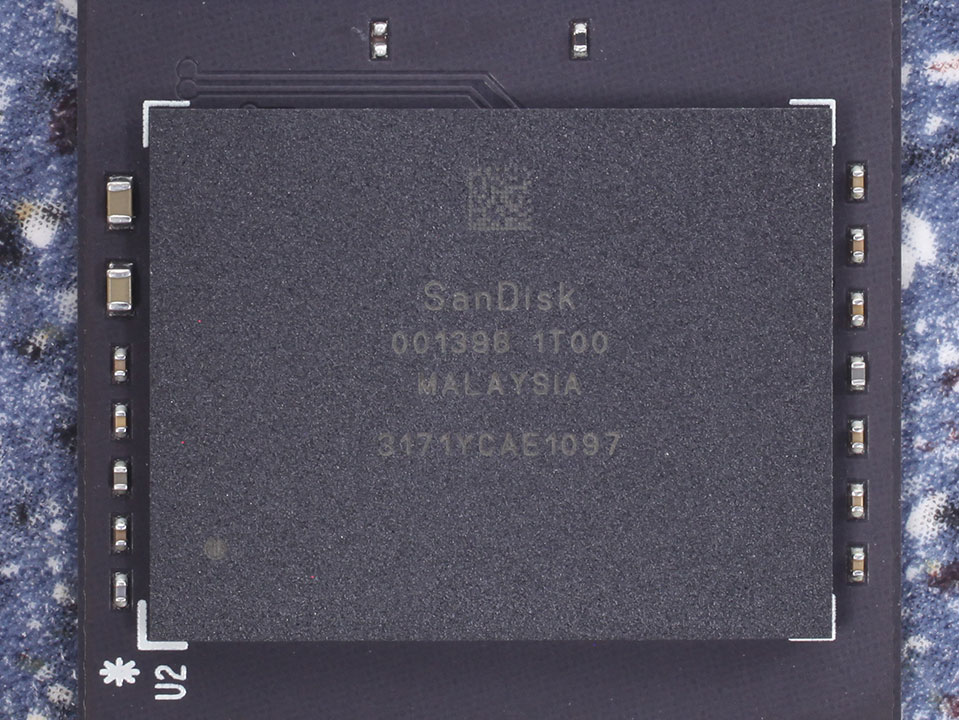

The single flash chip is Toshiba's BiCS5 112-layer TLC NAND with a capacity of 8 Tbit, or 1 TB.
