AMD Ryzen 7000X3D Processors Prone to Physical Damage with Voltage-assisted Overclocking, Motherboard Vendors Rush BIOS Updates with Voltage Limiters
AMD Ryzen 7000X3D processors are prone to irreversible physical damage if CPU overclocking is attempted at some of the higher VDDCR voltages (the main power domain for the CPU cores). A Redditor who goes by Speedrookie, attempted to overclock their Ryzen 7 7800X3D, leading to an irreversible failure. The motherboard socket and the processor's land-grid contacts, show signs of overheating damage caused by the contacts melting from too much current draw.
A Ryzen 7000X3D processor features a special CPU complex die (CCD) with stacked 3D Vertical Cache memory. This cache die is located in the central region over the CCD where its 32 MB on-die L3 cache is located, while the difference in Z-height of the stacked die is filled up by structural silicon, which sit over the regions of the CCD with the 8 "Zen 4" CPU cores. It stands to reason that besides having an inferior thermal transfer setup to conventional "Zen 4" CCDs (without the 3DV cache), the CCD itself has a higher power-draw at any given clock-speed than a conventional CCD (since it's also powering the L3D). This is the main reason why overclocking capabilities on the 7000X3D processors are almost non-existent, and the processor's power limits are generally lower than their regular Ryzen 7000X counterparts. Attempting to dial up voltage kicks up the perfect storm for these processors.
Igor's Lab posted a detailed analysis of the region of the Socket AM5 land-grid most susceptible to a burn-out in the above scenario. The central region of the LGA has 93 pins dedicated to the VDDCR power domain, dispersed in a mostly checkered pattern, toward the center of the land-grid. Igor isolated 6 of these VDDCR pins in particular, which are most prone to physical damage, as they are located in a region below the CCD that sees it sandwiched between the L3D (stacked 3D Vertical cache die), and the fiberglass substrate below. Apparently, AMD's thermal and electrical protection mechanisms aren't able to prevent a runaway overheating of the pins that causes the substrate to melt, deform, and bulge outward, resulting in irreversible damage to both the processor and the socket.
Meanwhile, AMD's motherboard partners are rushing to release UEFI BIOS updates for their entire lineups of motherboards, which enforce tighter limits on the VDDCR voltage. MSI is the first motherboard manufacturer with such updates. MSI, in a press statement, stated that it has redesigned automated overclocking for 7000X3D processors. "The BIOS now only supports negative offset voltage settings, which can reduce the CPU voltage only," the MSI statement to Tom's Hardware reads. "MSI Center also restricts any direct voltage and frequency adjustments, ensuring that the CPU won't be damaged due to over-voltage." On the other hand, the update introduces an automated overclocking feature called Enhanced Mode Boost, which optimizes PBO settings to improve boost frequency residency, without any manual voltage adjustments.
Sources:
Tom's Hardware 1, 2, Igor's Lab, Speedrookie (Reddit)
A Ryzen 7000X3D processor features a special CPU complex die (CCD) with stacked 3D Vertical Cache memory. This cache die is located in the central region over the CCD where its 32 MB on-die L3 cache is located, while the difference in Z-height of the stacked die is filled up by structural silicon, which sit over the regions of the CCD with the 8 "Zen 4" CPU cores. It stands to reason that besides having an inferior thermal transfer setup to conventional "Zen 4" CCDs (without the 3DV cache), the CCD itself has a higher power-draw at any given clock-speed than a conventional CCD (since it's also powering the L3D). This is the main reason why overclocking capabilities on the 7000X3D processors are almost non-existent, and the processor's power limits are generally lower than their regular Ryzen 7000X counterparts. Attempting to dial up voltage kicks up the perfect storm for these processors.
Meanwhile, AMD's motherboard partners are rushing to release UEFI BIOS updates for their entire lineups of motherboards, which enforce tighter limits on the VDDCR voltage. MSI is the first motherboard manufacturer with such updates. MSI, in a press statement, stated that it has redesigned automated overclocking for 7000X3D processors. "The BIOS now only supports negative offset voltage settings, which can reduce the CPU voltage only," the MSI statement to Tom's Hardware reads. "MSI Center also restricts any direct voltage and frequency adjustments, ensuring that the CPU won't be damaged due to over-voltage." On the other hand, the update introduces an automated overclocking feature called Enhanced Mode Boost, which optimizes PBO settings to improve boost frequency residency, without any manual voltage adjustments.
258 Comments on AMD Ryzen 7000X3D Processors Prone to Physical Damage with Voltage-assisted Overclocking, Motherboard Vendors Rush BIOS Updates with Voltage Limiters
This is dispite many extra fancy PR protection capabilities that this spacific mobo hac. That`s way the mobo was damaged as well, not just the CPU.
- Gigabyte mobo was able to stop the above as to not damage the CPU socket (as oppose to the Asus board). The CPU was still killed.
- It is not directly EXPO related, but turning EXPO on is one way of triggeingr of the CPU Suicide.
- The CPU death probabilityIt is very much silicon loterry depended- on weak silicon the probability is much higher. In the short term stronger silicon can cope with the too high voltage being feed but may give up at some point in the futere. Talk about 'slow cooking' of the CPU.
- Verious bugs (will be an additional video on that) in the bios were discoverd and wrong\un-related output of voltage is measured, above what is displayed and set in the bios screen.
- All in all, a rare case that coming from mix neglectance of both AMD and vendors.
- Do keep on choosing ZEN4 if it`s the right product for you, but Do double check and be yourself in control\monitoring over voltages.
- More tests are coming with in-depth insights.
- AMD RMA any CPU case, even if EXPO was applay. Mobo vendors RMA- yet to be seen...
My take- a cluster of many small things coming together to a catastrophic error. Like in Airplane investigation you see in National Geographic. This is the hidden cost of a new platform and with AM5 it appers there still a lot to irone out. Unless you are into some adventures, wait to ZEN5 if you can. ZEN4 is still a work in progress and I suspect more weird cases will show up as the root couse of the problem still hasent attended- capping the voltage is the easy immidiate (panic if you will) solustion.
7000X6D? Wow! o_O

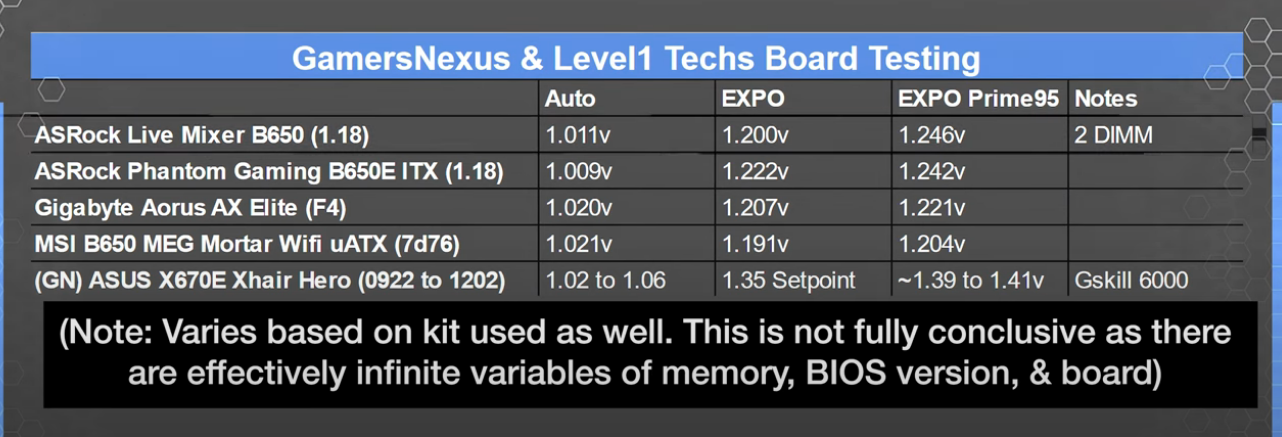

Right... I've just updated my BIOS to version 1.82 whith the voltage limiter. Everything is exactly as it was before, 1.2 VSoC with EXPO, but my idle power consumption went from 20-22 W to 24-25 W and my idle CPU temp rose by about 5-6 °C, and I can't figure out why. So far, I'm not happy.
