Monday, August 21st 2023
NVIDIA BIOS Signature Lock Broken, vBIOS Modding and Crossflash Enabled by Groundbreaking New Tools
You can now play with NVIDIA GeForce graphics card BIOS like it's 2013! Over the last decade, NVIDIA had effectively killed video BIOS modding by introducing BIOS signature checks. With GeForce 900-series "Maxwell," the company added an on-die security processor on all its GPUs, codenamed "Falcon," which among other things, prevents the GPU from booting with unauthorized firmware. OMGVflash by Veii; and NVflashk by Kefinator (forum names), are two independently developed new tools that let you flash almost any video BIOS onto almost any NVIDIA GeForce graphics card, bypassing "unbreakable" barriers NVIDIA put in place, such as BIOS signature checks; and vendor/device checks (cross-flashing). vBIOS signature check bypass works up to RTX 20-series "Turing" based GPUs, letting you modify the BIOS the way you want, while cross-flashing (sub-vendor ID check bypass) works even on the latest RTX 4090 "Ada."
The tools bring back the glory days of video BIOS modding using utilities the likes of NiBiTor (now discontinued). The possibilities of such utilities are endless. You can, for example, flash the BIOS of a premium factory-overclocked graphics card onto your close-to-MSRP graphics card. For cards up to RTX 20-series "Turing," in addition to clock speeds, BIOS modding lets you raise power limits, which have a more profound impact on performance, as they increase boost frequency residency. BIOS modding also gives you control over the graphics card's voltages, cooling performance, and fan-curve, so you can make your card quieter, as long as your cooler can keep the GPU away from thermal limits (which you can adjust, too). With cross-flashing (without modifying the BIOS or disturbing its signature), you are now able to restore a voltage of 1.1 V on your RTX 4090 GPU, if you've got one of the newer models, which ticks at 1.07 V only. You could also flash your FE with a custom-design vBIOS with high power limit, to go beyond NVIDIA's power limits.
OMGVflash author Veii posted a comprehensive thread on the TechPowerUp Forums, which announces the first public beta of the tool, its development history, usage instructions, and some troubleshooting support. Find the thread here. The author has expressed interest in working with TechPowerUp on publishing future versions.
NVflashk author Kefi posted a similar comprehensive thread on TechPowerUp Forums, which can be accessed here.
OMGVflash and NVflashk are independently developed of each other. We've hand-inspected the binary code of both tools and they are free of any viruses or trojans. There's only few code modifications to the original NVFlash tool, to activate the bypass. There's no additional malware payload or anything similar. The file sizes are identical to the unmodified files. VirusTotal also confirms that these patches are legit.
Tampering with the vBIOS will void your graphics card's warranty. As with all modding, graphics card BIOS modding is not without risk, and meant for power users. It is fairly easy to recover from a broken flash, as all current desktop processors come with iGPUs that you can boot from, so you could flash a working BIOS onto the bricked graphics card. Just do remember to back-up your BIOS. You can use either of these tools to extract your current BIOS, or better yet, use GPU-Z for the task.
TechPowerUp editor and author of GPU-Z, W1zzard, will be answering all your questions in the comments section of this post. He has extensive experience with vBIOS internals from his worth with GPU-Z and he has also developed a parser that decodes, processes and organizes the ROM files in our TechPowerUp GPU BIOS Database.
Update 16:44 UTC: Kefi is currently working on a GUI version that makes it easy to backup and flash the BIOS. You can also search our BIOS Collection from within the app and filter on various properties.
Sources:
OMGVflash by Veii, NVflashk by Kefi
The tools bring back the glory days of video BIOS modding using utilities the likes of NiBiTor (now discontinued). The possibilities of such utilities are endless. You can, for example, flash the BIOS of a premium factory-overclocked graphics card onto your close-to-MSRP graphics card. For cards up to RTX 20-series "Turing," in addition to clock speeds, BIOS modding lets you raise power limits, which have a more profound impact on performance, as they increase boost frequency residency. BIOS modding also gives you control over the graphics card's voltages, cooling performance, and fan-curve, so you can make your card quieter, as long as your cooler can keep the GPU away from thermal limits (which you can adjust, too). With cross-flashing (without modifying the BIOS or disturbing its signature), you are now able to restore a voltage of 1.1 V on your RTX 4090 GPU, if you've got one of the newer models, which ticks at 1.07 V only. You could also flash your FE with a custom-design vBIOS with high power limit, to go beyond NVIDIA's power limits.
NVflashk author Kefi posted a similar comprehensive thread on TechPowerUp Forums, which can be accessed here.
OMGVflash and NVflashk are independently developed of each other. We've hand-inspected the binary code of both tools and they are free of any viruses or trojans. There's only few code modifications to the original NVFlash tool, to activate the bypass. There's no additional malware payload or anything similar. The file sizes are identical to the unmodified files. VirusTotal also confirms that these patches are legit.
Tampering with the vBIOS will void your graphics card's warranty. As with all modding, graphics card BIOS modding is not without risk, and meant for power users. It is fairly easy to recover from a broken flash, as all current desktop processors come with iGPUs that you can boot from, so you could flash a working BIOS onto the bricked graphics card. Just do remember to back-up your BIOS. You can use either of these tools to extract your current BIOS, or better yet, use GPU-Z for the task.
TechPowerUp editor and author of GPU-Z, W1zzard, will be answering all your questions in the comments section of this post. He has extensive experience with vBIOS internals from his worth with GPU-Z and he has also developed a parser that decodes, processes and organizes the ROM files in our TechPowerUp GPU BIOS Database.
Update 16:44 UTC: Kefi is currently working on a GUI version that makes it easy to backup and flash the BIOS. You can also search our BIOS Collection from within the app and filter on various properties.
210 Comments on NVIDIA BIOS Signature Lock Broken, vBIOS Modding and Crossflash Enabled by Groundbreaking New Tools
For your exemple between DLSS 2.x and 1.x, it's not about hardware at all. It's just that DLSS 1.x was a spacial upscaler (like FSR 1.x) and DLSS 2.x is a temporal upscaler. For DLSS 3.0 and Ampere, the main problem is not the hardware support, but how quickly the hardware can do it. My understanding is Ampere tensors cores are not fast enough to perform both DLSS upscaling + Frame generation. There would be no benefits to run DLSS3 if it doesn't actually increase your framerate.
I suppose i could still set a software limit of 88c like it is currently. Naturally the voltage itself would be the limiting factor way before power consumption or even temp becomes an issue.
I was laughed at as insane person when is suggested translating Direct3D calls ten years ago. An now we have DXVK, Proton, CrossOver etc.
RED BIOS EDITOR and MorePowerTool for Polaris, Navi and Big Navi | igor´sLAB (igorslab.de)
And they work up to RDNA2 but not RDNA 3 which currently doesn't have any tools that work.
Except that it is not 2013, even in the slightest, and instead of guiding the users to try to brick their cards at their own responsibility and risk, maybe it's better to reanalyse the pricing structure and offer some very deep discounts.
Current nvidia lineup:
RTX 4090 24GB: 1600 - 3772 - sky is the limit
RTX 4080 16GB: 1100 - 2310 - sky is the limit
RTX 4070 Ti 12GB: 800 - 1600 - sky is the limit
RTX 4070 12GB: 600 - 1265 - sky is the limit
RTX 4060 Ti 16GB: 500 - 625 - sky is the limit
RTX 4060 Ti 8GB: 390 - 600
RTX 4060 8GB: 290 - 392
Lower limit is the cheapest available model, the higher limit is the most expensive available model at time of writing. Source: newegg.
This is sooooo awesome! I can't wait to see what interesting new programs and mods develop from this.Just flash the highest power limit vbios available for the 4070. Typically Galax and Asus have them. I use Galax 666w vbios on my MSI 4090 since December 2022 with no issues.

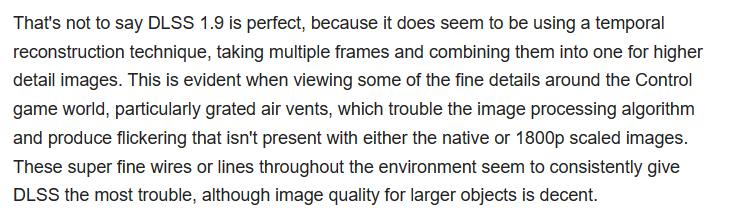

Nvidia DLSS in 2020: Stunning Results | TechSpot
