TSMC Unveils Next-Generation HBM4 Base Dies, Built on 12 nm and 5 nm Nodes
During the European Technology Symposium 2024, TSMC has announced its readiness to manufacture next-generation HBM4 base dies using both 12 nm and 5 nm nodes. This significant development is expected to substantially improve the performance, power consumption, and logic density of HBM4 memory, catering to the demands of high-performance computing (HPC) and artificial intelligence (AI) applications. The shift from a traditional 1024-bit interface to an ultra-wide 2048-bit interface is a key aspect of the new HBM4 standard. This change will enable the integration of more logic and higher performance while reducing power consumption. TSMC's N12FFC+ and N5 processes will be used to produce these base dies, with the N12FFC+ process offering a cost-effective solution for achieving HBM4 performance and the N5 process providing even more logic and lower power consumption at HBM4 speeds.
The company is collaborating with major HBM memory partners, including Micron, Samsung, and SK Hynix, to integrate advanced nodes for HBM4 full-stack integration. TSMC's base die, fabricated using the N12FFC+ process, will be used to install HBM4 memory stacks on a silicon interposer alongside system-on-chips (SoCs). This setup will enable the creation of 12-Hi (48 GB) and 16-Hi (64 GB) stacks with per-stack bandwidth exceeding 2 TB/s. TSMC's collaboration with EDA partners like Cadence, Synopsys, and Ansys ensures the integrity of HBM4 channel signals, thermal accuracy, and electromagnetic interference (EMI) in the new HBM4 base dies. TSMC is also optimizing CoWoS-L and CoWoS-R for HBM4 integration, meaning that massive high-performance chips are already utilizing this technology and getting ready for volume manufacturing.
Source:
AnandTech
The company is collaborating with major HBM memory partners, including Micron, Samsung, and SK Hynix, to integrate advanced nodes for HBM4 full-stack integration. TSMC's base die, fabricated using the N12FFC+ process, will be used to install HBM4 memory stacks on a silicon interposer alongside system-on-chips (SoCs). This setup will enable the creation of 12-Hi (48 GB) and 16-Hi (64 GB) stacks with per-stack bandwidth exceeding 2 TB/s. TSMC's collaboration with EDA partners like Cadence, Synopsys, and Ansys ensures the integrity of HBM4 channel signals, thermal accuracy, and electromagnetic interference (EMI) in the new HBM4 base dies. TSMC is also optimizing CoWoS-L and CoWoS-R for HBM4 integration, meaning that massive high-performance chips are already utilizing this technology and getting ready for volume manufacturing.
13 Comments on TSMC Unveils Next-Generation HBM4 Base Dies, Built on 12 nm and 5 nm Nodes
Or is this old architecture about to change substantially? The guys at SemiEngineering have a thorough understanding of what they write about, and they say, "SK hynix said the collaboration will enable breakthroughs in memory performance with increased density of the memory controller at the base of the HBM stack."
It's a shame AI is eating up all the HBM, can you imagine what that new Strix Halo APU would be capable of with 16GB of HBM on package?
And if a GPU is rated for over 150W of power, what do you keep left for the CPU? Your starting to get into absurd cooling territory here if it was just for an APU.
upcommons.upc.edu/bitstream/handle/2117/362010/HBM.pdf
HBM STRUCTURE AND FEATURES
Point B
I wonder then if they are going to move from the 1024bit interface to say 1536 or 2048 per die? This just means you can go >8 "stacks" per die is what SK Hynix was alluding to?

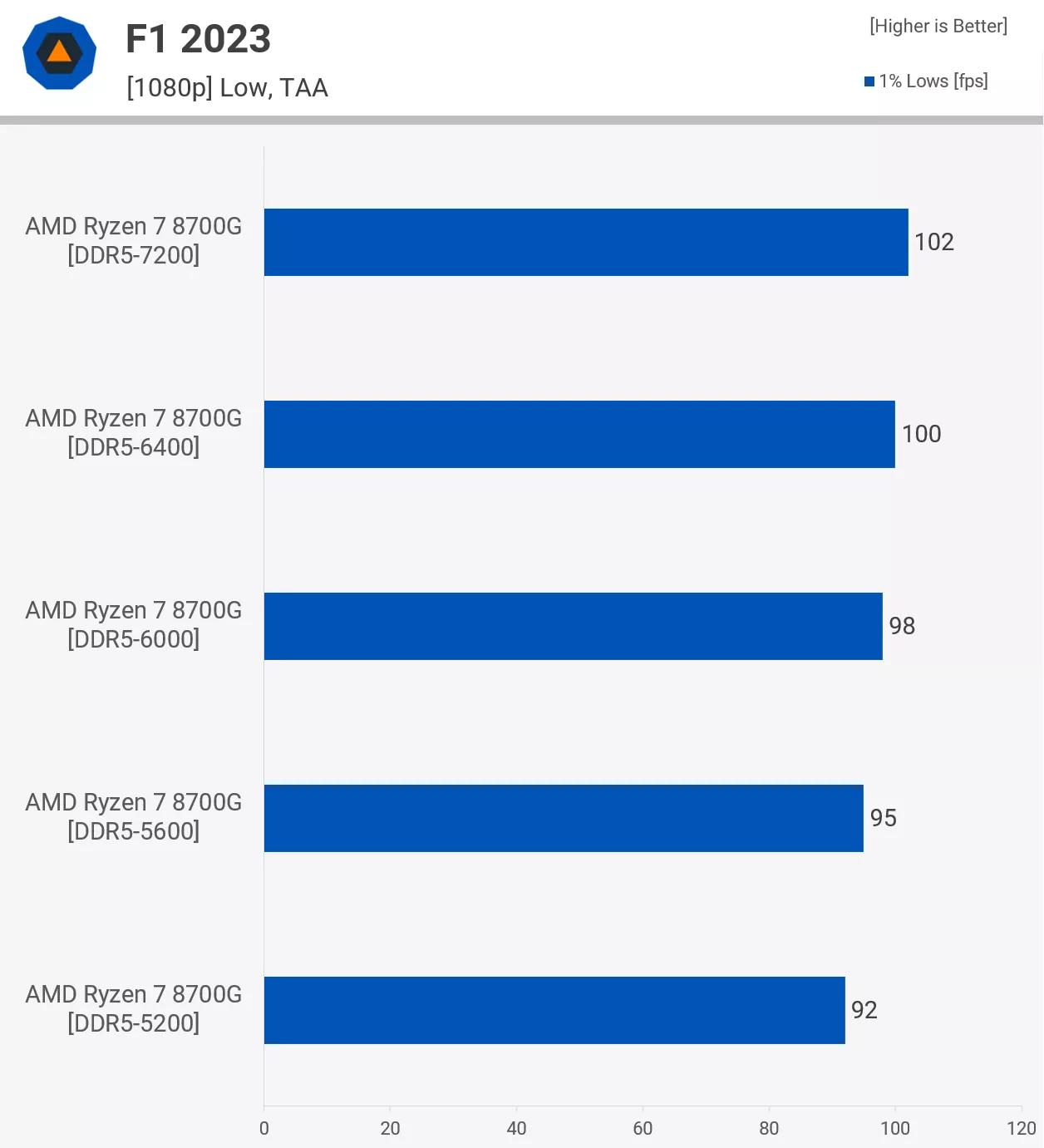

AMD's 8000g series seem to scale pretty linearly with memory bandwidth. I know HBM4 would be massive overkill for this but fast ram does help.
